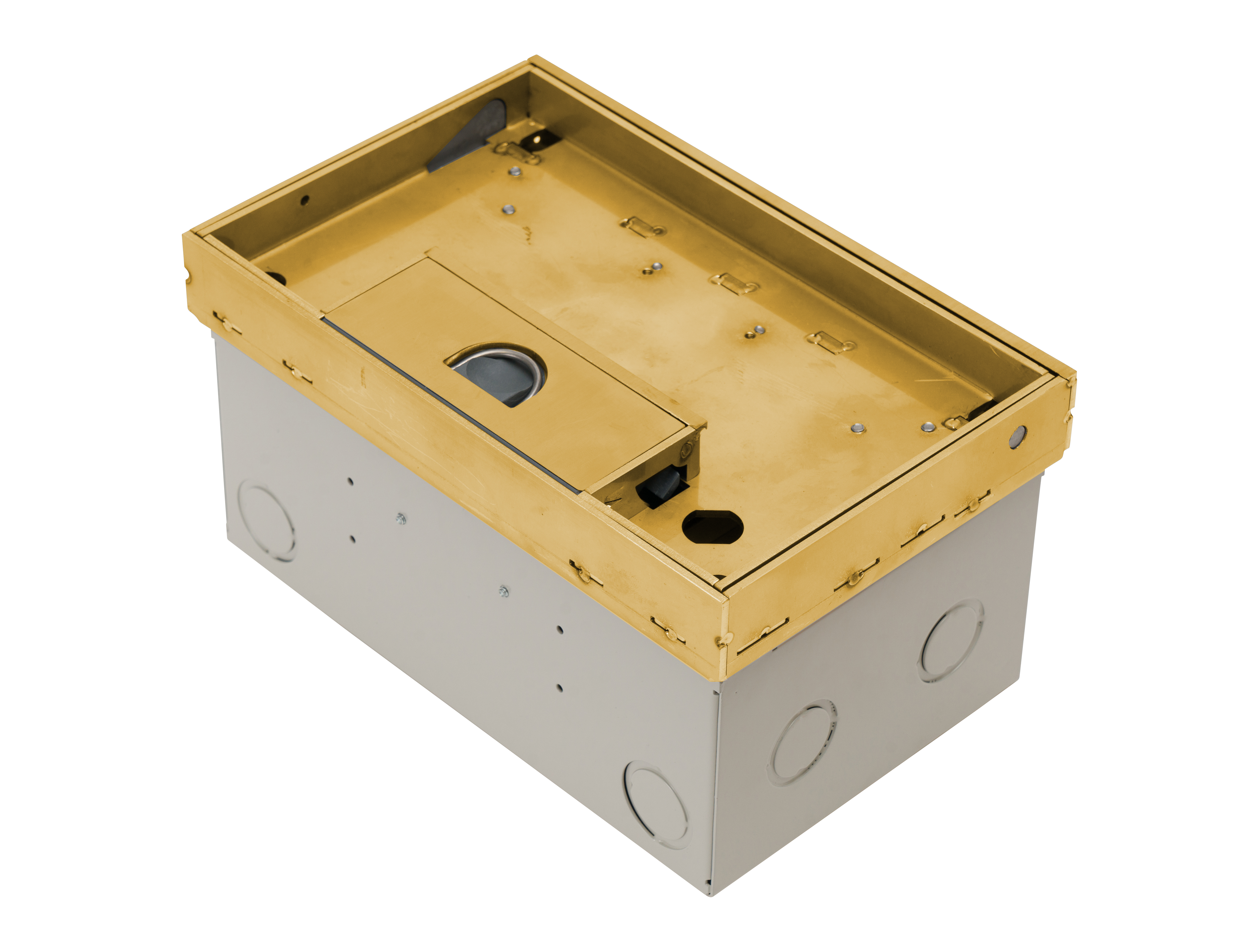

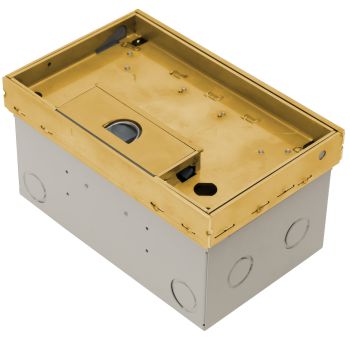

Flush Floor Box - Deep Recessed Brass



2 standard sized plates

Box Size:

250 x 160 x 133mm Deep

Lid Material:

Brass – No.4 Linished

Lid Recess

20mm Deep

Suitable for:

Cat6A and Cat7A Cabling

Key Features

  • Recessed Brass Lid and Frame with 20mm rebate for floor finish (typically polished timber boards or ceramic tiles).
  • Solid Brass lid construction with No. 4 Linished finish.

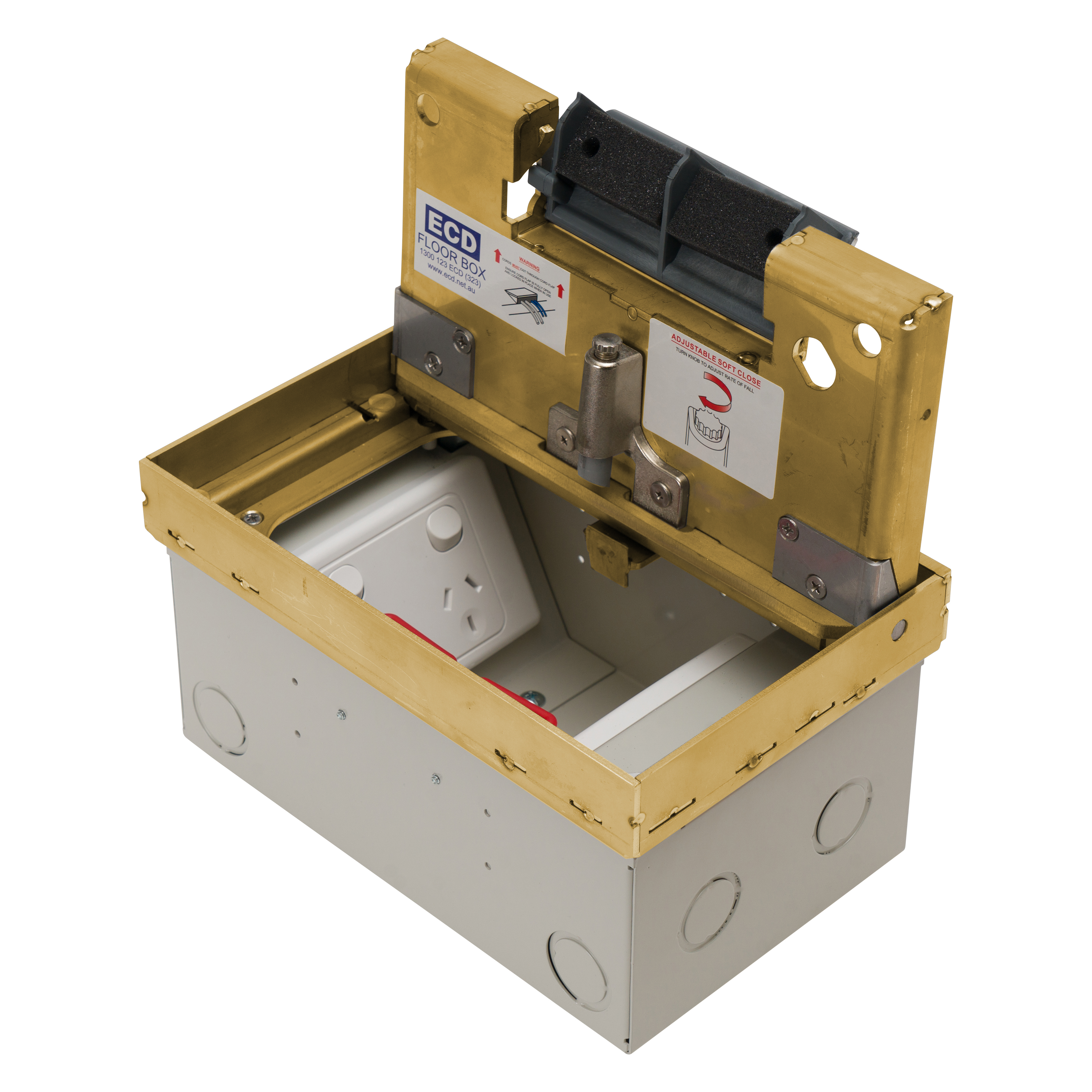

  • Adjustable Soft Closer to control lid closure – suits floor finish infills up to 2kg   (eg. timber packer & carpet, full timber, ceramic tile or stone).
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent              floor finish.
  • Height adjustable lid and frame.
  • Robust, large capacity cable exit flap with CableShield and brass lifting handle.
  • Option to fit cam lock if required.
  • Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.).
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
