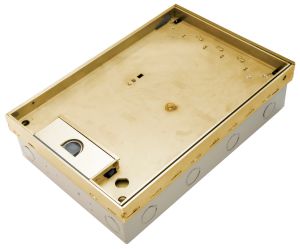

Flush Floor Box - Deep Recessed Brass

CAT NO. FB6BDR70

Capacity:

6 x single auto switched power outlets (supplied) and
8 x data mounts.

Box Size:

370 x 250 x 93mm Deep

Lid Material:

Brass – No.4 Linished

Lid Recess

20mm Deep

Suitable for:

Cat6A and Cat7A Cabling

Key Features

  • Recessed Brass Lid and Frame with 20mm rebate for floor finish (typically polished timber boards or ceramic tiles).
  • Solid Brass lid construction with No. 4 Linished finish.
  • Gas Strut Assistance to control lid closure – suits floor finish infills up to 1.2kg (eg. timber packer & carpet or full timber).
  • Additional Gas Strut kit available to suit heavier floor finish infills from 2kg (eg. ceramic tile) up to 5kg (eg. stone). Custom heavier Gas Strut kits available to order.
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
  • Height adjustable lid and frame.
  • Robust, large capacity cable exit flap with CableShield and brass lifting handle.
  • Option to fit cam lock if required.
  • Capacity for 6 x single auto switched power outlets (supplied) and 8 x data mounts.
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
