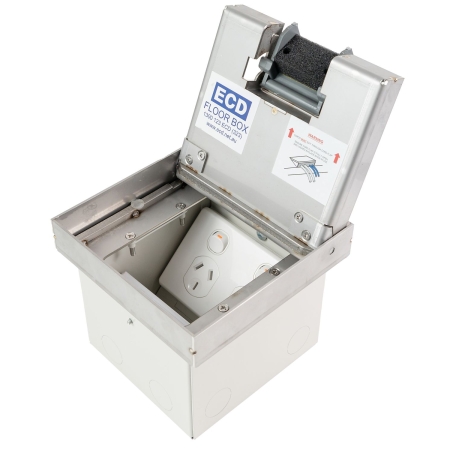

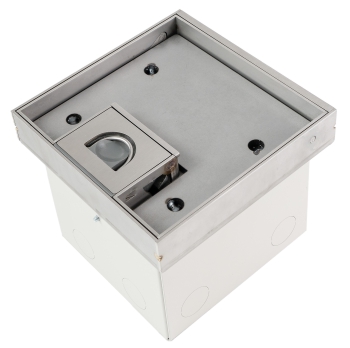

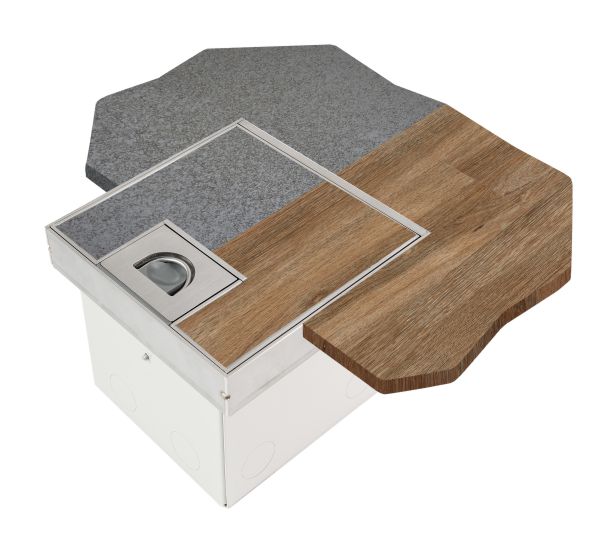

Stainless Steel Floor Box - Heavy Duty 12mm Deep Recess

CAT NO. FB1SDRHD

Capacity:

1 standard size GPO
1 No. 3 gang data plate

Box Size:

150 x 150 x 127mm deep

Lid Material:

Stainless steel

Lid Rebate:

12mm deep

Suitable for:

Heavy duty installations

Load Rating:

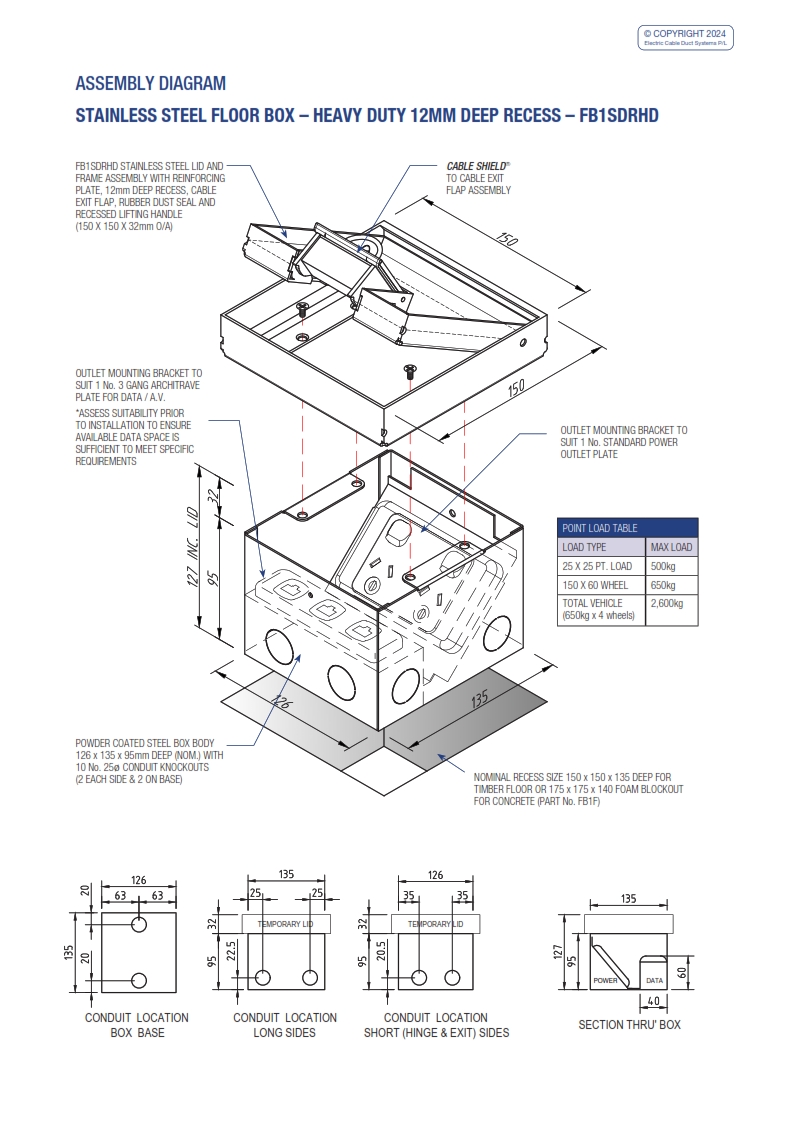

Suits vehicle traffic – refer chart on product PDF

Key Features

  • A versatile, practical and decorative solution for your open plan cabling needs.
  • Heavy duty – load rated floor box suitable for vehicular traffic.
  • Ideal for car showrooms and shopping centres.

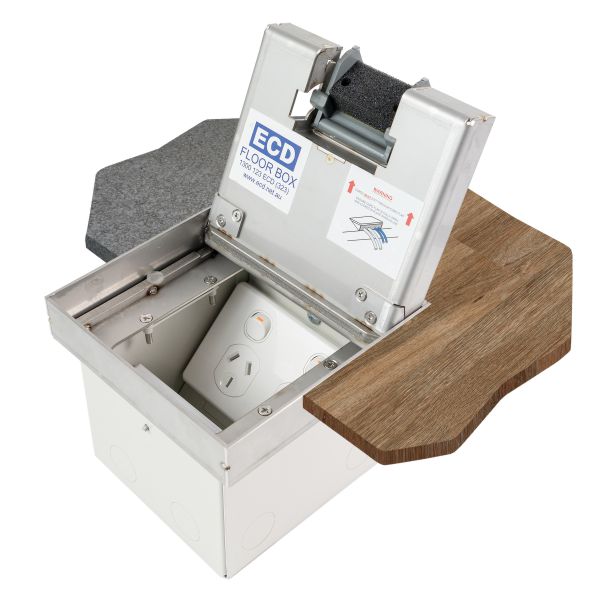

  • 12mm rebate for floor finish (typically timber boards or ceramic tiles).
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
  • 304 Grade solid stainless steel lid construction with No. 4 Linished finish.
  • Robust, large cable exit flap with Cable Shield® and stainless steel lifting handle.
  • Capacity 1 x standard double GPO and 3 x data (grid plate supplied).
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with AS 3000 and conforms to
    A.C.M.A. requirements.
