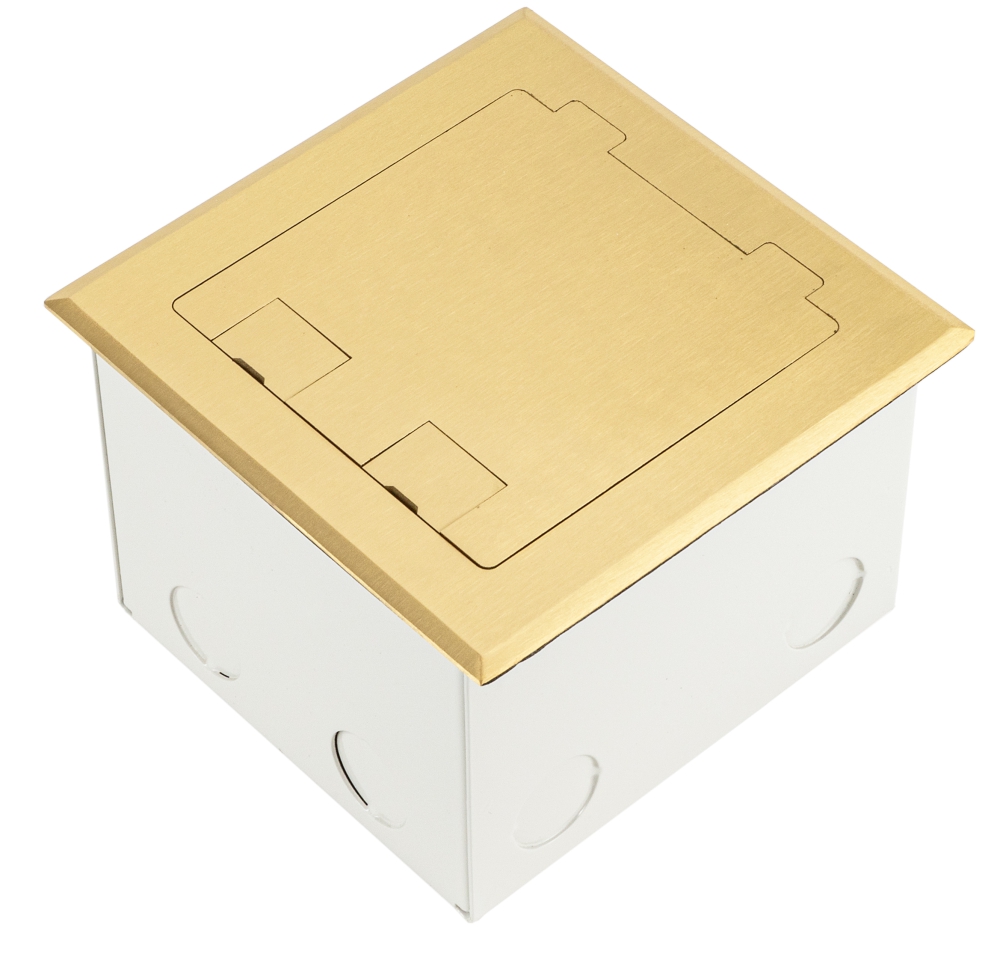

Brass Flush Floor Box



1x Standard sized GPO
1x No. 3 Gang Data Plate

Box Size:

135 x 126 x 95mm Deep

Lid Material:


Suitable for:

Compact Installations

Key Features

  • Compact and stylish, the FB147 Series of Flush Floor Boxes provide ready access to power and communication outlets recessed in the floor.
  • Suitable for use in: Modern open plan living areas, home theatres, showrooms, shopfront displays, boardroom tables, schools , universities and public buildings.
  •  Available in Brass, the hard wearing 145 x 145 mm lid bevels down to a fine edge under foot and is suitable for use with polished floor boards, carpet, ceramic tiles and vinyl floor coverings (not suitable for use in wet areas).
  • Capacity 1 x double GPO and 3 x Data (grid plate supplied).
  • Two small flaps allow cables out of the box when in use and close flat when not in use.
  • A versatile, practical and decorative solution to your open plan cabling needs.
  • This product has been examined in accordance with AS3000 and conforms to A.C.M.A. requirements.
