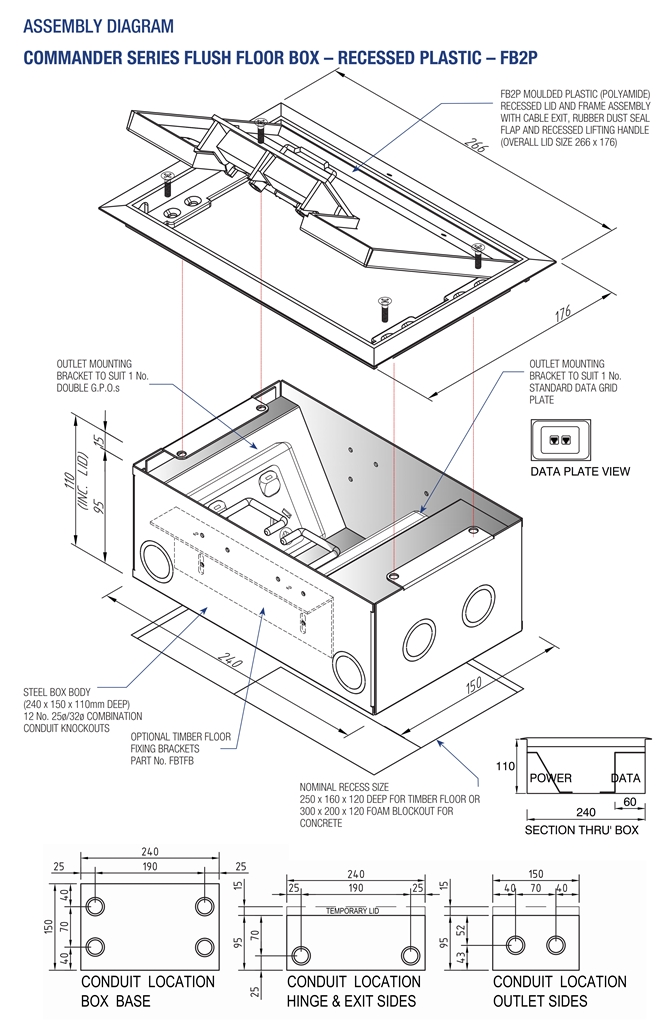

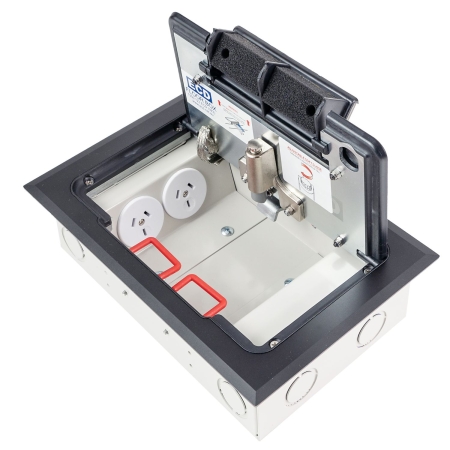

COMMANDER™ SERIES Flush Floor Box - Recessed Plastic



2 standard sized plates

Box Size:

240 x 150 x 110mm Deep

Lid Material:

Moulded Polyamide – Grey

Lid Recess:

7mm Deep

Suitable for:

Cat. 6A & 7A Cabling

Key Features

  • Moulded Polyamide Lid and Frame with 7mm rebate for floor finish (typically carpet or vinyl).
  • Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.).
  • Robust and large capacity cable exit flap with retracing lifting handle.
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Standard colour Grey (RAL 7011 – Iron Grey). Other colours available to order. (Minimum quantities & charges may apply)
  • Modular box body and lid design, interchangeable with stainless steel and other lids in the ECD floor box range.

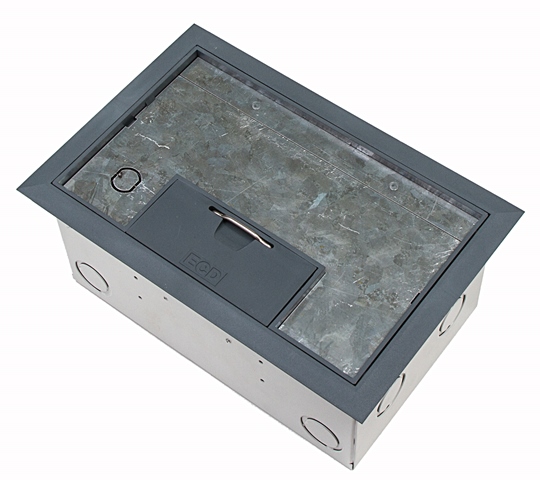

  • Supplied with temporary construction lid.
  • Option to fit cam lock if required.
