Brass Floor Box - Heavy Duty 12mm Deep Recess
CAT NO. FB1BDRHD
| Capacity: | 1 standard size GPO |
| Box Size: | 150 x 150 x 127mm Deep |
| Lid Material: | Brass |
| Lid Rebate: | 12mm Deep |
| Suitable for: | Heavy duty installations |
| Load Rating: | Suits vehicle traffic – refer chart on product PDF |
Key Features
- A versatile, practical and decorative solution to your open plan cabling needs.
- Heavy duty – load rated floor box suitable for vehicular traffic.
- Ideal for car showrooms and shopping centres.

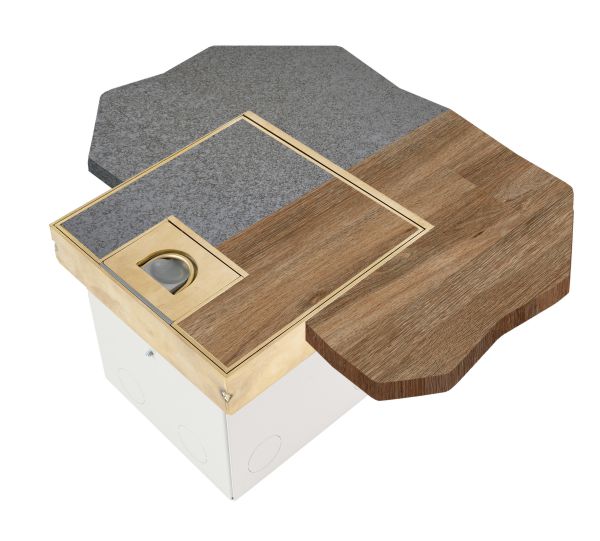

- 12mm rebate for floor finish (typically timber boards or ceramic tiles).
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
- Brass lid construction with No. 4 Linished finish.
- Robust, large cable exit flap with Cable Shield® and brass lifting handle.
- Capacity 1 x standard double GPO and 3 x data (grid plate supplied).
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- Supplied with temporary construction lid.
- This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
