CAT NO. AFD13018

Key Features

• Fully accessible floor duct system suitable for commercial, education
  and retail applications where chasing of trenches in the concrete floor
  is not possible or is cost prohibitive.
• Used for reticulation of cables/services to isolated locations within a room/space.
• Suited to flexible floor finishes like carpet.

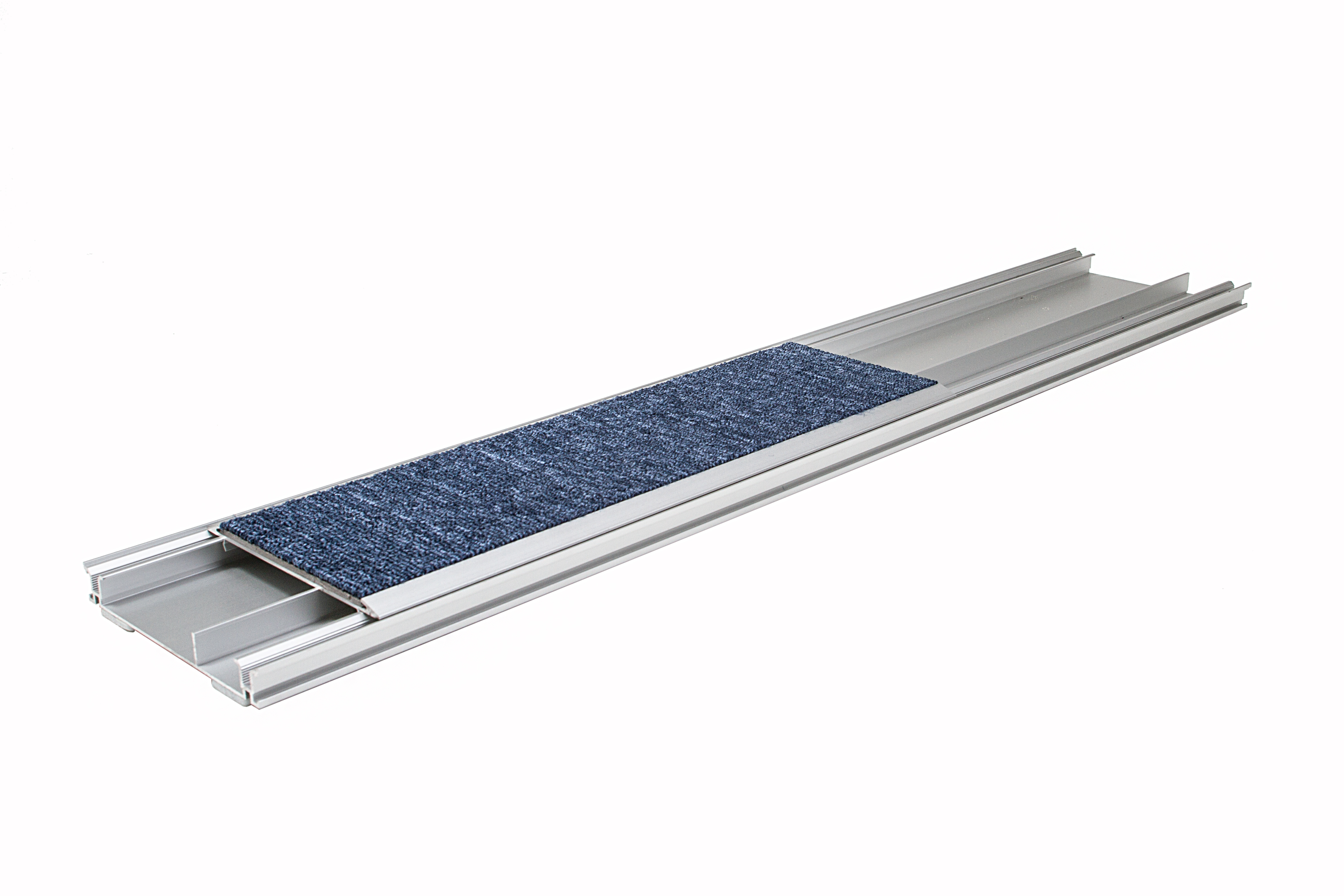

• Extruded aluminium duct body with clip on duct cover for easy cable access.
• Segregated to suit multiple services including power, data, comms,
  with offset barrier for greater data/comms capacity.
• Extruded aluminium duct covers are suitable for foot traffic.
• Flooring recess in lid for concealed installation, while still being able
  to identify duct position for easy access. Cover and recessed flooring
  are removed together.

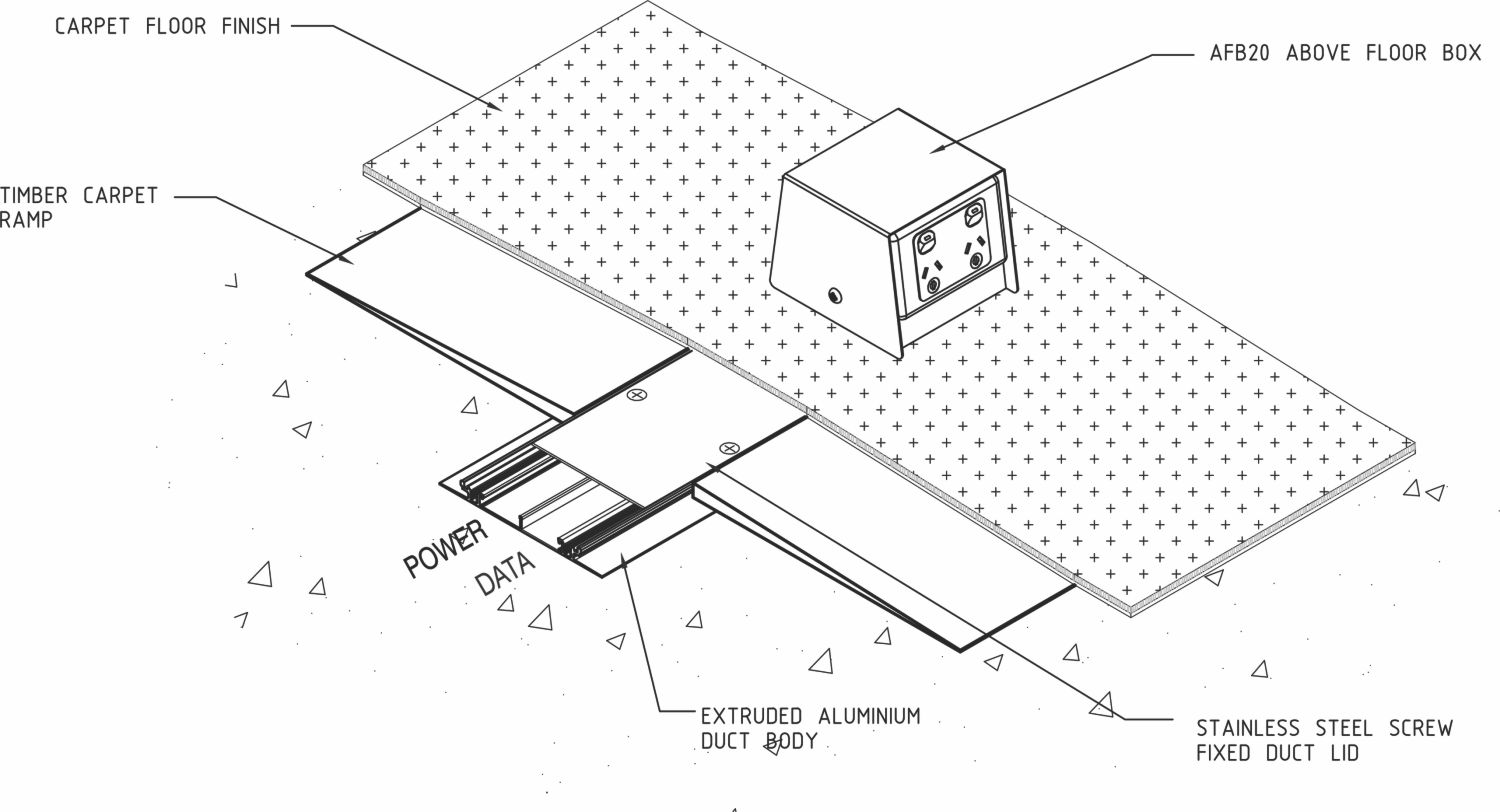

• Carpet ramps on each side of the duct can be covered with floor
  finish (eg- carpet) for a neat & concealed installation.
• Carpet ramp dimensions comply with AS/NZS1428.1 clause 10.5
  Threshold Ramps to provide ease of accessibility (wheelchairs, etc.).
• 90 degree bend kits available in left and right hand configurations to
  assist with easy on site installation.
• Wall and skirting kits available for easy transition of cables into the duct body.
• Compatible with a range of ECD standard surface mount floor boxes and Umbilicals.
• This product has been examined in accordance with AS3000 and A.C.M.A. requirements.
