CAT NO. AFD13018

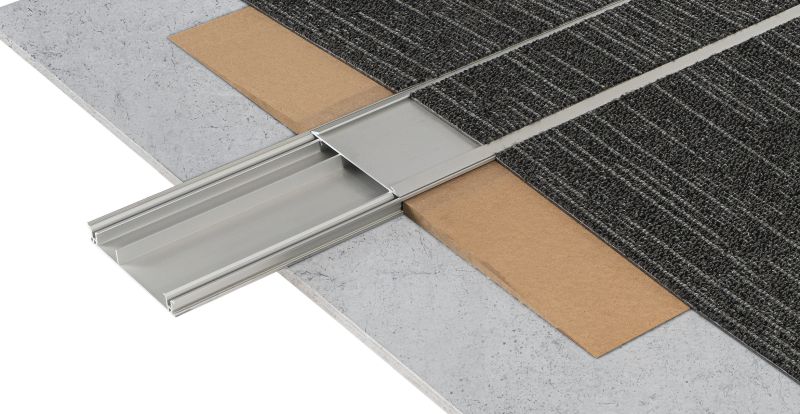

Semi concealed with carpet ramps

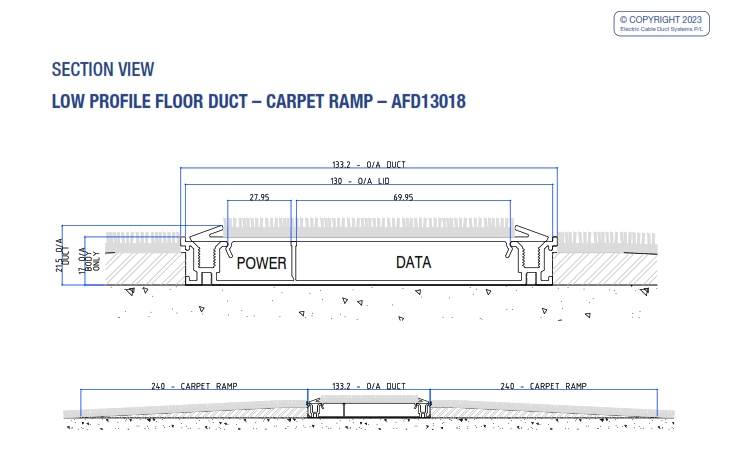

133 x 18 mm (excluding ramps)


2 division extruded aluminium


Clip on extruded aluminium
with flooring recess


Natural anodised also available in black powdercoat

Key Features

  • Fully accessible floor duct system suitable for commercial, education
    and retail applications where chasing of trenches in the concrete floor
    is not possible or is cost prohibitive.
  • Used for reticulation of cables/services to isolated locations within a room/space.
  • Suited to flexible floor finishes like carpet.
  • Extruded aluminium duct body with clip on duct cover for easy cable access.
  • Segregated to suit multiple services including power, data, comms,
    with offset barrier for greater data/comms capacity.
  • Extruded aluminium duct covers are suitable for foot traffic.
  • Flooring recess in lid for concealed installation, while still being able
    to identify duct position for easy access. Cover and recessed flooring
    are removed together.
  • Carpet ramps on each side of the duct can be covered with floor
    finish (eg- carpet) for a neat & concealed installation.
  • Carpet ramp dimensions comply with AS/NZS1428.1 clause 10.5
    Threshold Ramps to provide ease of accessibility (wheelchairs, etc.).

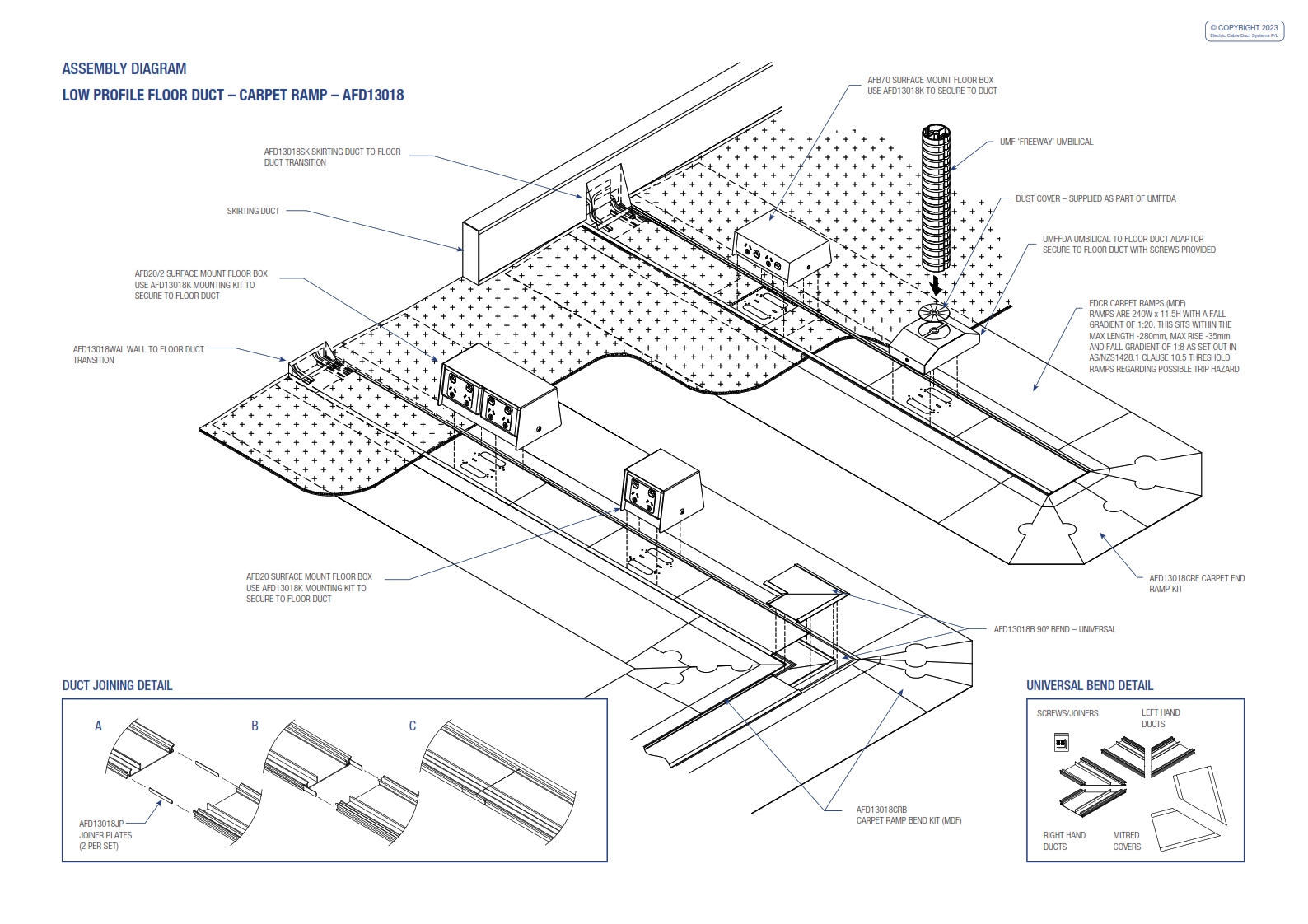

  • 90 degree bend kits available in left and right hand configurations to
    assist with easy on site installation.
  • Wall and skirting kits available for easy transition of cables into the duct body.
  • Compatible with a range of ECD standard surface mount floor boxes and Umbilicals.
  • This product has been examined in accordance with AS3000 and A.C.M.A. requirements.
