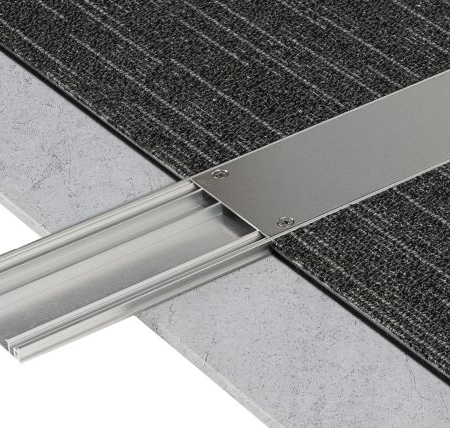

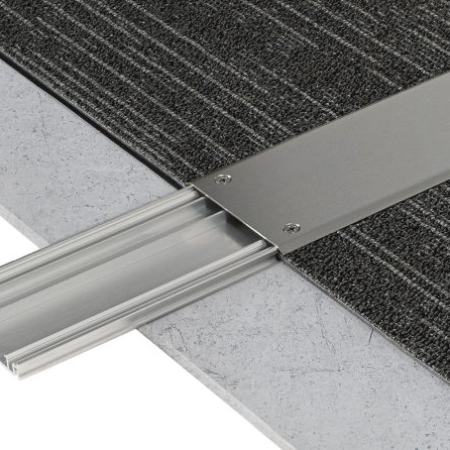

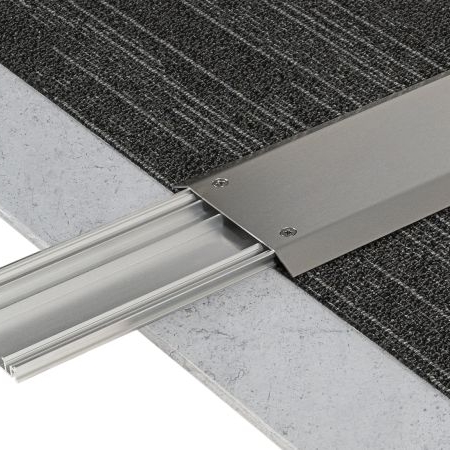

Ramped Floor Duct - Low Profile

CAT NO. FFD10012DCR

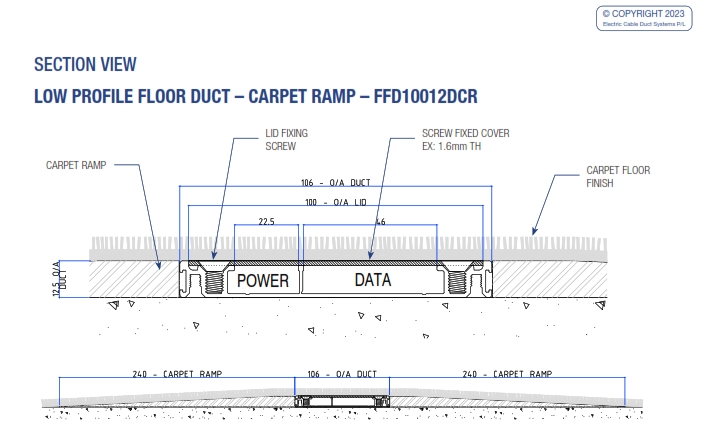

Size:

100 x 12mm, 3m Lengths

Outlets:

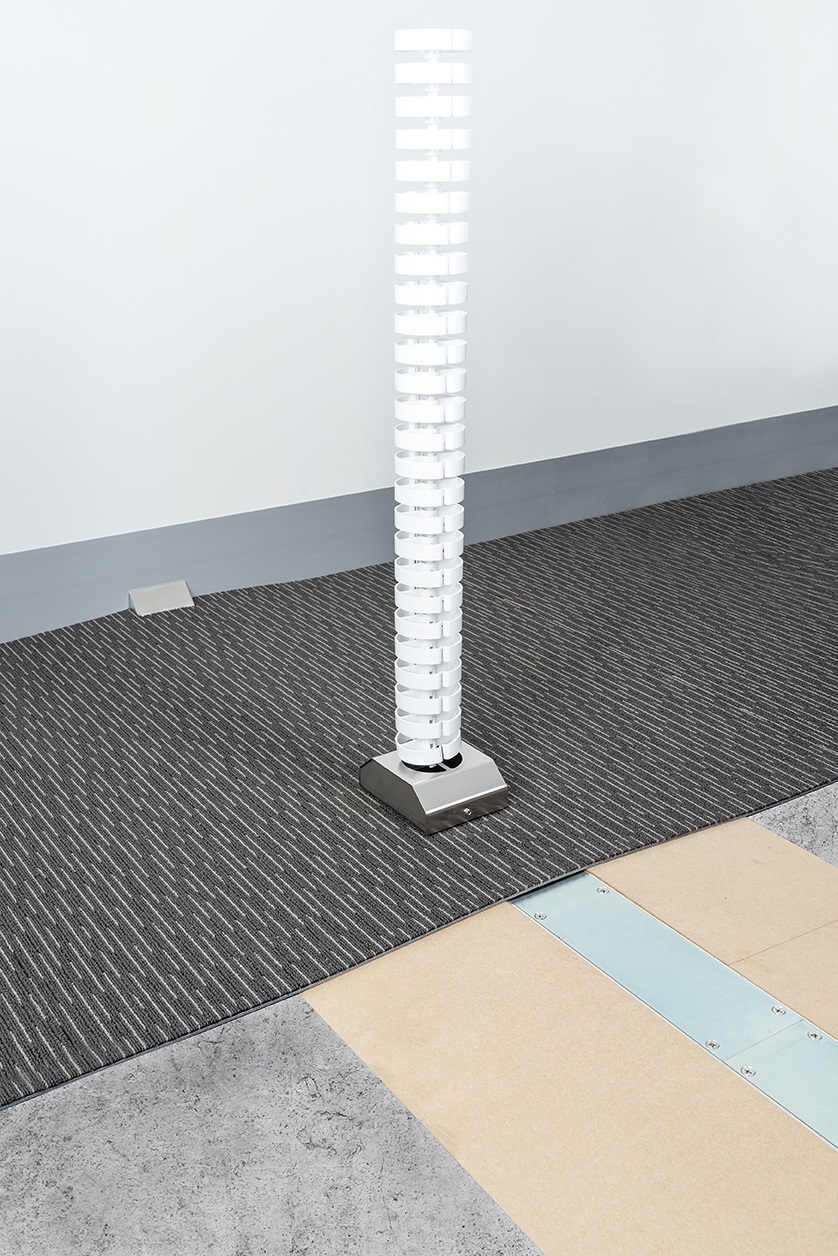

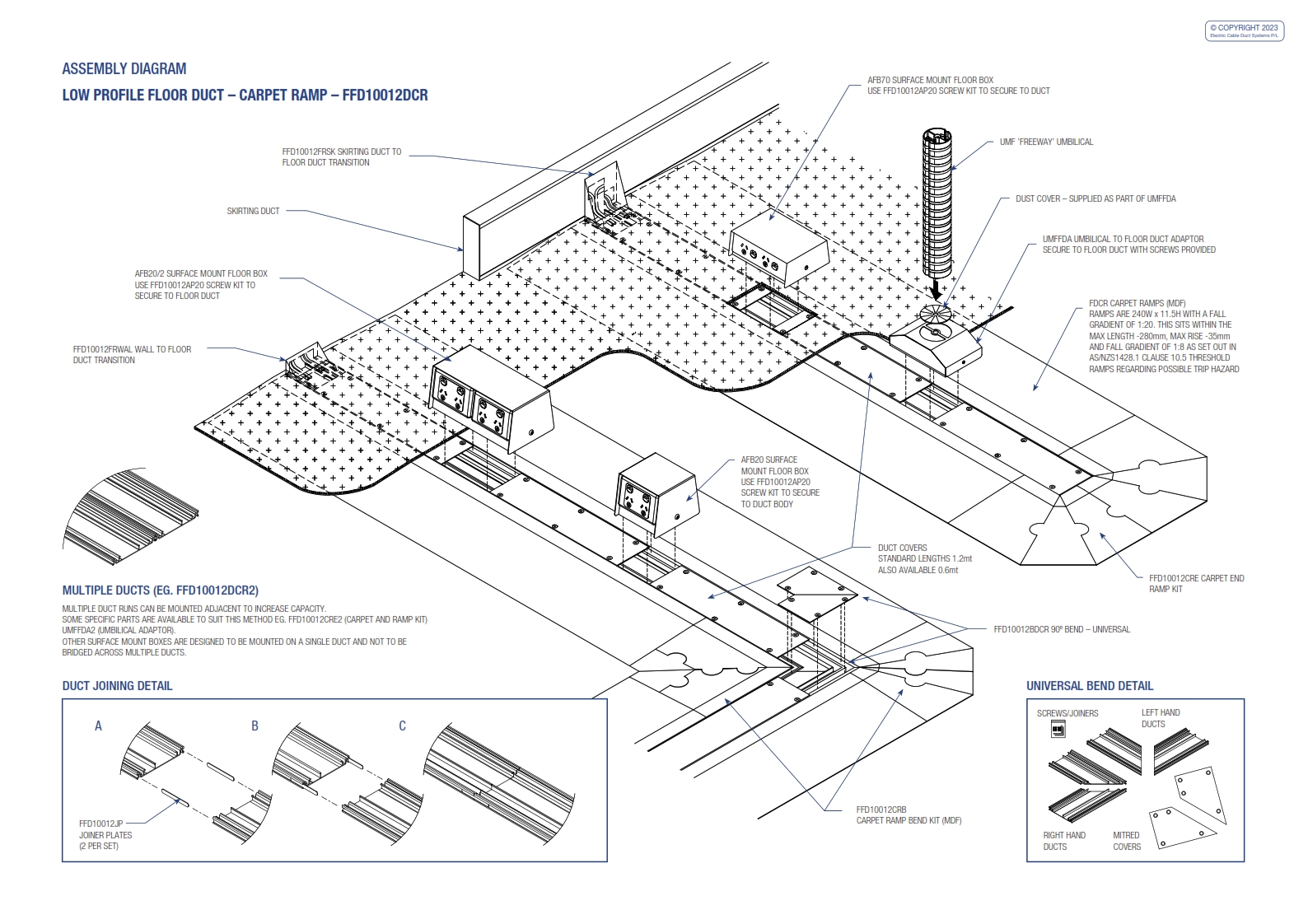

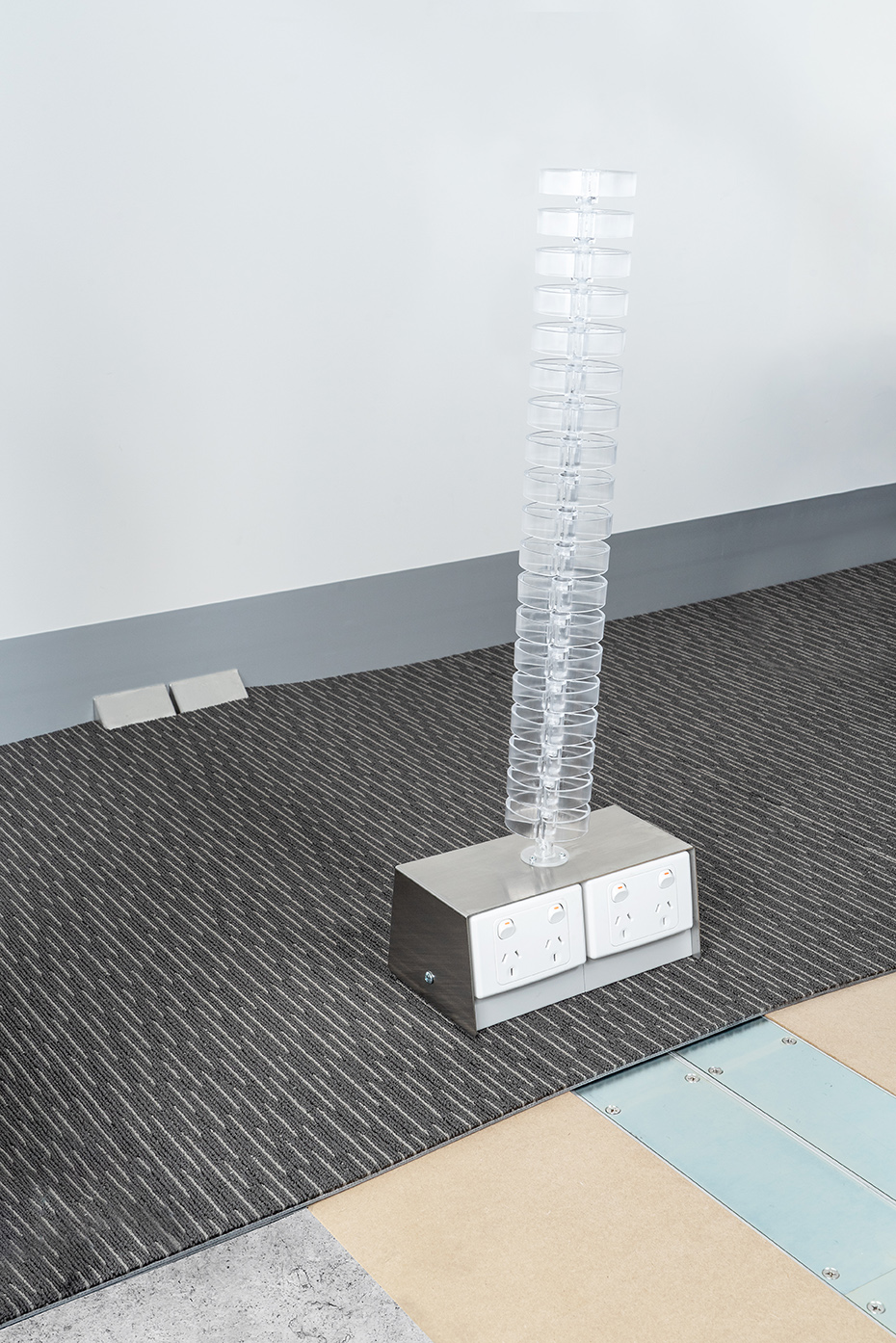

Above Floor boxes (AFB20, AFB20/2, AFB70) & Umbilical Adaptor Box ADUM

Capacity:

2x TPS, 5-6x Data

Body:

Extruded aluminium 3m Lgth

Cover:

Galvanised steel 1.2m Length

Key Features

Fully accessible system Flush floor duct suitable for commercial and retail applications where chasing of trenches in the floor is not possible.

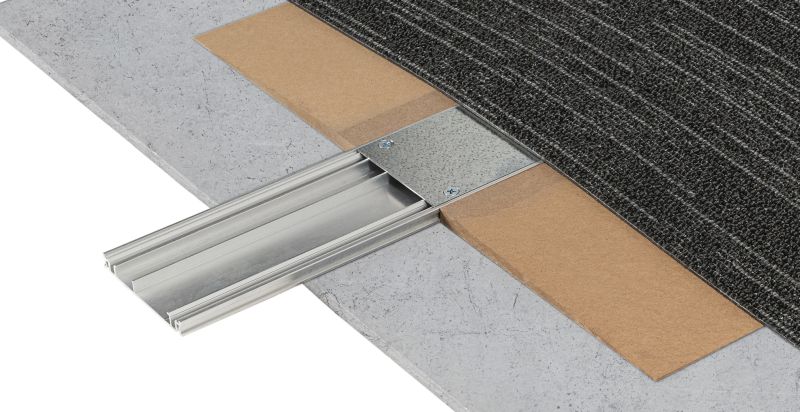

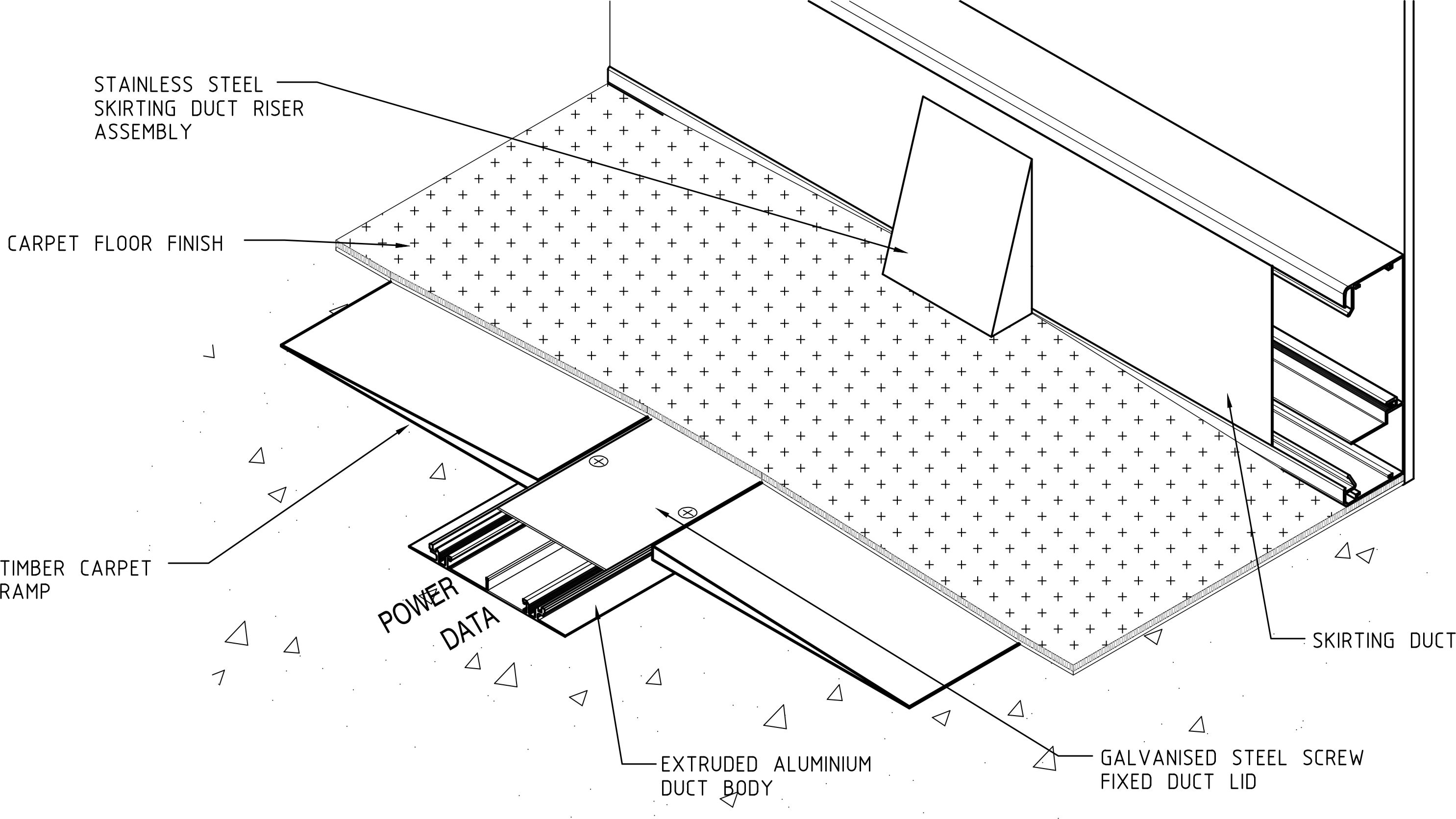

Extruded aluminium body with removable screw fixed galvanised steel covers available with side ramps and end kits.

For greater cable capacity also available as Twin channel(4 Division) or Triple Channel(6 Division) duct.

Ideal for most carpet and some vinyl floors.

Covers are pre-punched and countersunk.

Can be glued or screw fixed.

This product has been examined in accordance with AS3000 and A.C.M.A. requirements.

Other sizes available to order.
