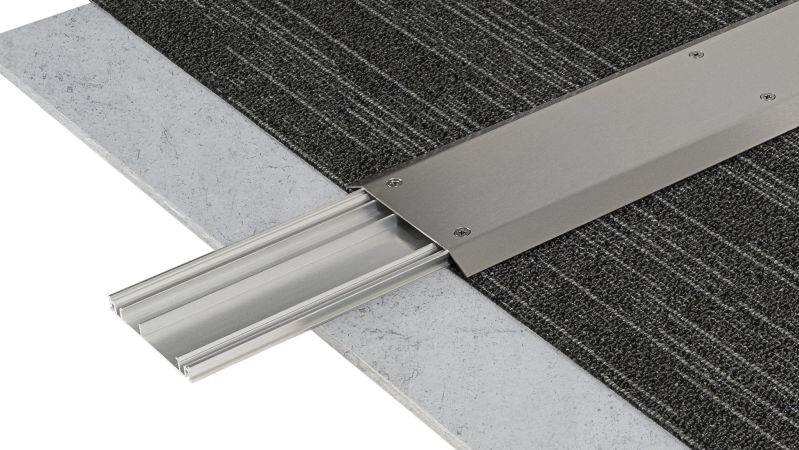

LOW PROFILE FLOOR DUCT – Surface Mount

CAT NO. FFD10012SM

Mounting:

Surface mounted

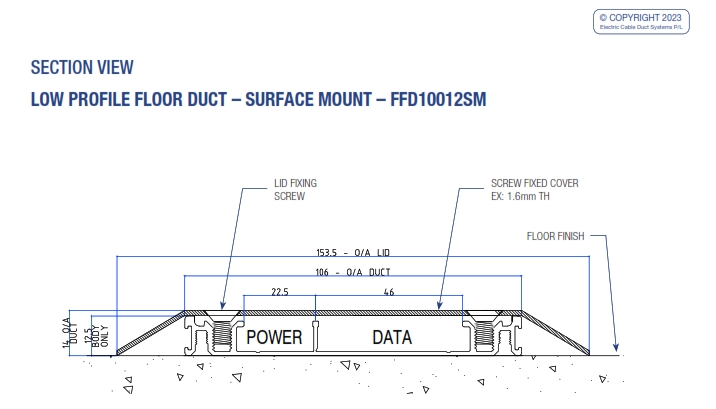

Size:

153 x 14 mm

Body:

2 division extruded aluminium

Cover:

Linished stainless steel also available in black powdercoat

Key Features

  • Fully accessible floor duct system suitable for commercial, education
    and retail applications where chasing of trenches in the concrete floor
    is not possible or is cost prohibitive.
  • Used for reticulation of cables/services to isolated locations within a room/space.
  • Can be surface mounted over a variety of floor finishes including tiles,
    floating timber and carpet.
  • Can be suitable for temporary protection of cables over the floor.
    Note may require earthing in accordance with AS/NZS3000 requirements.
  • Extruded aluminium duct body with continuous threadform sections
    for easy securing of duct covers and other accessories.
  • Segregated to suit multiple services including power, data, comms,
    with offset barrier for greater data/comms capacity.
  • Surface mounted duct covers are exposed with countersunk screws
    for easy cable access.
  • Robust stainless steel duct covers to suit foot traffic.
  • Duct covers are linished to a number 4 finish to meet P1 requirements
    for slip resistance in public spaces (dry areas).

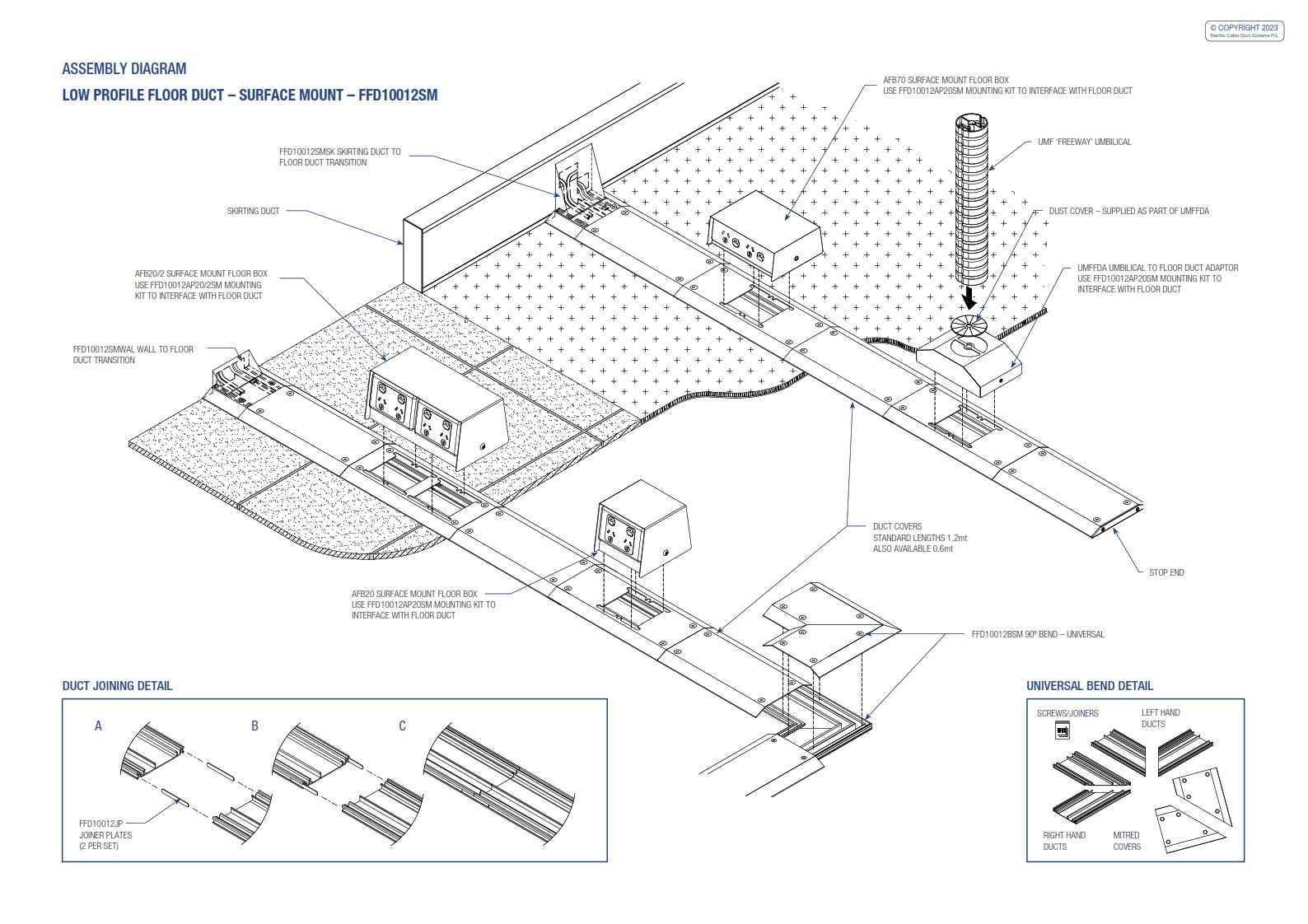

  • 90 degree bend kits available in left and right hand configurations to
    assist with easy on site installation.
  • Wall and skirting kits available for easy transition of cables into the duct body.
  • Compatible with a range of ECD standard surface mount floor boxes and Umbilicals.
  • This product has been examined in accordance with AS3000 and A.C.M.A. requirements.
