Stainless Steel Floor Box

CAT NO. FB148

Capacity:

1 standard sized G.P.O plate
1 No. 3 Gang Data Plate

Box Size:

135 x 126 x 95 mm Deep

Lid Material:

Stainless Steel

Suitable for:

Compact Installations

Key Features

  • Compact and stylish, the FB148 Series of Flush Floor Boxes provide ready access to power and communication outlets recessed in the floor.
  • Suitable for use in: Modern open plan living areas, home theatres, showrooms, shop-front displays, boardroom tables, schools, universities, and public
    buildings.

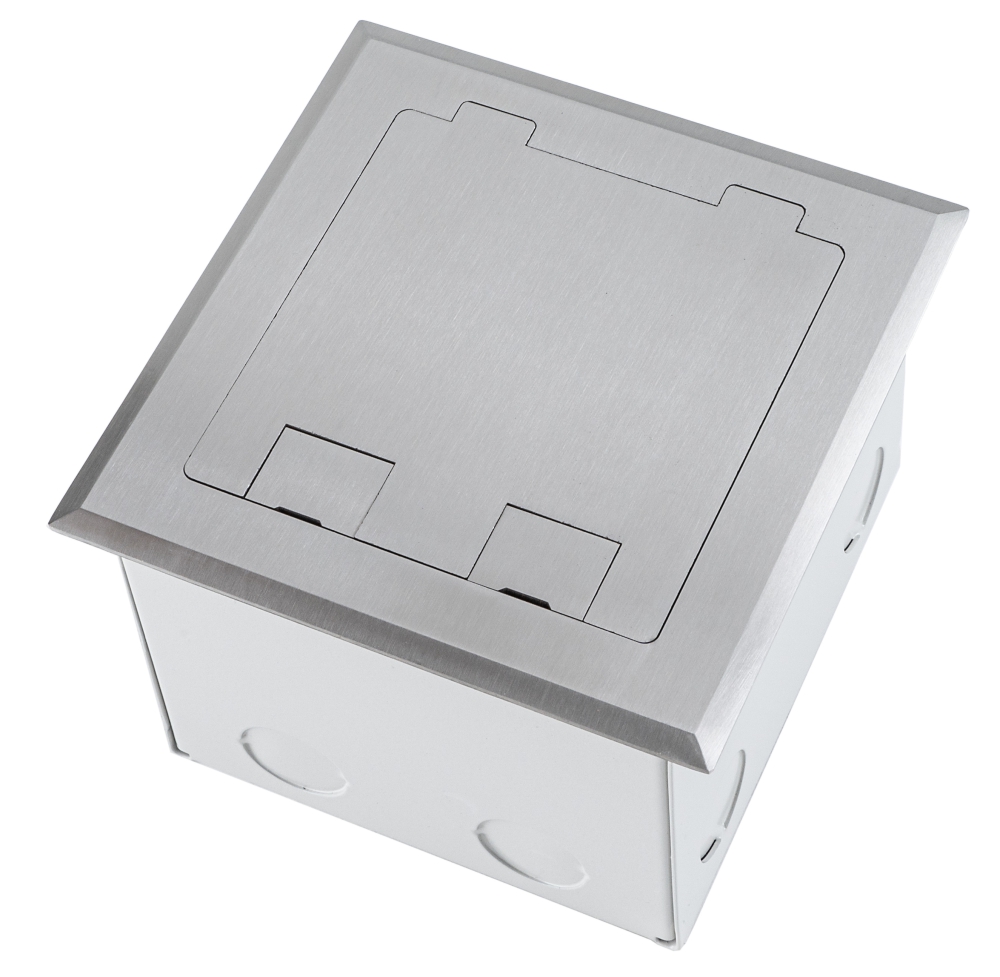

  • Available in Stainless Steel, the hard wearing 145 x 145mm cover bevels down to a fine edge under foot and is suitable for use with polished floor boards, carpet, ceramic tiles and vinyl floor coverings. (not suitable for use in wet areas)
  • The cover is also available with a ‘non’ bevelled edge – suitable for a flush finish with tiled, timber or other hard finish floors. Add ‘SQ’ to part number (FB148SQ).

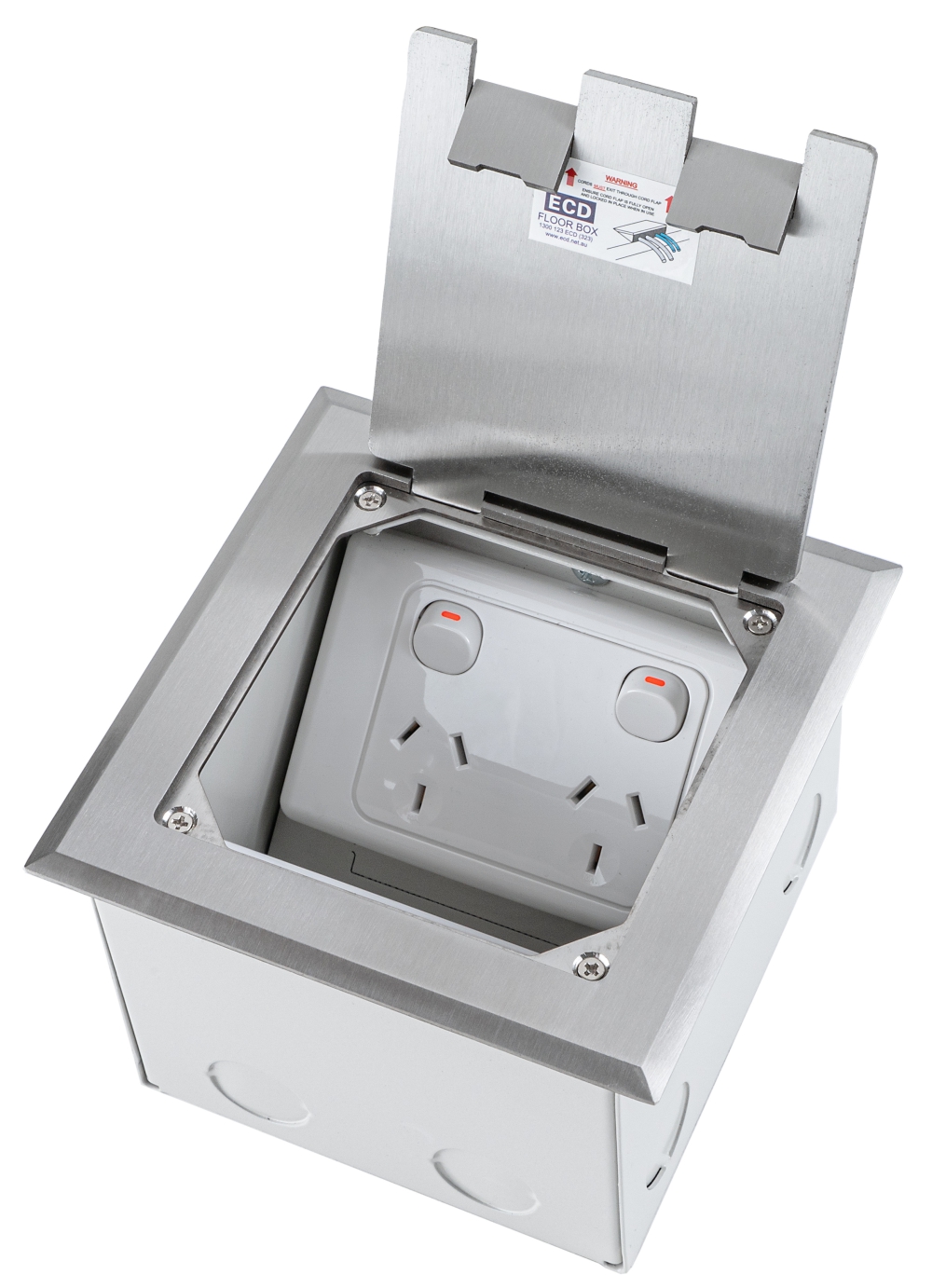

  • Capacity 1 x double GPO and 3 x Data (grid plate supplied).
  • Two small flaps allow cables out of the box when in use and close flat when not in use.
  • A versatile, practical and decorative solution to your open plan cabling needs.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.M.A requirements.
