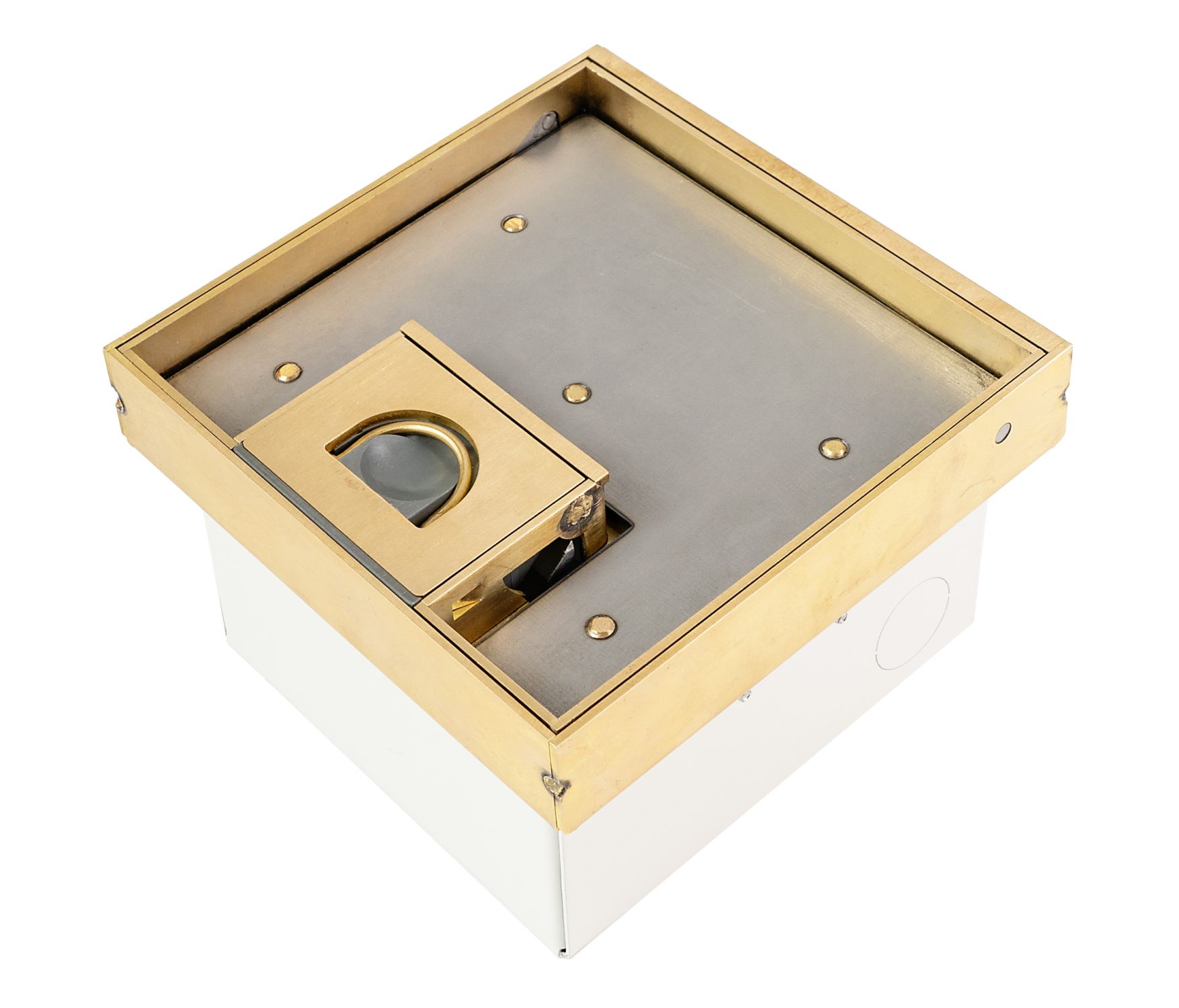

Brass Floor Box - Heavy Duty 12mm Deep Recess

CAT NO. FB1BDRHD70

Capacity:

2 x single auto switch power outlets

Box Size:

150 x 150 x 97mm Deep

Lid Material:

Brass

Lid Rebate:

12mm Deep

Suitable for:

Heavy duty installations

Load Rating:

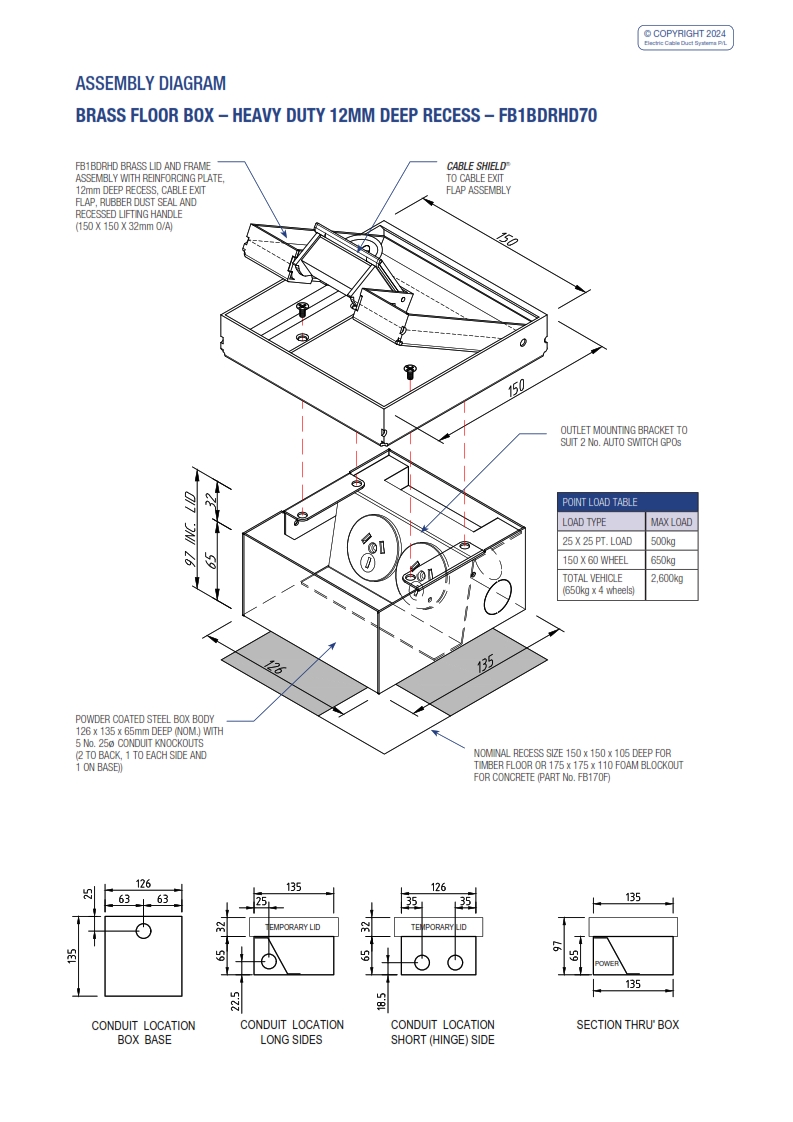

Suits vehicle traffic – refer chart on product PDF

Key Features

  • A versatile, practical and decorative solution to your open plan cabling needs.
  • Heavy duty – load rated floor box suitable for vehicular traffic.
  • Ideal for car showrooms and shopping centres.

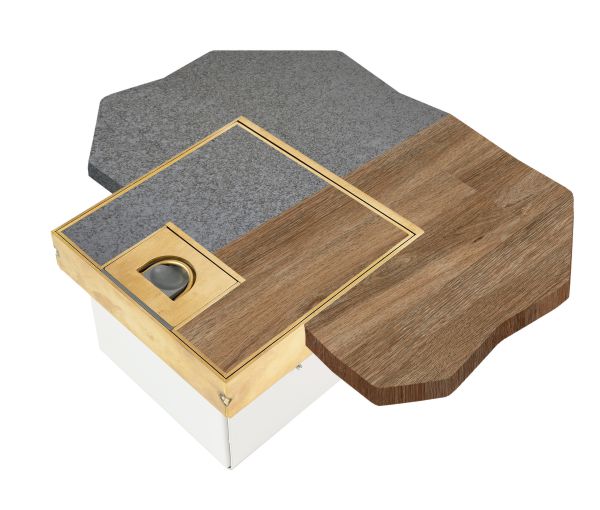

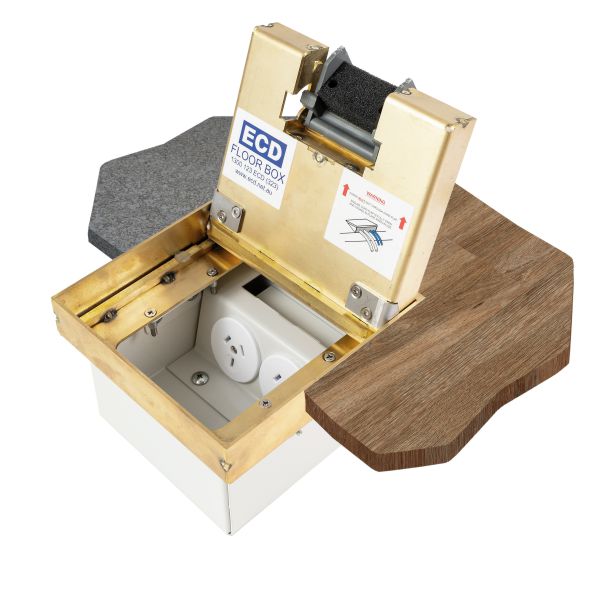

  • 12mm rebate for floor finish (typically timber boards or ceramic tiles).
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
  • Brass lid construction with No. 4 Linished finish.

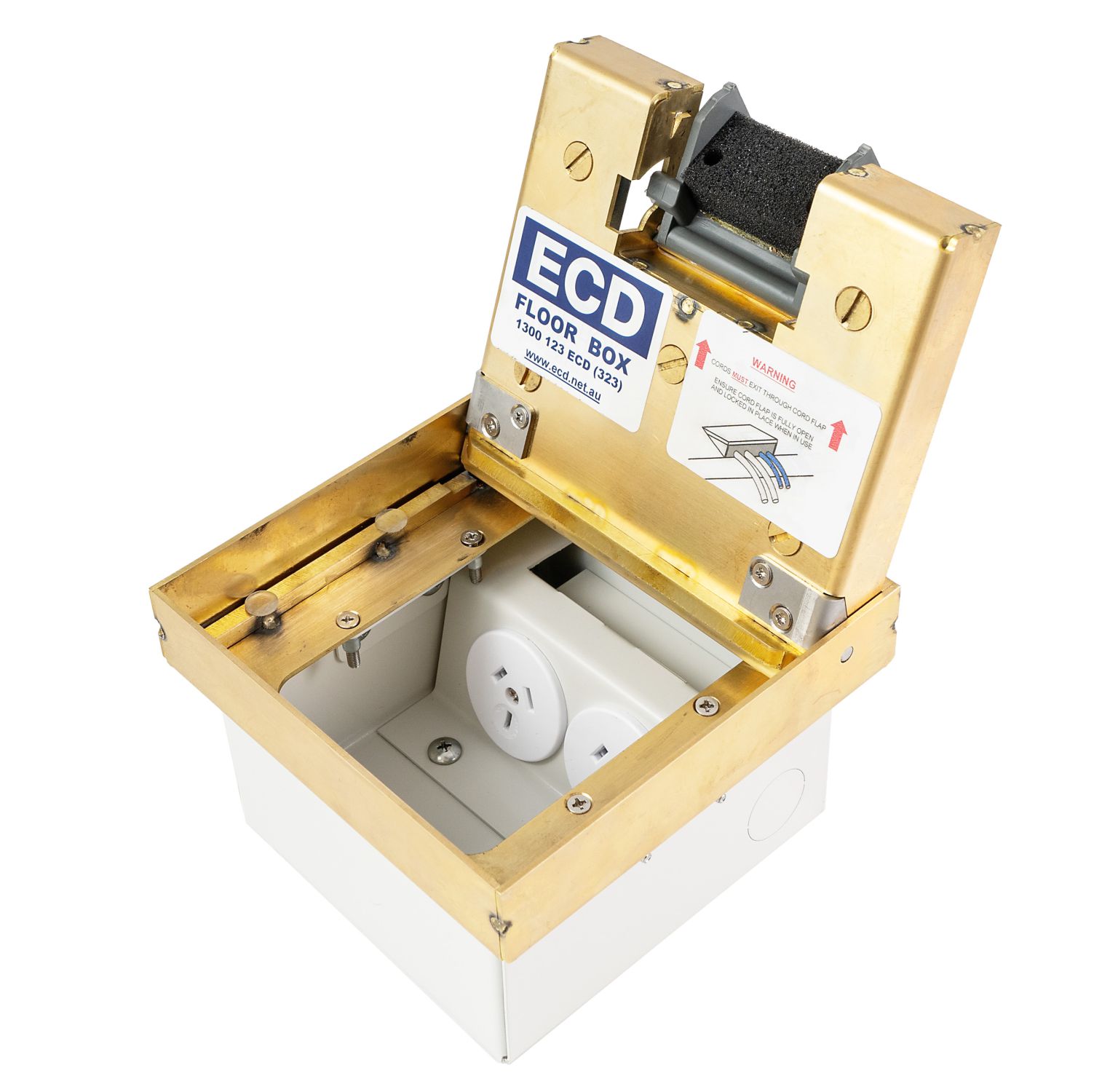

  • Robust, large cable exit flap with Cable Shield® and brass lifting handle.
  • Capacity for 2 x single auto switch power outlets (supplied).
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
