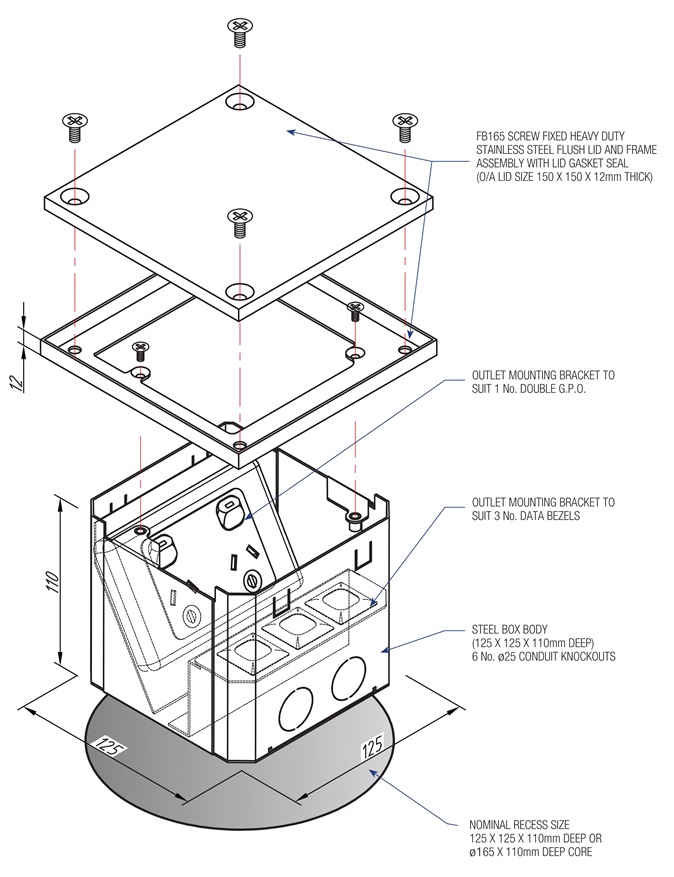

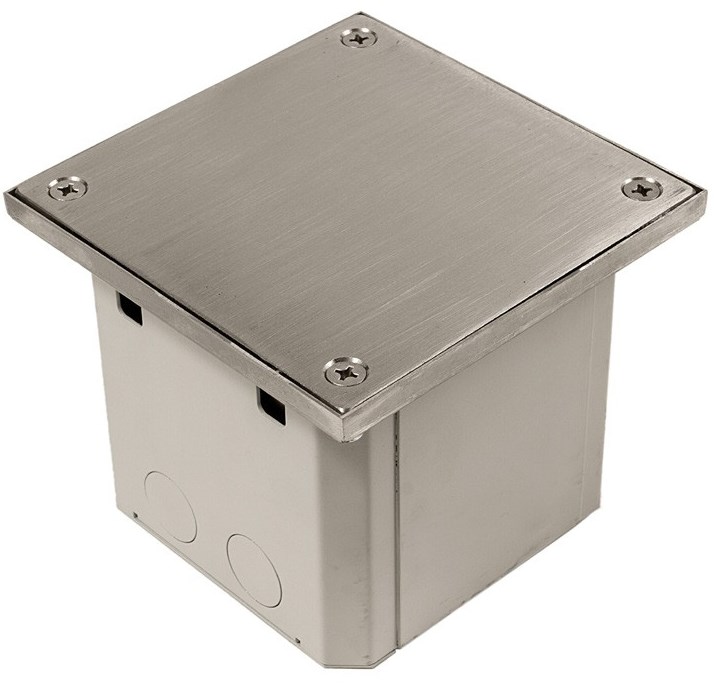

HEAVY DUTY & WATER RESISTANT Flush Floor Box - Square Edged, Stainless Steel



Load Rated – suitable for vehicular traffic. Refer chart below.


1 standard size G.P.O. plate &
3 Gang Data outlets (supplied)

Box Size:

125 x 125 x 110mm deep

Lid Material:

Stainless steel 8mm thick


165 dia. x 120mm deep core or 130 x 130 x 120mm deep

Suitable for:

Cat 6 Cabling

Key Features

  • Heavy duty and water resistant – load rated floor box suitable for vehicular traffic.
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
  • 1 Standard GPO plate, capacity for double GPO and 3 Gang Data plate (supplied).
  • 304 Grade Solid Stainless Steel – 8mm thick.

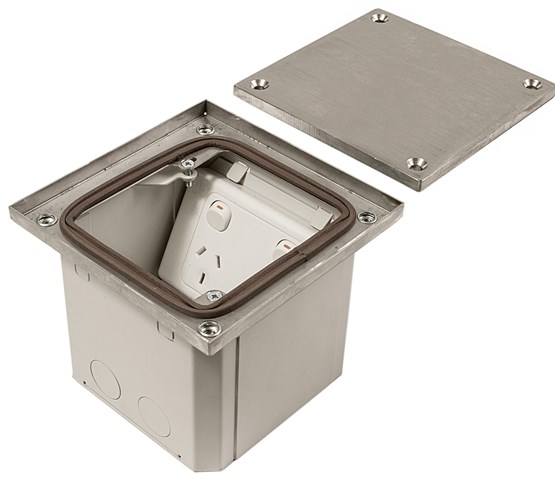

  • Square lid and frame features gasket seal.
