Brass Floor Box - 20mm Deep Recess



1 standard size GPO
1 No. 3 Gang Data Plate

Box Size:

150 x 150 x 120 mm Deep

Lid Material:


Lid Rebate:

20 mm Deep

Suitable for:

Compact Installations

Key Features

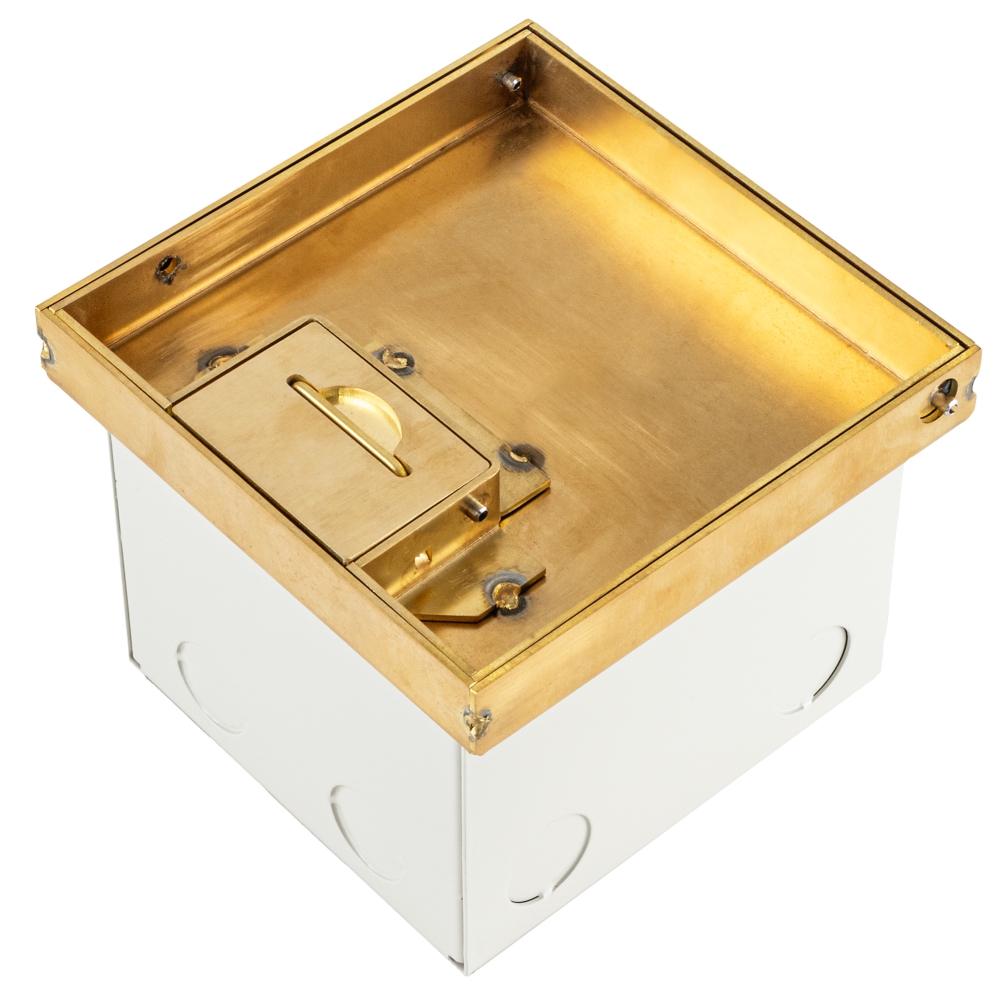

  • Recessed brass lid and frame with 20 mm rebate for floor finish (typically polished timber boards or ceramic tiles).
  • Suitable for use in: Modern open plan living areas, home theatres, showrooms, shop-front displays, schools, universities, and public buildings.
  • Available in solid brass, the 150 x 150 mm lid installs flush, provides minimum disruption to the floor finish and is suitable for use with polished floor boards, carpet, ceramic tiles and vinyl floor coverings (not suitable for use in wet areas).
  • Capacity 1 x double GPO and 3 x Data (grid plate supplied).

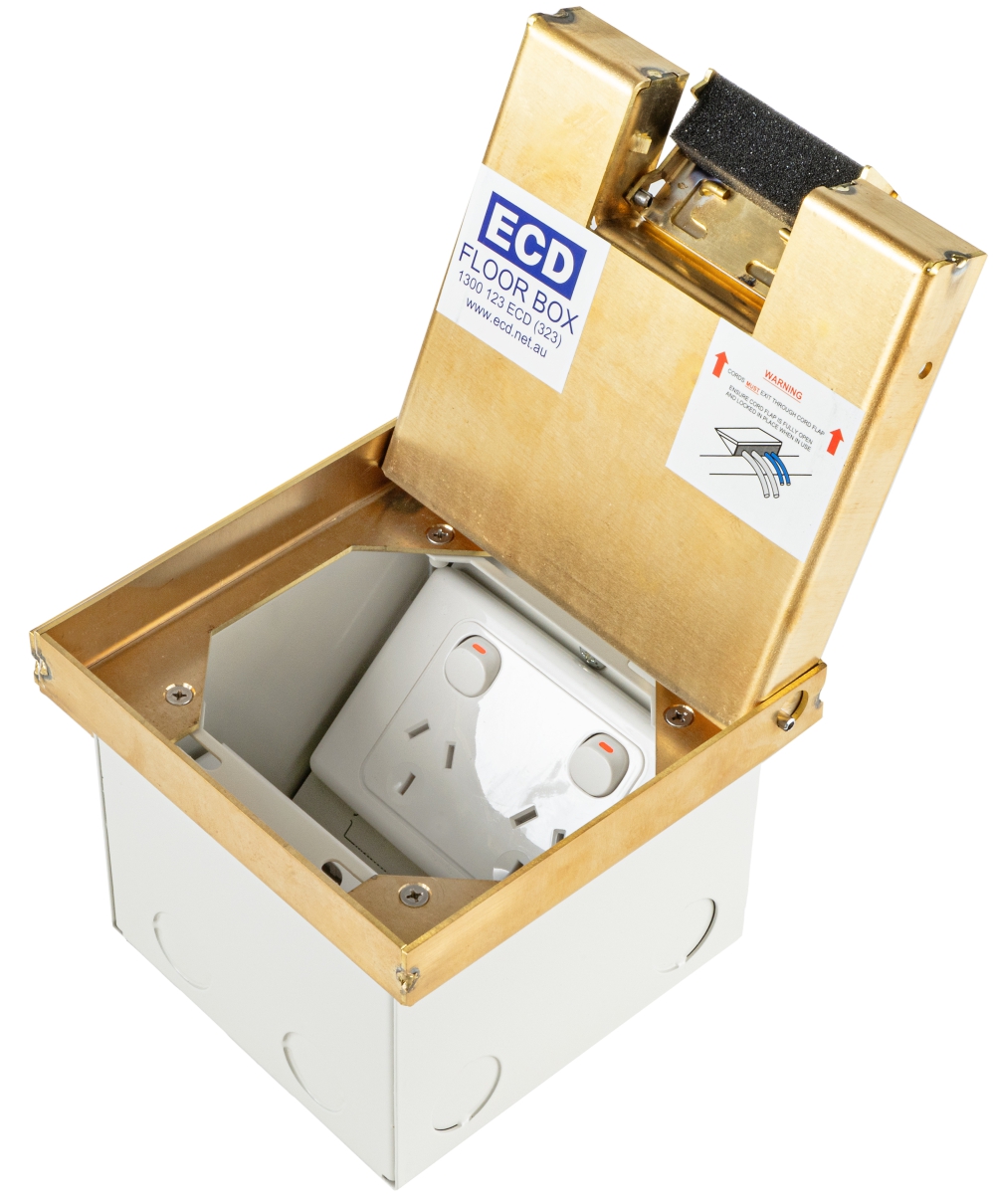

  • The cable exit flap allows cables out of the box when in use and closes flat when not in use.
  • A versatile, practical and decorative solution to your open plan cabling needs.
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
