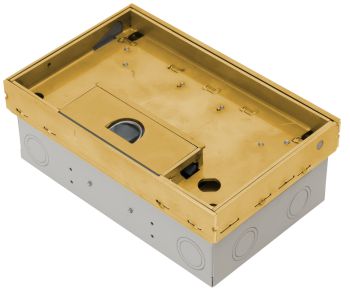

Flush Floor Box - Deep Recessed Brass
CAT NO. FB2BDR70
2 x single auto switched power outlets
250 x 160 x 133mm Deep
Brass – No.4 Linished
Cat6A and Cat7A Cabling
- Recessed Brass Lid and Frame with 20mm rebate for floor finish (typically polished timber boards or ceramic tiles).
- Solid Brass lid construction with No. 4 Linished finish.
- Adjustable Soft Closer to control lid closure – suits floor finish infills up to 2kg (eg. timber packer & carpet, full timber, ceramic tile or stone).
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
- Height adjustable lid and frame.
- Robust, large capacity cable exit flap with CableShield and brass lifting handle.
- Option to fit cam lock if required.
- Capacity for 2 x single auto switched power outlets (supplied) and 3 x data mounts.
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
