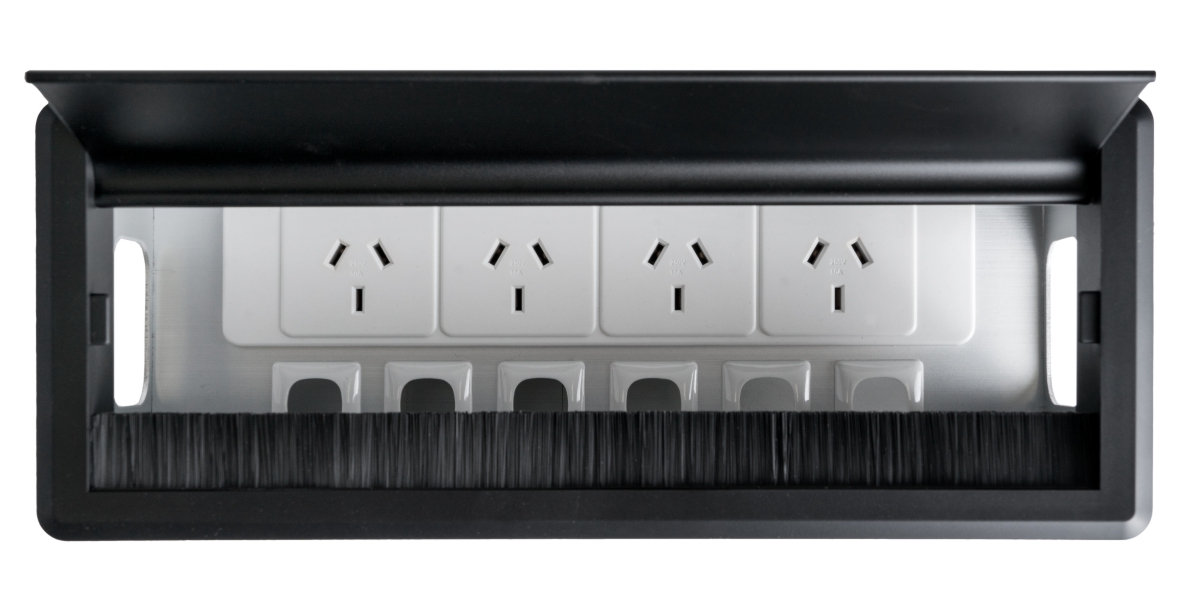

Solo In-Desk Box

CAT NO. IDSO4P6D – Solo

Capacity:

4 x Auto GPO’s (10 amp soft wired) and 6 x Data mounts

Body Size:

284 x 110 x 106mm deep

Suitable for:

Category 6A cabling

Colour:

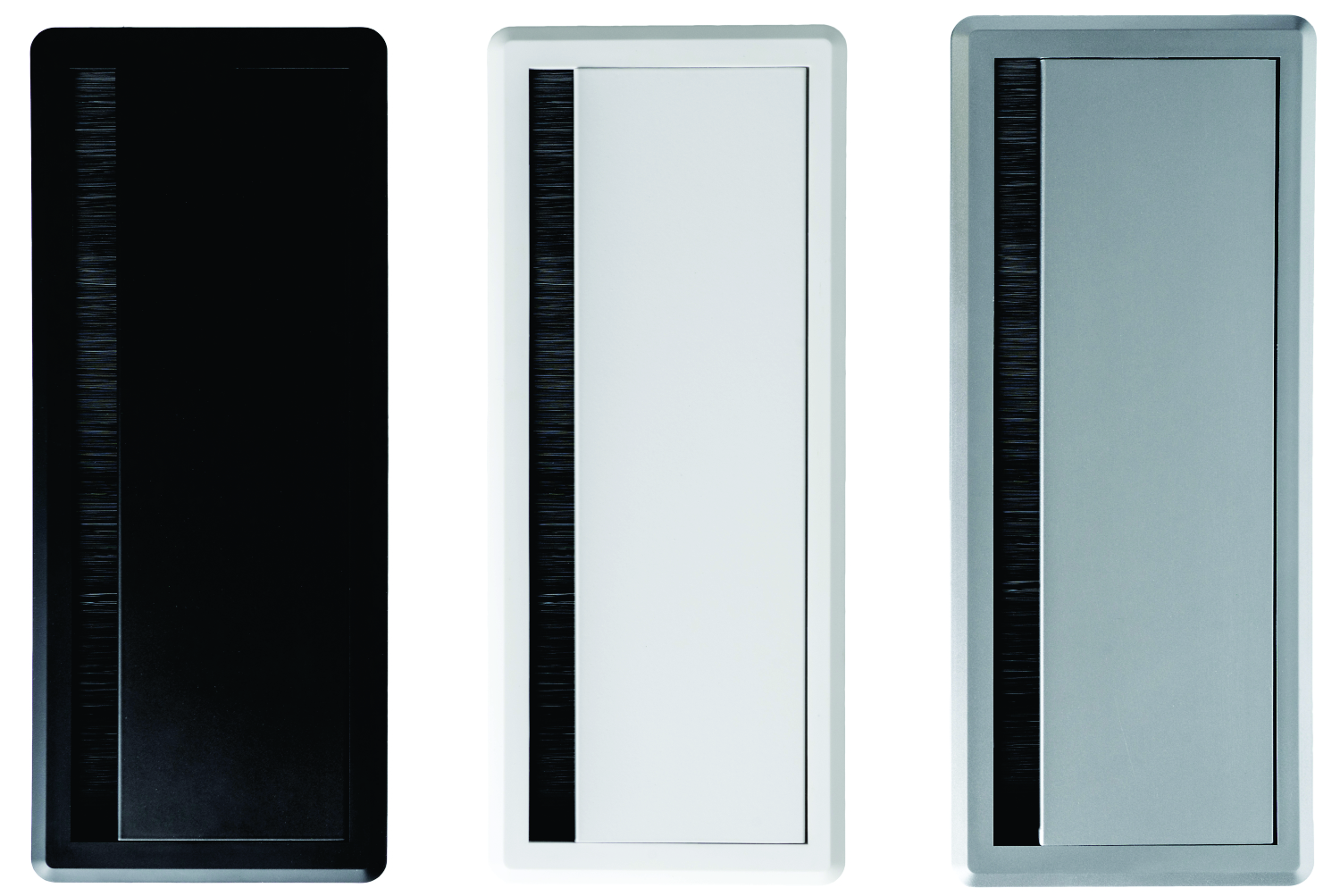

Silver, White & Black View Colours

Key Features

  • Anodised black, white or silver aluminium in-desk box for soft wired power and data. Lid can be closed when in use.
  • Standard unit has 4 x autoswitched GPOs (10 Amp– soft wired) and 6 x data mounts).
  • Soft wired with in/out couplers which allows easy cascading of units when more than one is installed.

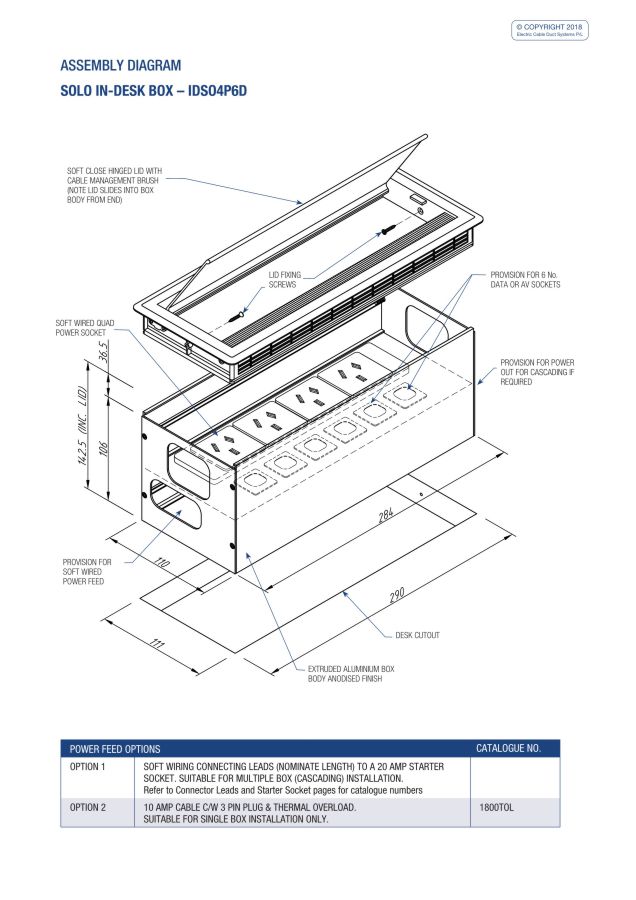

  • Power up methods:
    • Option 1: Softwiring connecting leads (nominate length) to a 20 amp starter socket. Suitable for multiple box installation. (See connector leads and starter sockets pages for catalogue numbers.)
    • Option 2: 10 amp cable c/w 3 pin plug and thermal overload protection to a standard GPO. Suitable for one box installation only.Catalogue No. CL1800TOL
  • Suitable for Category 6A data cabling.
  • Note: Box cut out size 290 x 111mm.
    Box depth from under lip is 106mm.
