Gemini In-Desk Box

CAT NO. IDG8P12D – Gemini

Capacity:

8 x Auto GPO’s (10 amp soft wired) and 12 x Data mounts.

Body Size:

293 x 210 x 130mm deep

Suitable for:

Category 6A cabling

Colour:

Silver, White & Black View Colours

Key Features

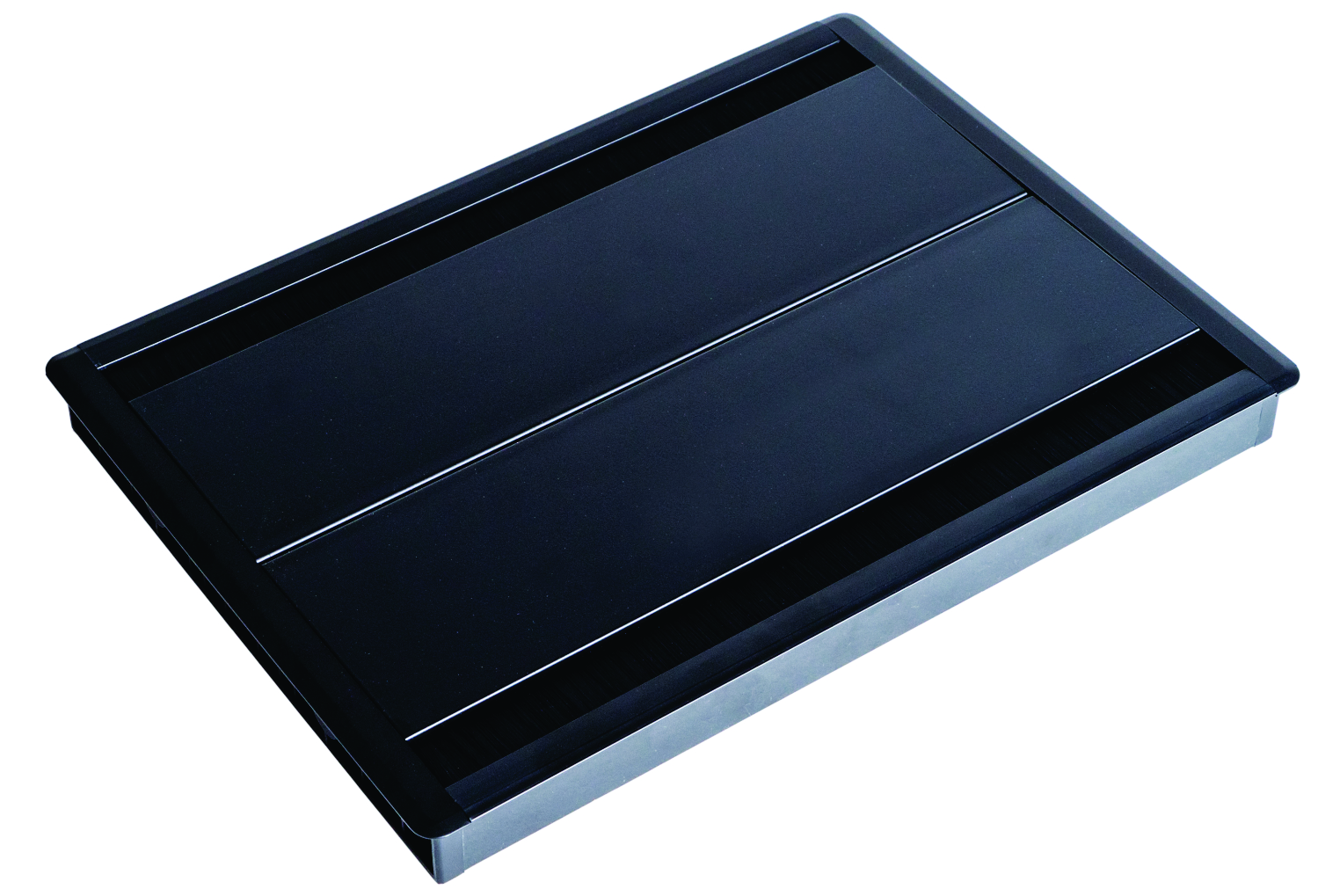

  • An anodised black, white or silver aluminium in-desk box for soft wired power and data. Lid can be closed when in use.

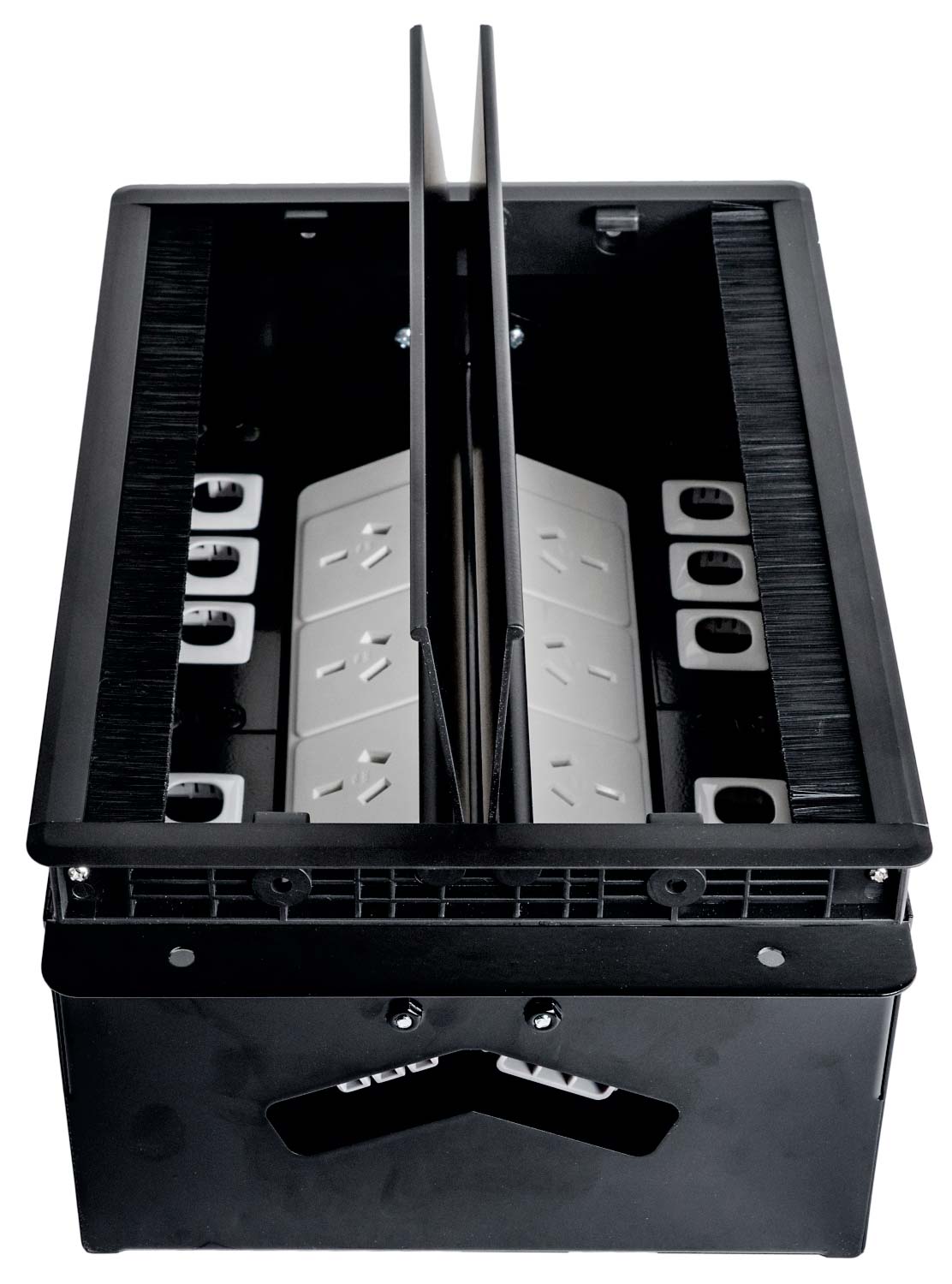

  • Standard unit has 8 x autoswitched GPOs (10 Amp – soft wired) and 12 x data mounts).
  • Soft wired with in/out couplers which allows easy cascading of units when more than one is installed.
  • Power up methods:
    • Option 1: Softwiring connecting leads (nominate length) to a 20 amp starter socket. Suitable for multiple box installation. (See connector leads and starter sockets pages for catalogue numbers.)
    • Option 2: 10 amp cable c/w 3 pin plug and thermal overload protection to a standard GPO. Suitable for one box installation only. Catalogue No. CL1800TOL
  • Suitable for Category 6A data cabling.
  • Note: Box Cut Out size 290mm x 206mm
    Box depth from under lip is 130mm
