Heavy Duty & Water Resistant Flush Floor Box - Deep Recessed, Square, Edged, Stainless Steel
CAT NO. FBIP4SDR
| Features: | Load Rated – suitable for vehicular traffic. See download |
| Capacity: | 4 No. IP66 Industrial socket modules |
| Box Size: | 210 x 210 x 145mm deep |
| Lid Size: | 275 x 275 x 22mm deep |
| Lid Material: | Stainless 304 – No. 4 Linished |
Key Features
- Heavy duty and water resistant – load rated floor box suitable for vehicular traffic.
- Recessed stainless steel lid and frame with 22mm rebate for floor finish (typically polished timber boards or ceramic tiles).
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).

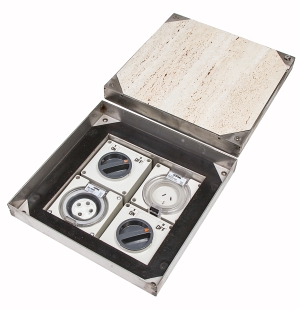

- Capacity for 4 No. IP66 Industrial socket modules.
- 304 Grade Solid Stainless Steel – 8mm thick.
- Stainless steel frame with neoprene gasket to 4 sides (for water resistance when lid in fixed closed position).
* Click images to enlarge
