PROTECTOR™ SERIES Flush Floor Box - Flush Stainless Steel



1 x rewireable starter socket
and 6 x data mounts

Box Size:

240 x 240 x 70 mm Deep


Umbilical access

Lid Material:

Stainless 304 – No. 4 Linished

Suitable for:

• Soft wired power
• Cat6A & 7A Cabling

Key Features

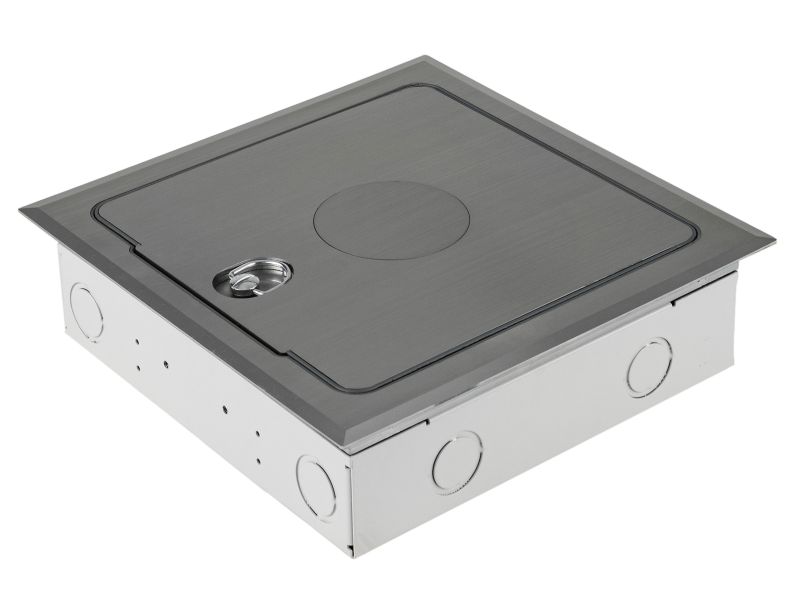

  • Flush Protector™ Series 304 grade Stainless Steel lid and frame with No. 4 Linished finish.
  • Protector™ Series features;
    • Cable Shield® Frame assembly to prevent cables being cut.                            (Patent Certified 2017100897 & Patent Pending 2015204344)
    • Soft close lid to stop lid from slamming shut.
  • Quarter turn locking latch with lifting handle.
  • Umbilical access hole with dust cover while in use and blank cover for when not in use.
  • Supplied with:

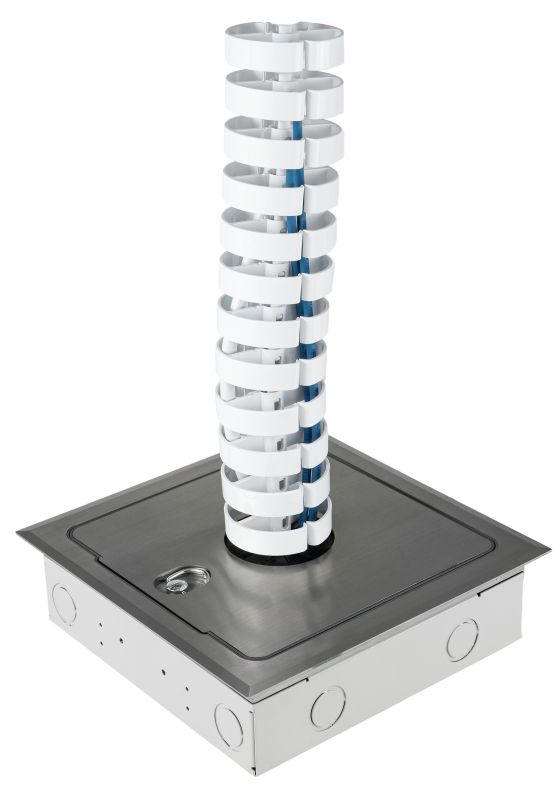

    • 1 x UMF780 under desk umbilical
    • 1 x FC soft wired rewireable starter socket
    • 1 x CL1500 1.5m interconnecting lead.
  • Capacity for 1 x rewireable starter socket (supplied) and 6 x data mounts (bezels supplied). *Note: not for use with GPOs and 3 pin plugs.
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
