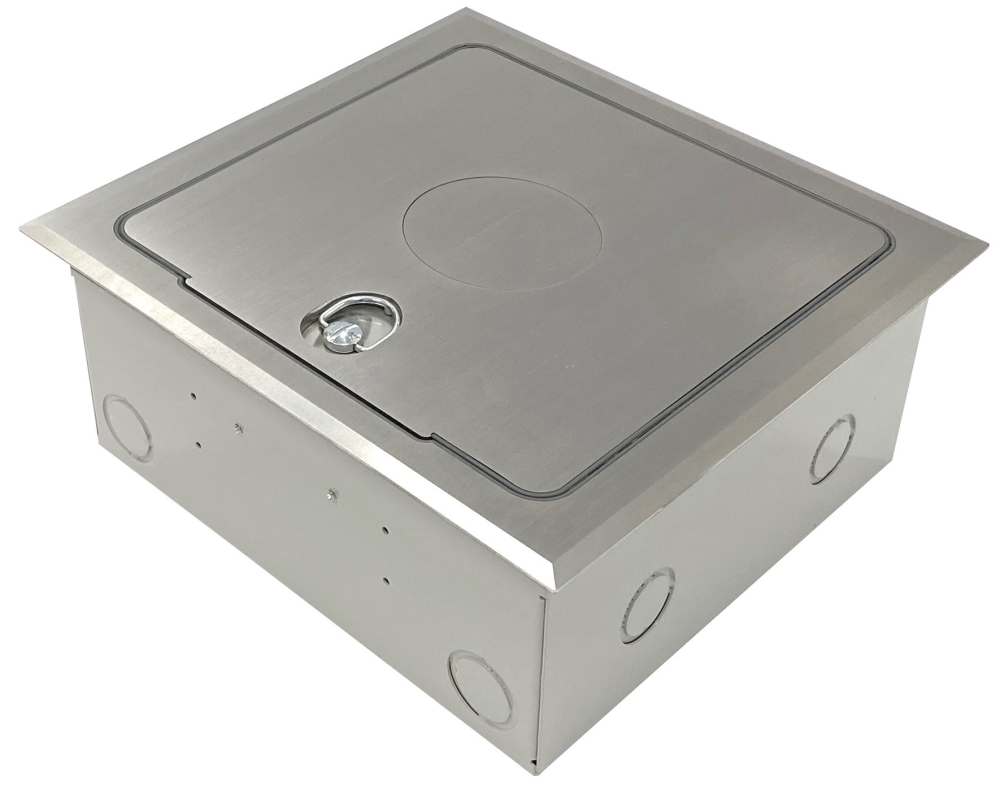

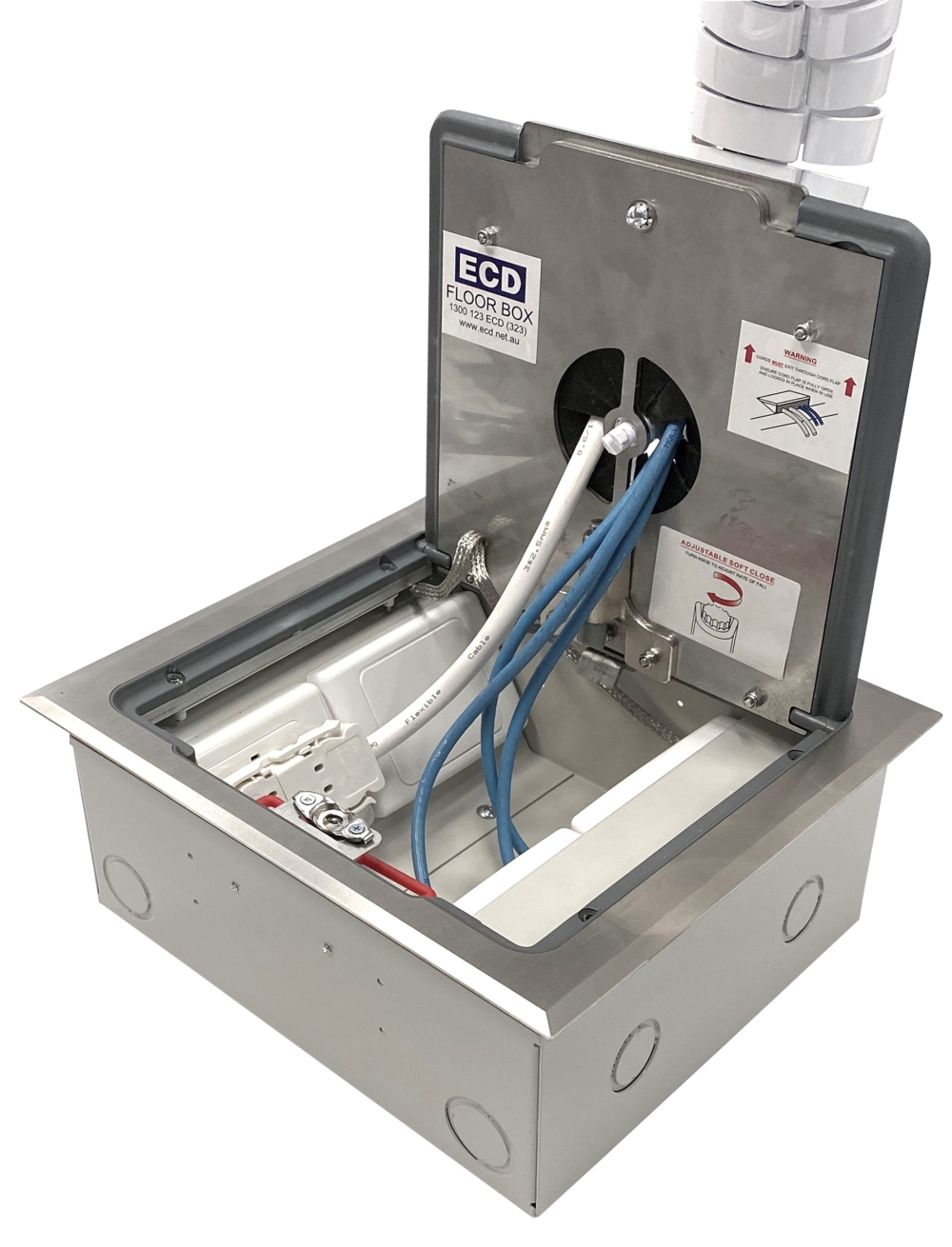

PROTECTOR™ SERIES Flush Floor Box - Flush Stainless Steel



4 standard sized plates

Box Size:

240 x 240 x 110mm Deep


Umbilical access

Lid Material:

Stainless 304 – No. 4 Linished

Suitable for:

Soft wired power
Cat. 6A & 7A Cabling

Key Features

  • Flush Protector™ Series Stainless Steel Lid and Frame with No. 4 Linished finish.
  • ‘Protector’ Series features
    • Cable Shield™ Frame assembly to prevent cables being cut (Patent Pending)
    • Soft close lid to stop lid from slamming shut
  • Quarter turn locking latch with lifting handle.

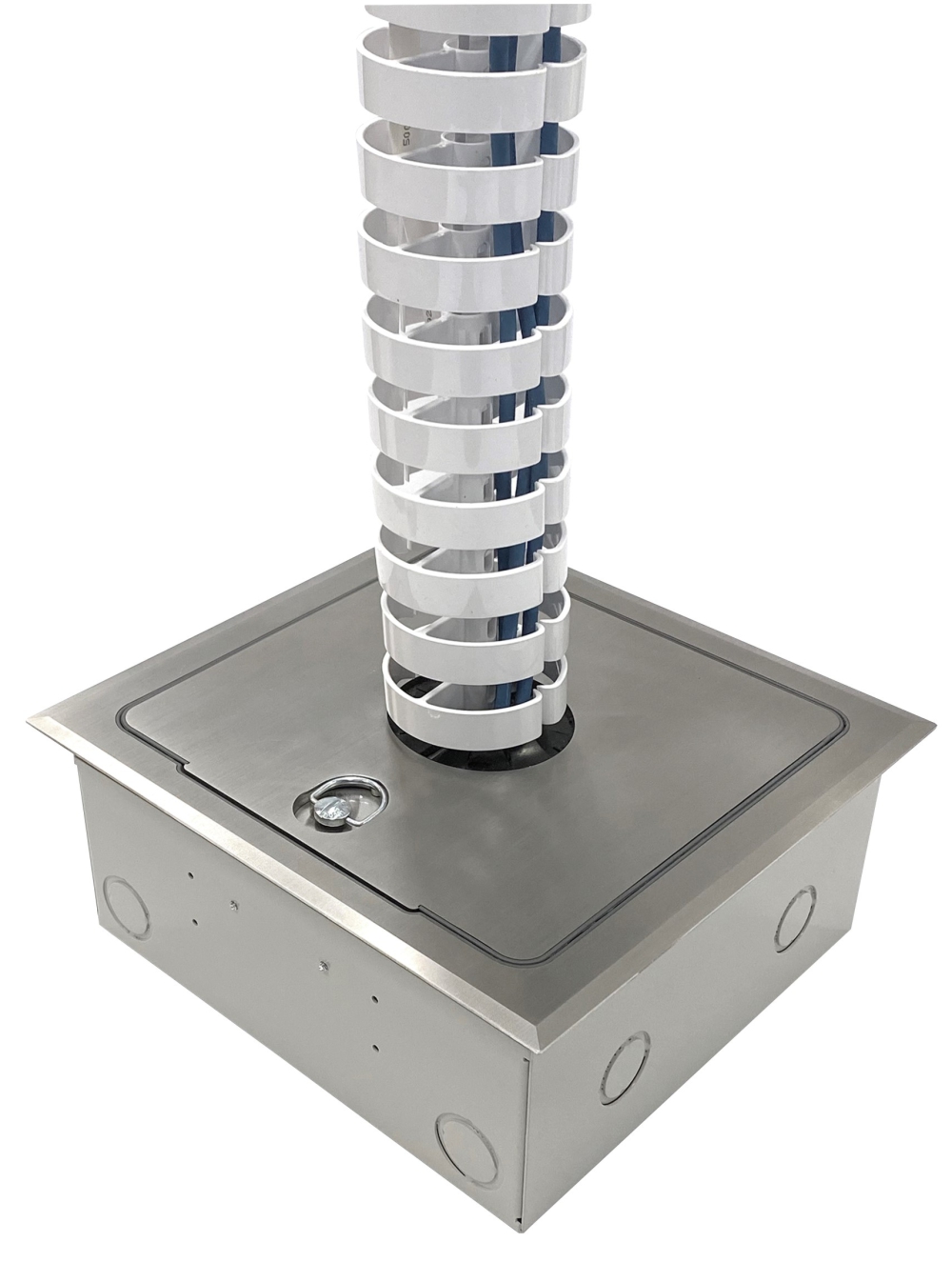

  • Umbilical access hole with dust cover while in use and blank cover for when not in use.
  • Supplied with:
    • 1 x UMF780 under desk umbilical
    • 1 x SSP soft wired starter socket
    • 1 x CL1500 1.5m interconnecting lead.
  • Capacity for 4 x standard outlet plates* (1 x starter socket, 1 x blank & 2 x data and/or AV). *Note: not for use with GPOs and 3 pin plugs.
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • 304 Grade Solid Stainless Steel.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
