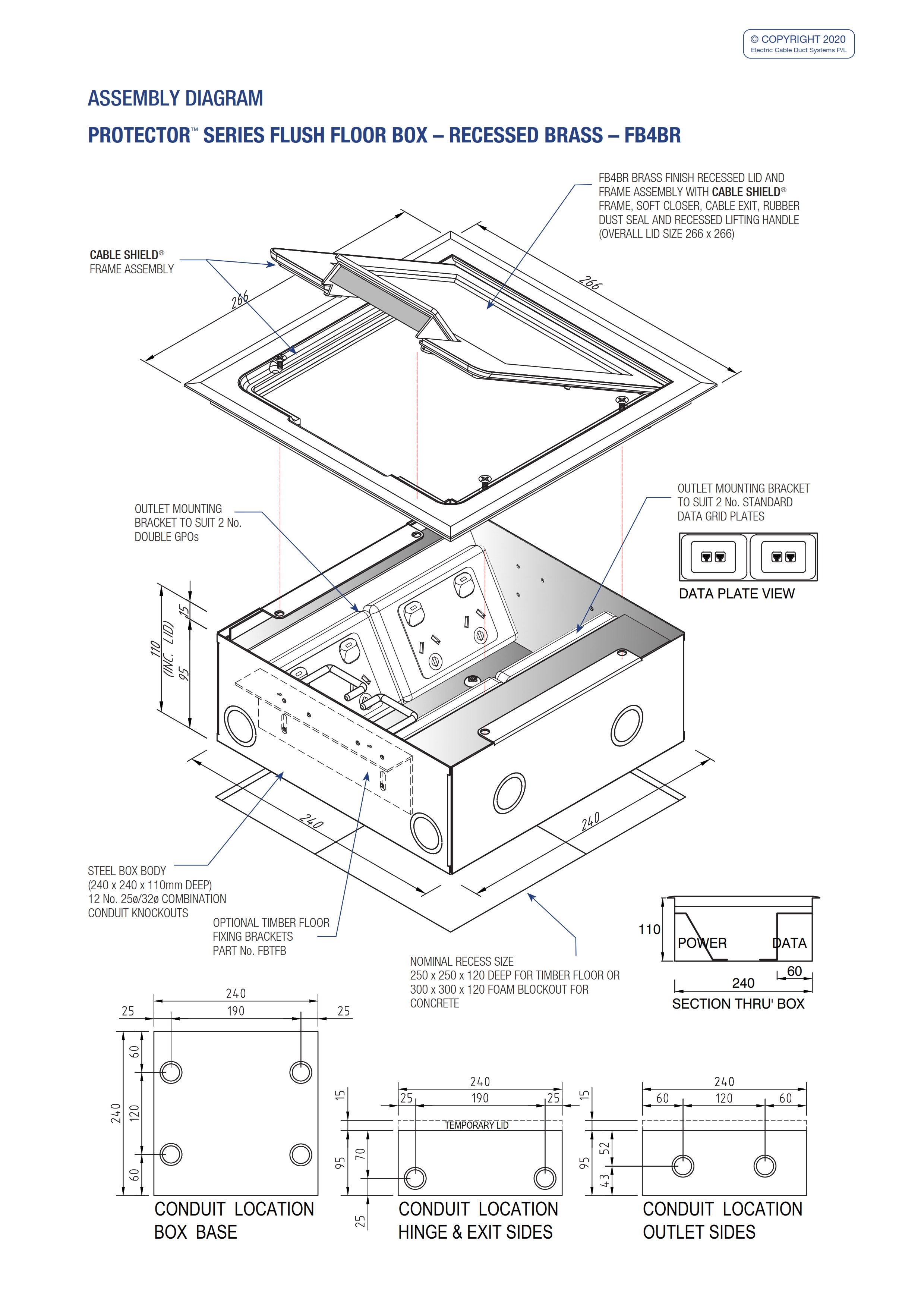

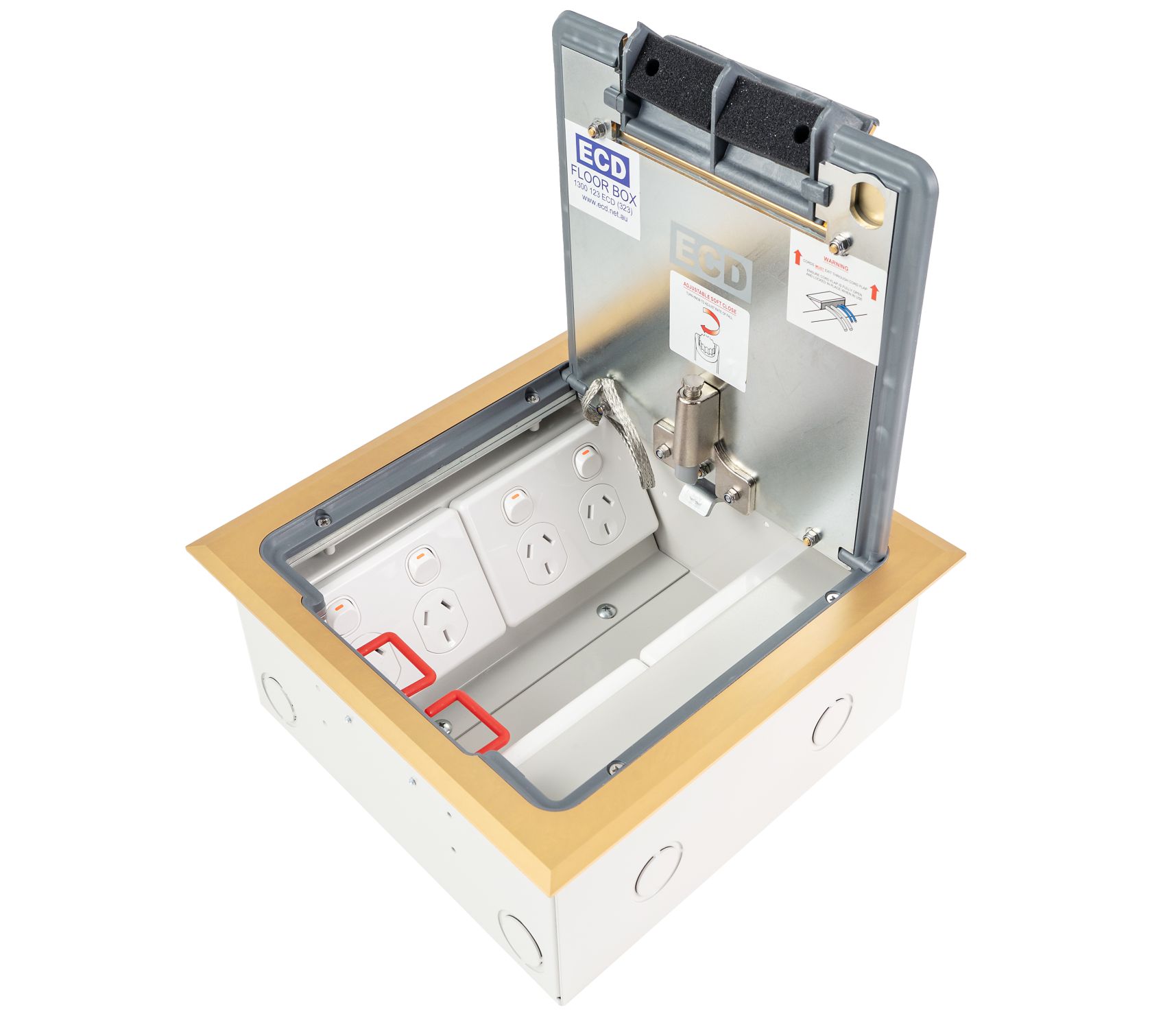

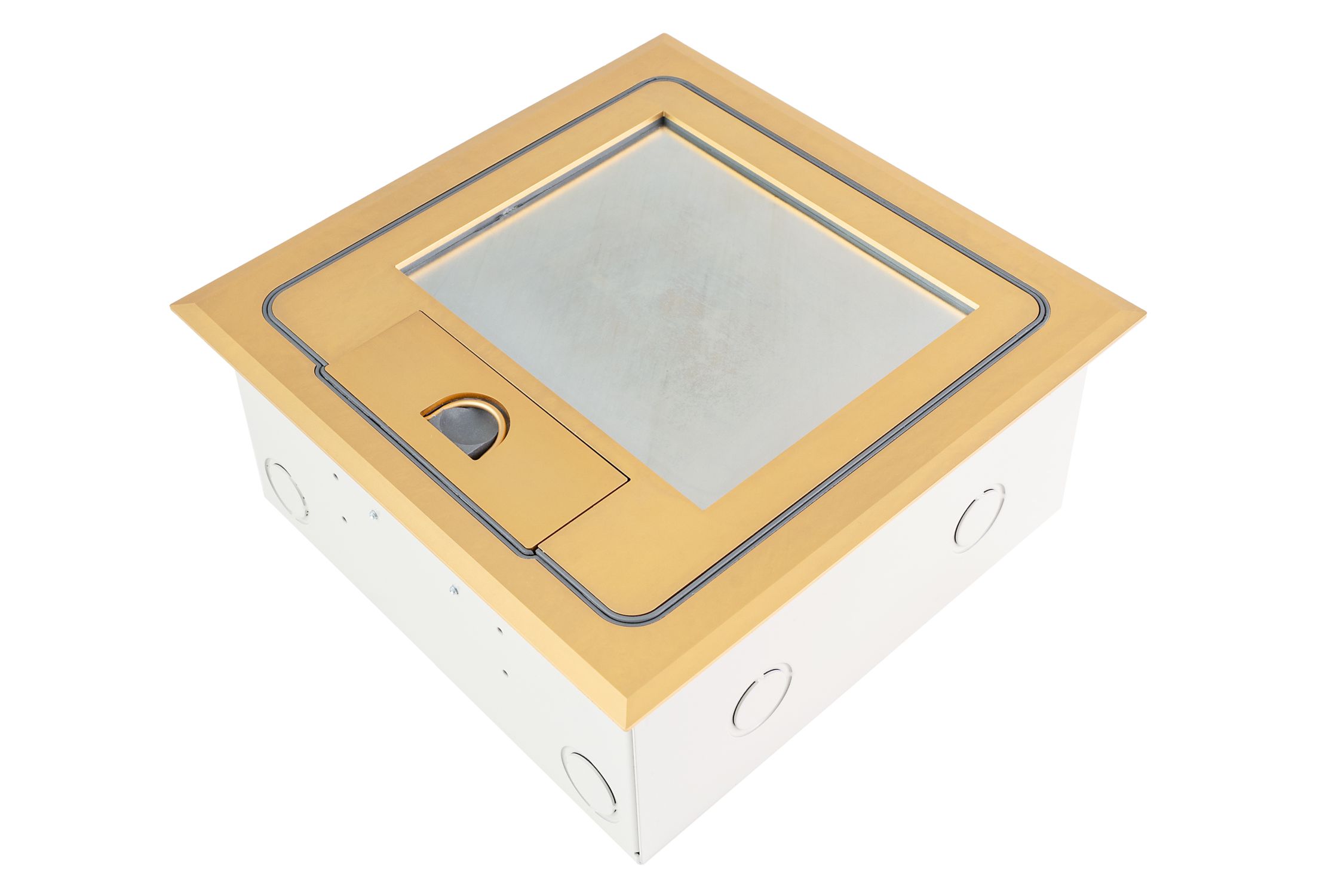

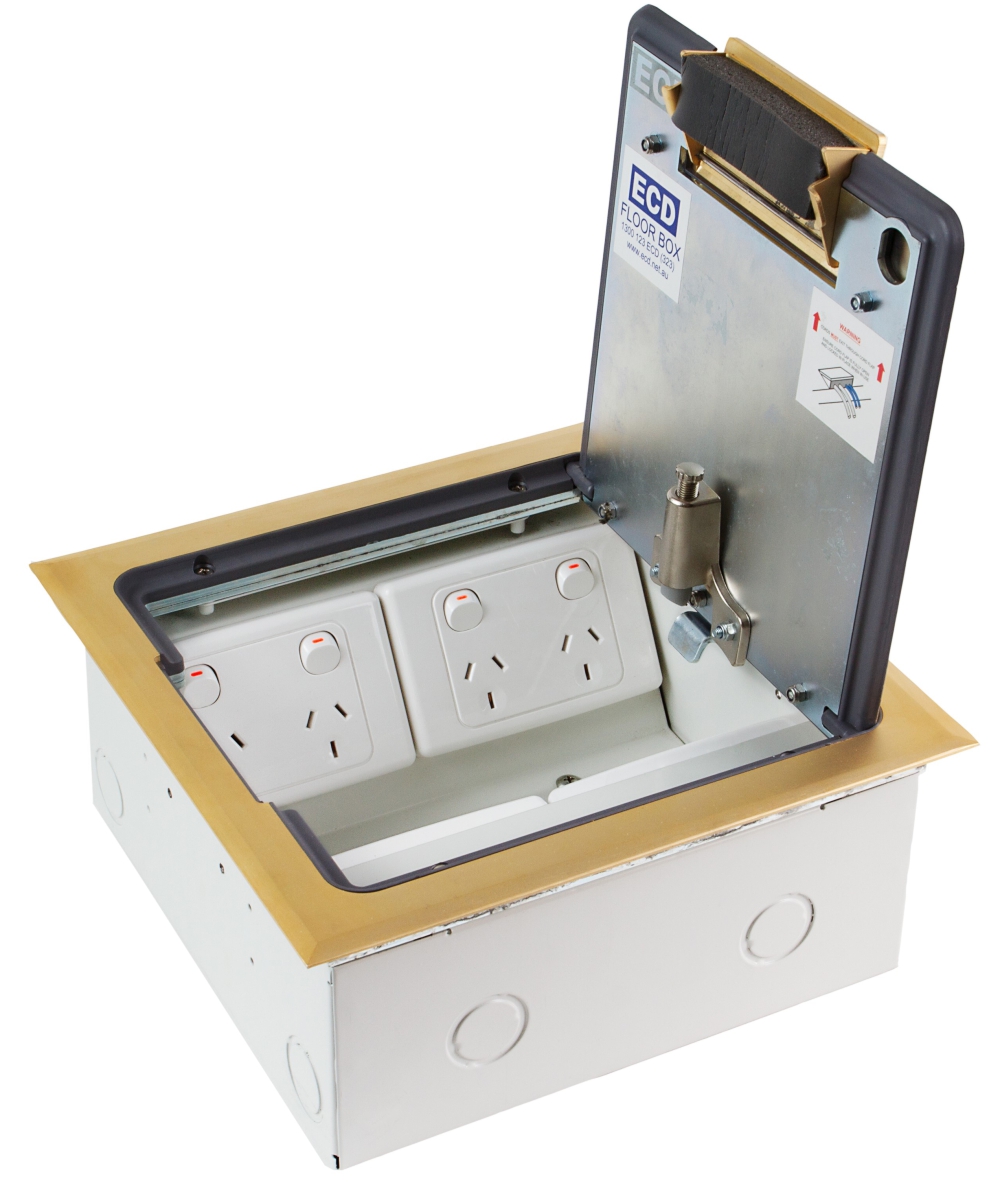

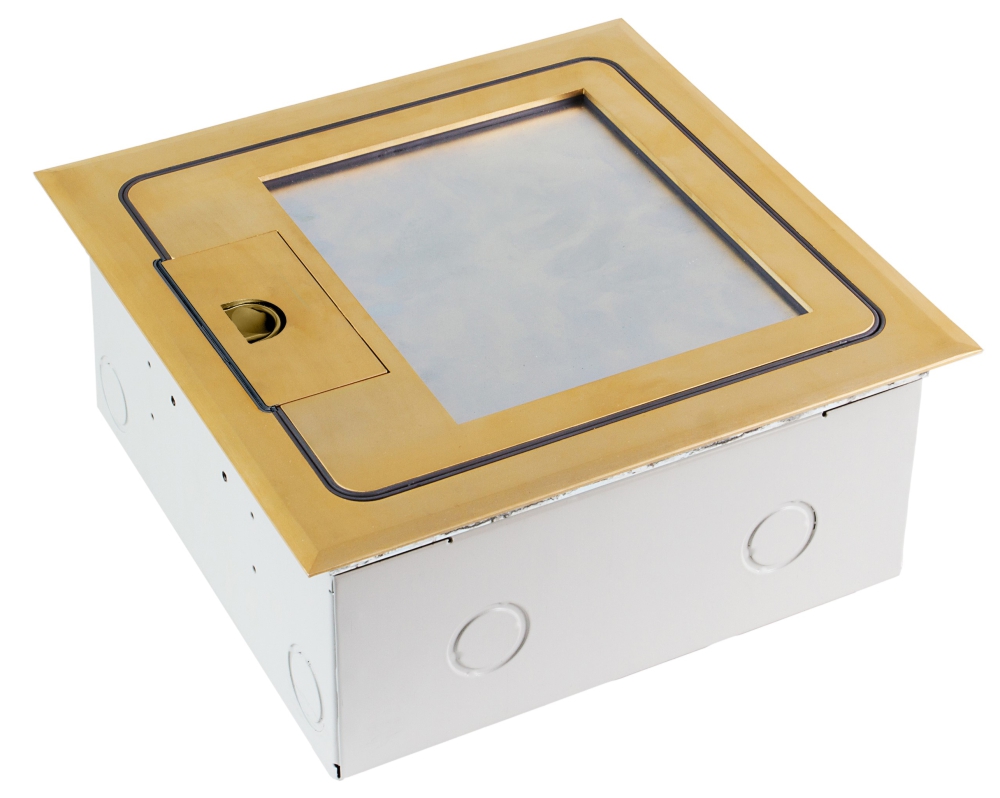

PROTECTOR™ SERIES Flush Floor Box - Recessed, Brass



4 standard size plates

Box Size:

240 x 240 x 110mm Deep

  • Cable Shield™ Frame
  • Soft close lid
Lid Material:



6 mm Deep

Suitable for:

Cat. 6A & 7A Cabling

Key Features

  • Recessed Protector™ Series brass finish lid and frame with 6 mm rebate for floor finish (typically carpet or vinyl).
  • Protector™ Series features
    • Cable Shield® Frame assembly to prevent cables being cut. (Patent Certified 2017100897 & Patent Pending 2015204344)
    • Soft close lid to stop lid from slamming shut.
    • Cable retainer for easy cable management.
  • Robust and large capacity cable exit flap with retracing lifting handle.
  • Capacity for 4 standard outlet plates (2 x double power and 2 x Data and/or A.V.).
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
    • Supplied with temporary construction lid.
    • Option to fit cam lock if required.
