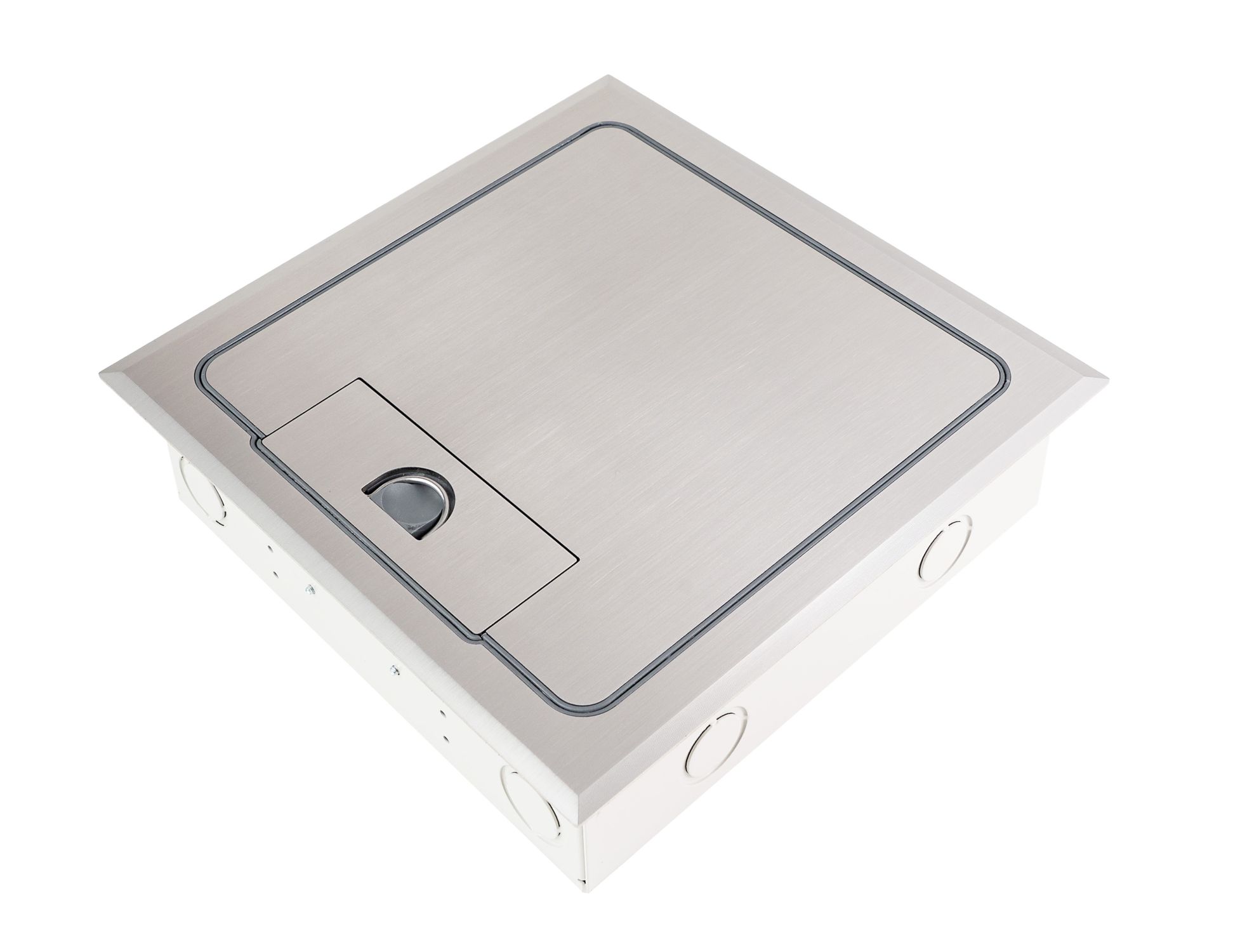

PROTECTOR™ SERIES Flush Floor Box - Flush Stainless Steel

CAT NO. FB4SF70

Capacity:

4 x single auto switched power outlets(supplied) & 6 x data mounts(supplied)

Box Size:

240 x 240 x 70mm Deep

Features:

Cable Shield™ Frame

Lid Material:

Stainless 304 – No. 4 Linished

Suitable for:

Cat. 6A & 7A Cabling

Key Features

  • Flush “Protector” Series Stainless Steel Lid and Frame with No. 4 Linished Finish.
  • ‘Protector’ Series features
    • Cable Shield™ Frame assembly  to prevent cables being cut (Patent Pending)
    • Soft close lid to stop lid from slamming shut
    • Cable retainer for easy cable management
  • Robust and large capacity cable exit flap with retractable lifting handle.

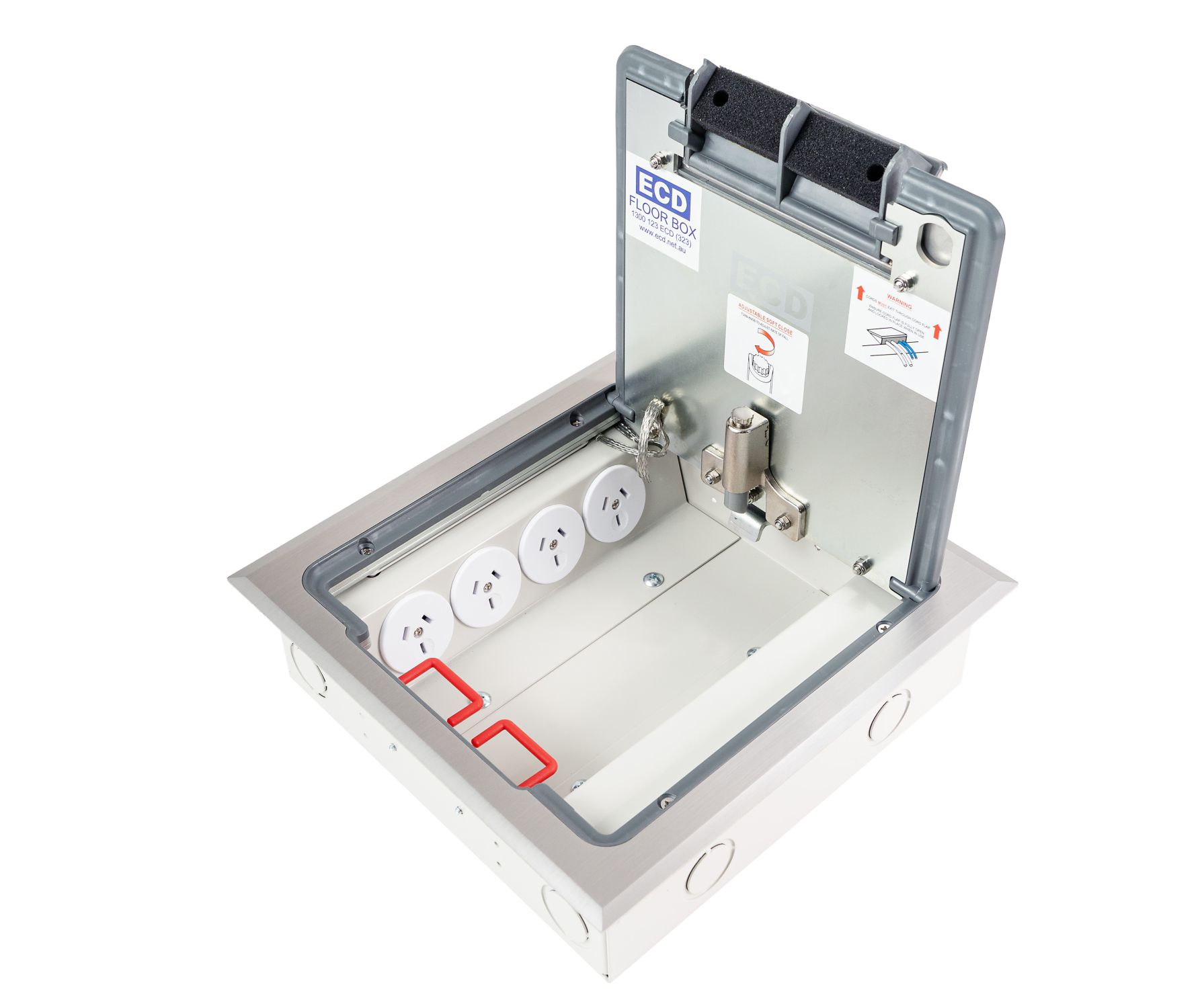

  • Capacity for 4 x single auto switched power outlets(supplied) and 6 x data bezel mounts (supplied).
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • 304 Grade Solid Stainless Steel.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD floor box range.
  • Supplied with temporary construction lid.
  • Option to fit cam lock if required.
