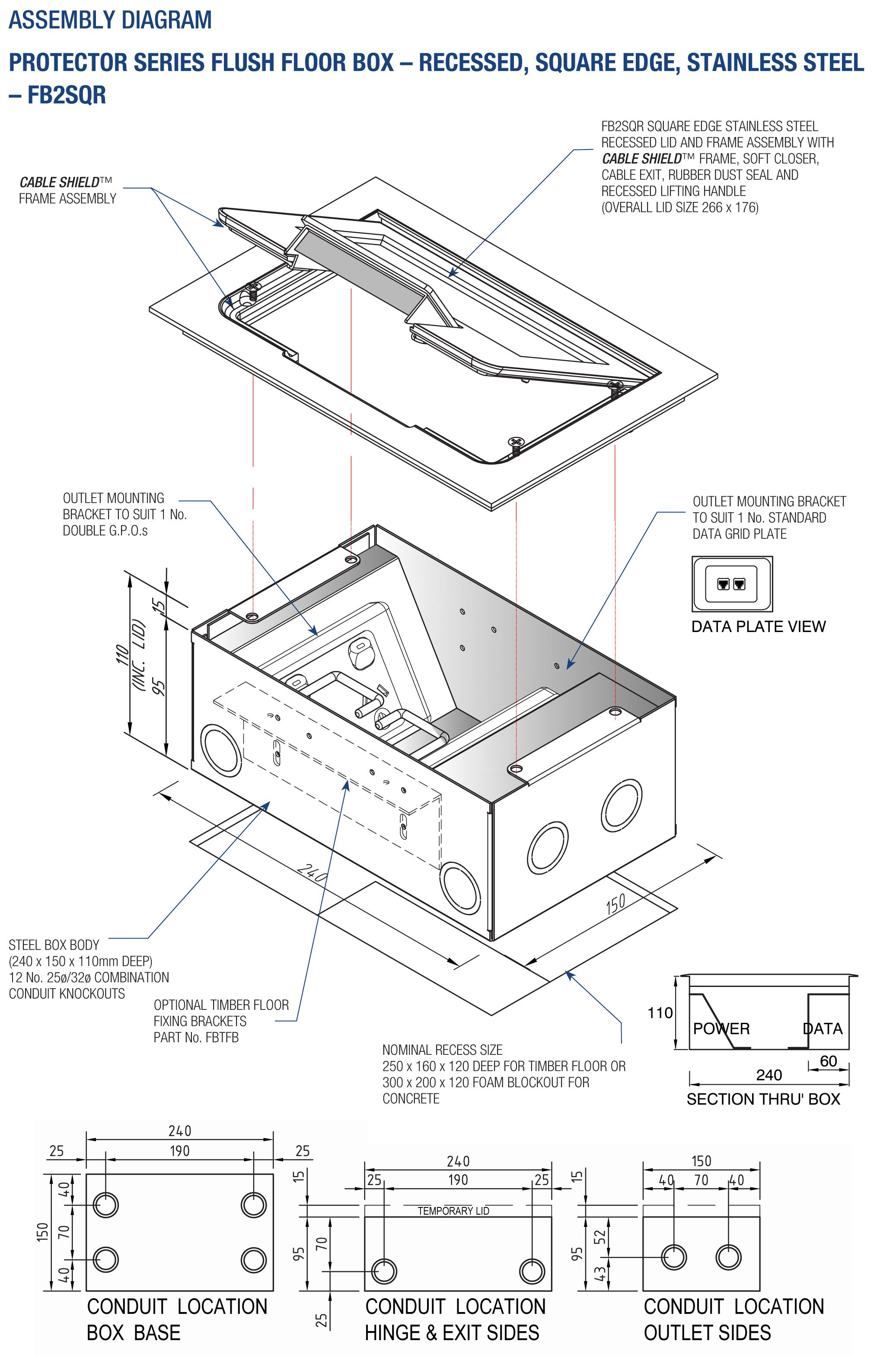

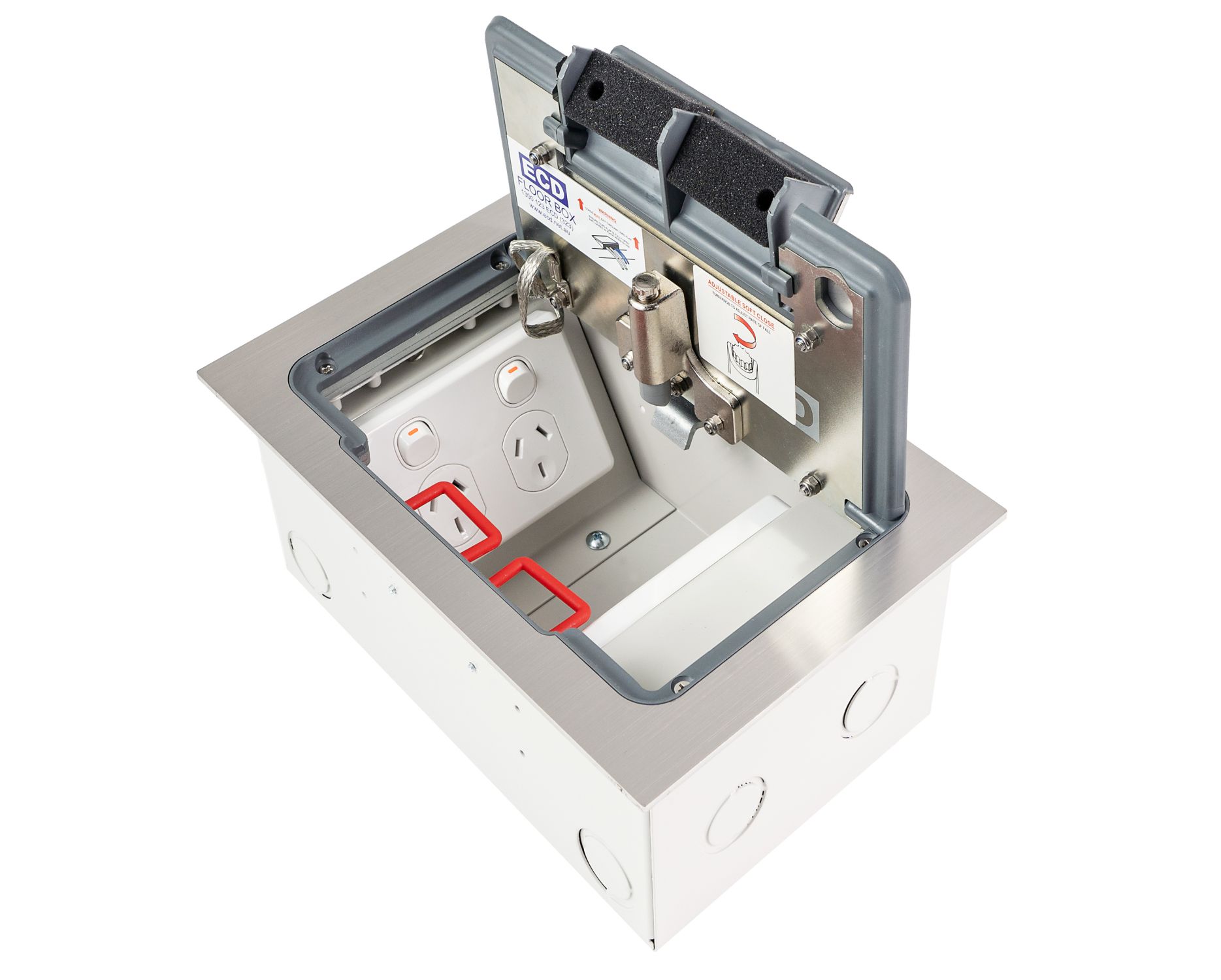

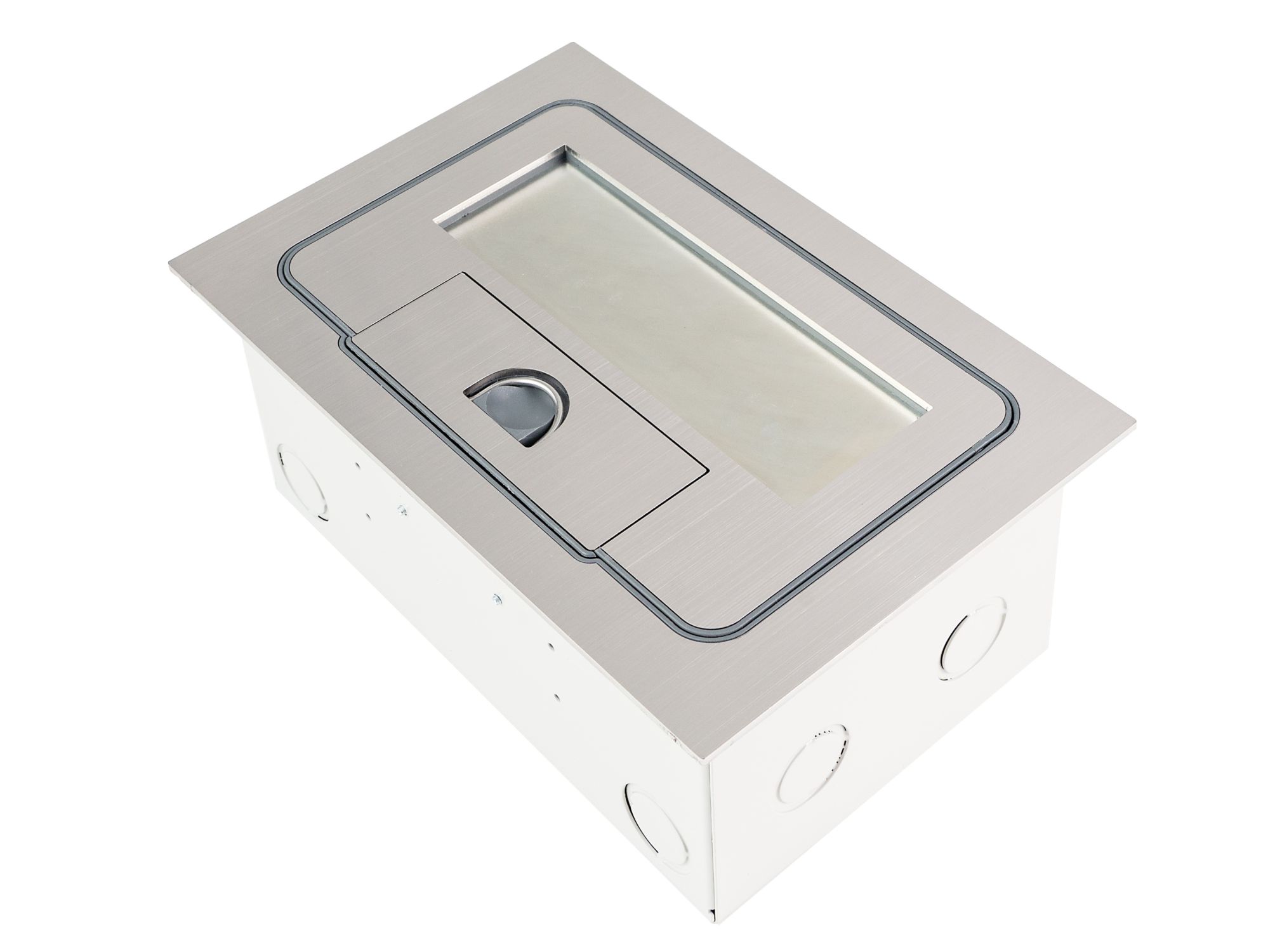

PROTECTOR™ SERIES Flush Floor Box - Square Edged Recessed Lid Stainless Steel

CAT NO. FB2SQR

Capacity:

2 standard sized plates

Box Size:

240 x 150 x 110mm Deep

Features:

Cable Shield™ Frame

Lid Material:

Stainless 304 – No. 4 Linished

Features:

6mm Deep Recess Lid

Suitable for:

Cat. 6A & 7A Cabling

Key Features

  • Square Edged Recessed Stainless Steel Lid and Frame(not bevelled) with 6mm recess for floor finish.
  • ‘Protector’ Series features
    • Cable Shield™ Frame assembly to prevent cables being cut (Patent Pending)
    • Soft close lid to stop lid from slamming shut
    • Cable retainer for easy cable management
  • Robust and large capacity cable exit flap with retracing lifting handle.
  • Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.)
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • 304 Grade Solid Stainless Steel with No. 4 linished finish.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD floor box range.
  • Supplied with temporary construction lid.
  • Option to fit cam lock if required
