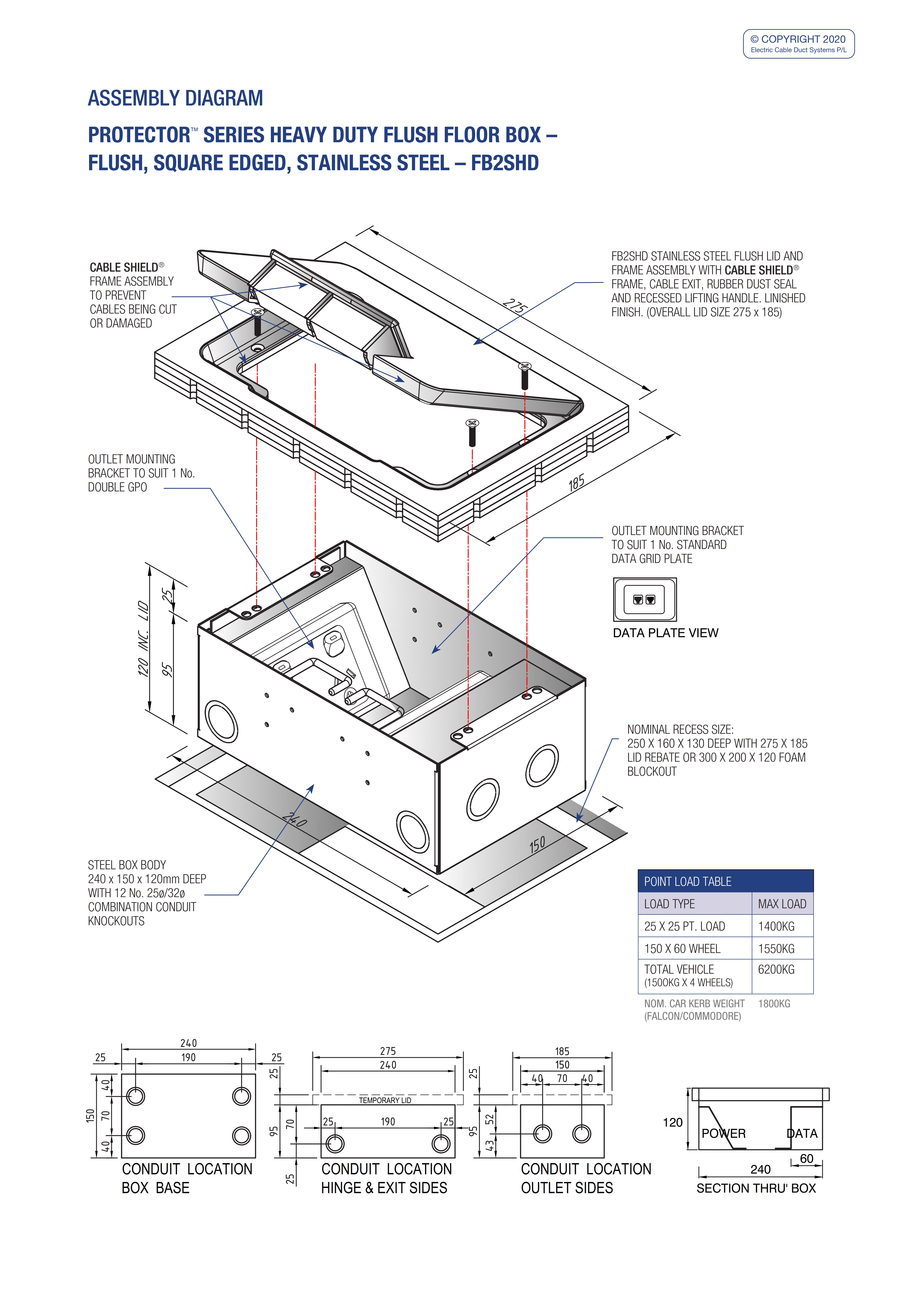

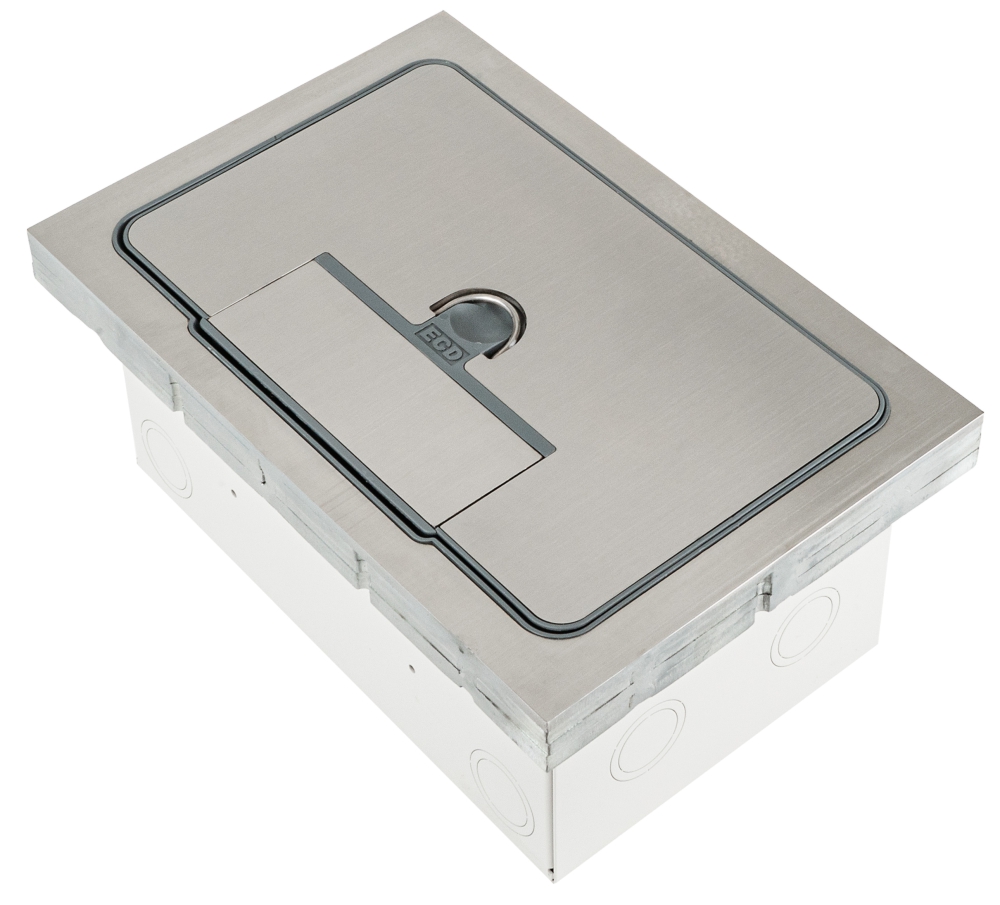

PROTECTOR™ SERIES HEAVY DUTY Flush Floor Box, Flush, Square Edged, Stainless Steel

CAT NO. FB2SHD

Features:

Load rated with Cable Shield® suitable for vehicle traffic

Capacity:

2 x standard sized plates

Box Size:

275 x 185 x 120mm Deep

Lid Material:

Stainless 304 – No. 4 Linished

Suitable for:

Cat6A &7A Cabling

Key Features

  • Heavy duty – load rated floor box suitable for vehicular traffic.
  • Ideal for car showrooms and shopping centres.
  • Flush Protector™ Series Stainless Steel lid and frame with No. 4 Linished finish.
  • Protector Series features
    • Cable Shield Frame assembly to prevent cables being cut. (Patent Certified 2017100897 & Patent Pending 2015204344)
    • Cable retainer for easy cable management.
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
  • Robust and large capacity cable exit flap with retracing lifting handle.
  • Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.).
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • 304 Grade solid Stainless Steel.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
