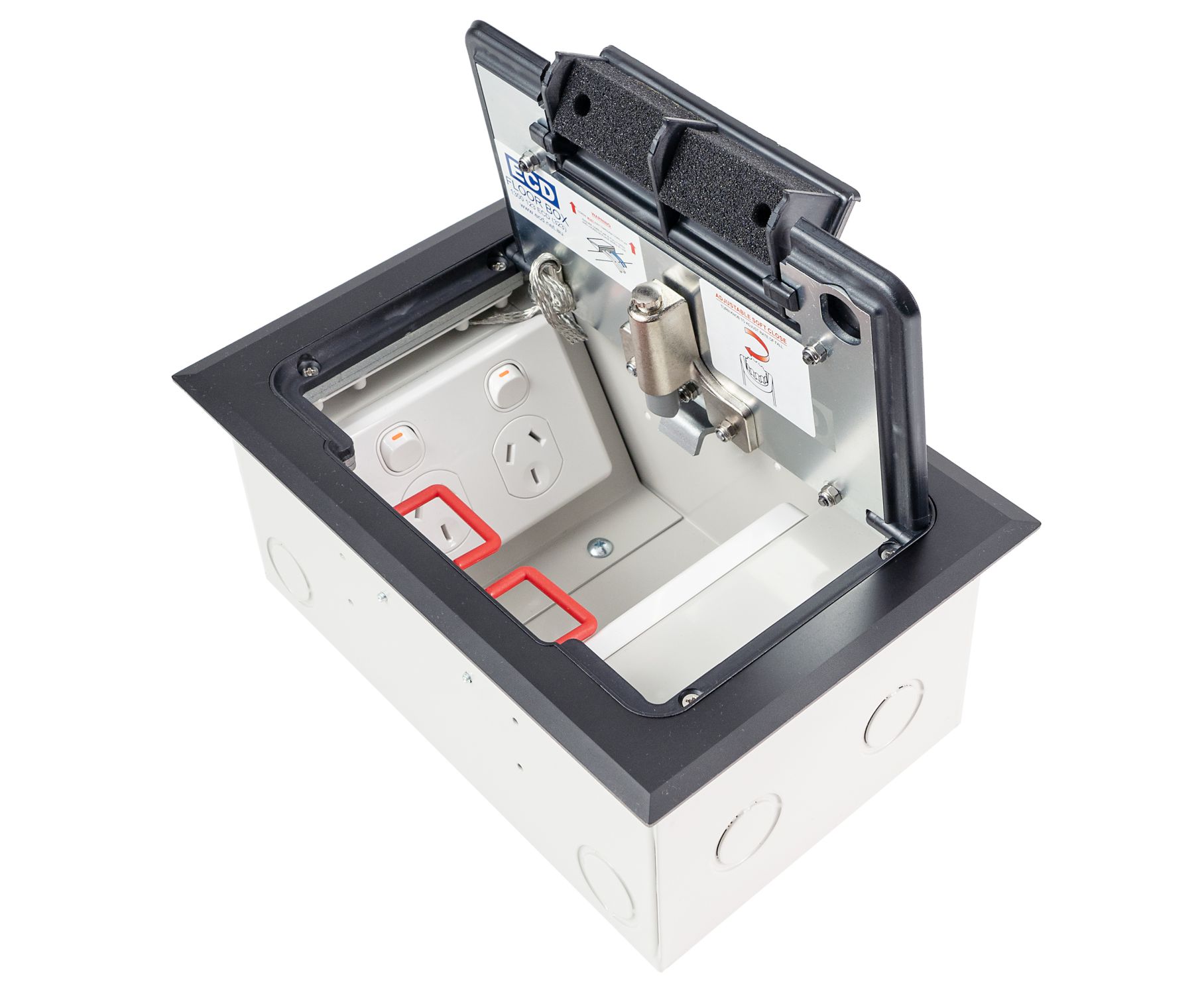

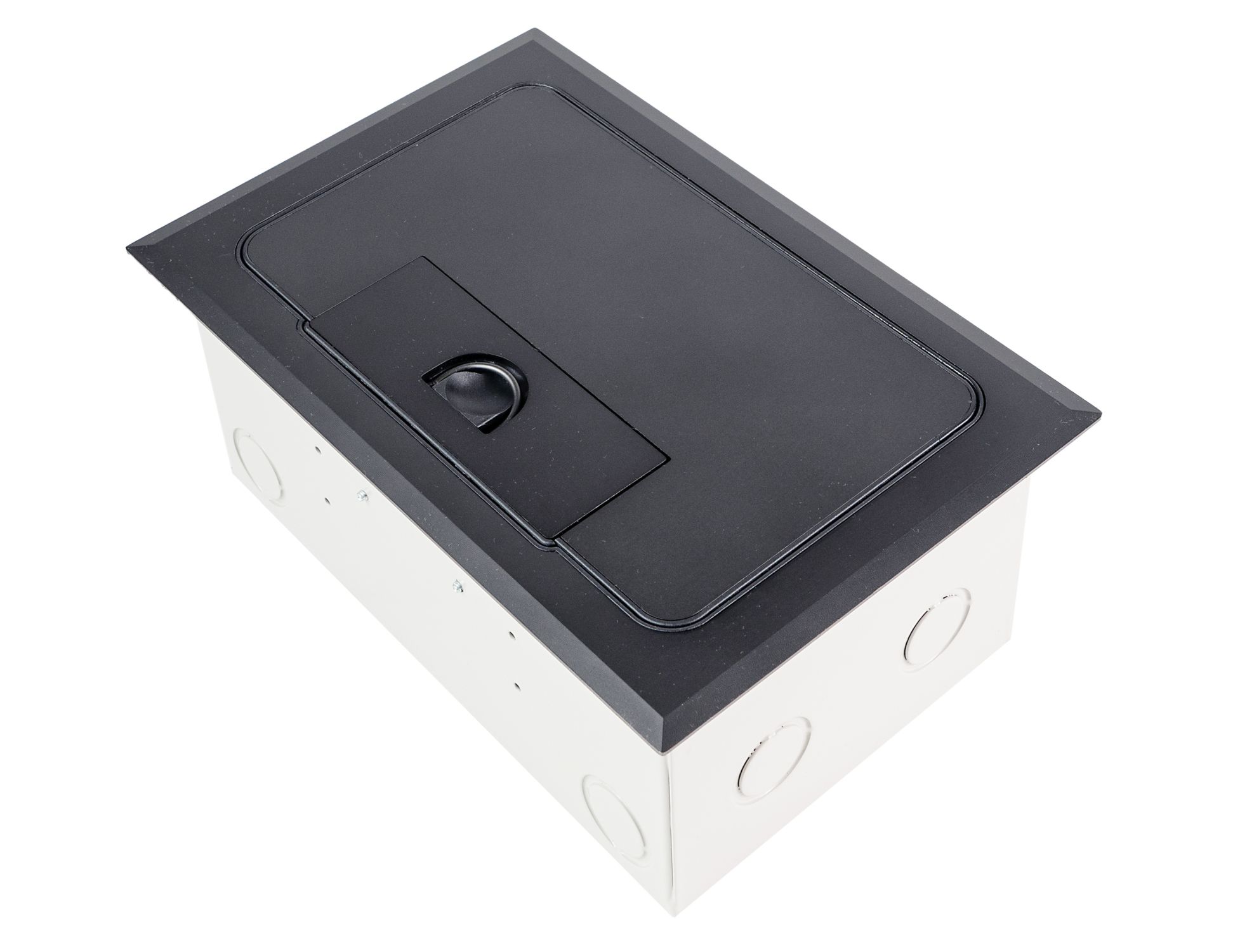

PROTECTOR™ SERIES Flush Floor Box - Flush, Black



2 standard sized plates

Box Size:

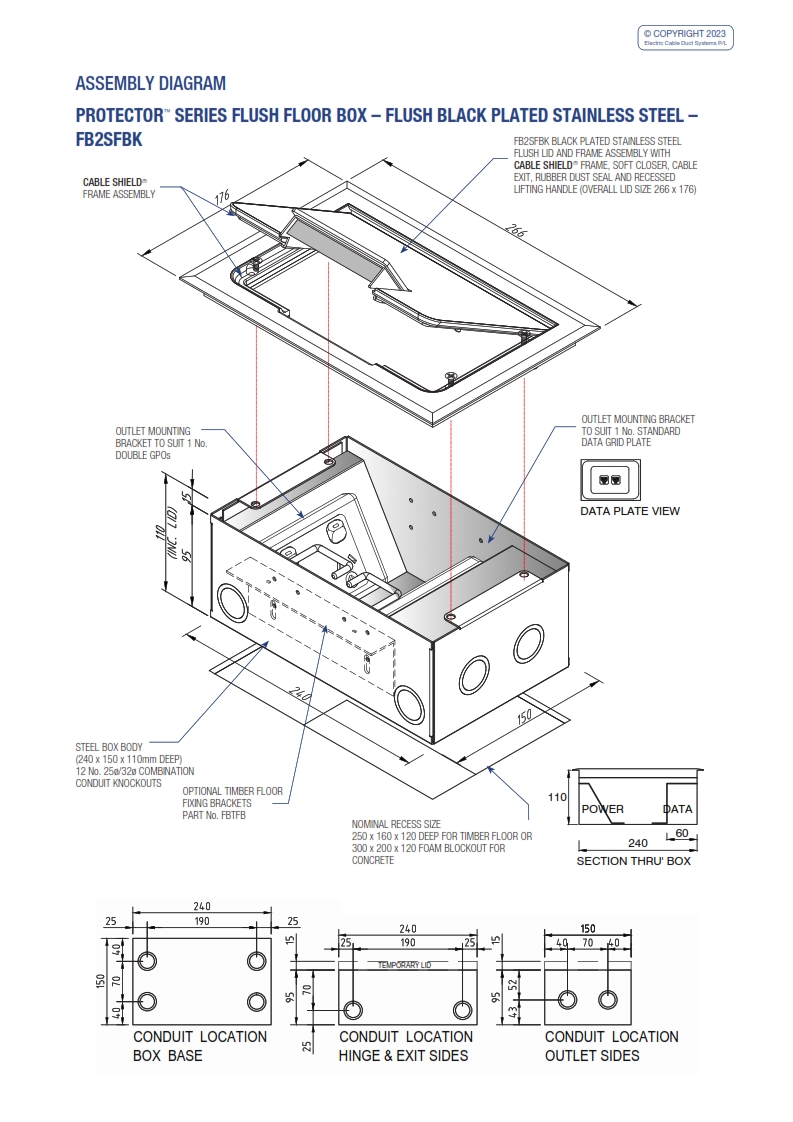

240 x 150 x 110mm Deep


Cable Shield® Frame with Soft Close Lid

Lid Material:

Stainless Steel – black plated

Suitable for:

Cat. 6A & 7A Cabling

Key Features

  • Flush Protector™ Series Black Plated Stainless Steel lid and frame.
  • Protector™ Series features
    • Cable Shield® Frame assembly to prevent cables being cut. (Patent Certified 2017100897 & Patent Pending 2015204344)
    • Soft close lid to stop lid from slamming shut
    • Cable retainer for easy cable management
  • Robust and large capacity cable exit flap with retracing lifting handle.
  • Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.)
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • 304 Grade Solid Stainless Steel – black plated.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
  • Supplied with temporary construction lid.
  • Option to fit cam lock if required.
