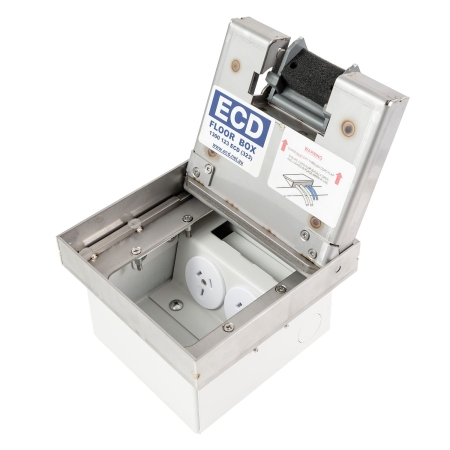

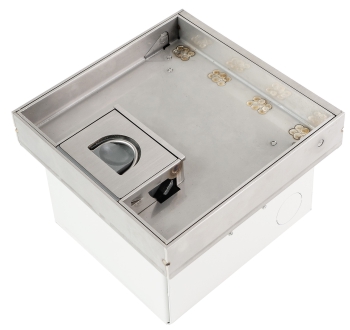

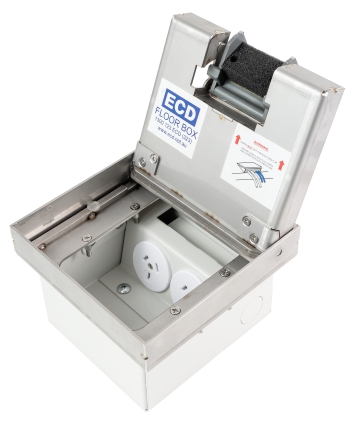

Stainless Steel Floor Box - 20mm Deep Recessed



2 x single auto switch power outlets

Box Size:

150 x 150 x 97mm Deep

Lid Material:

Stainless Steel

Lid Rebate:

20mm Deep

Suitable for:

Compact Installations

Load Rating:

120 kg (per foot = foot traffic)

Key Features

  • A versatile, practical and decorative solution for your open plan cabling needs.

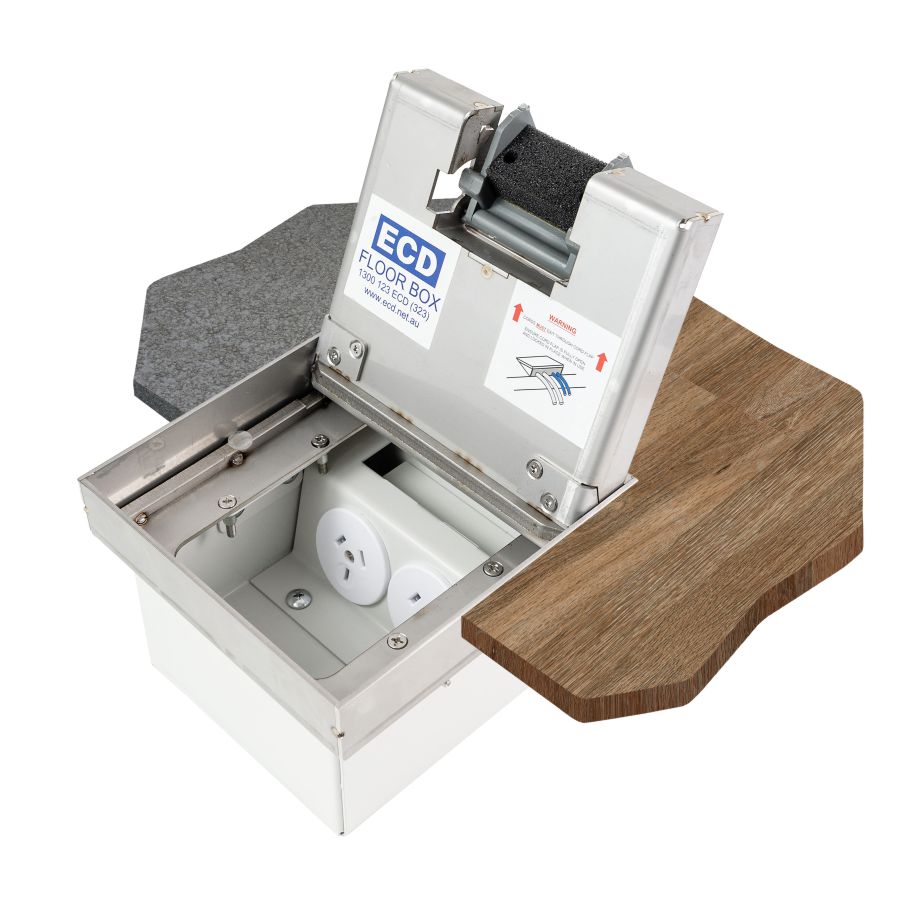

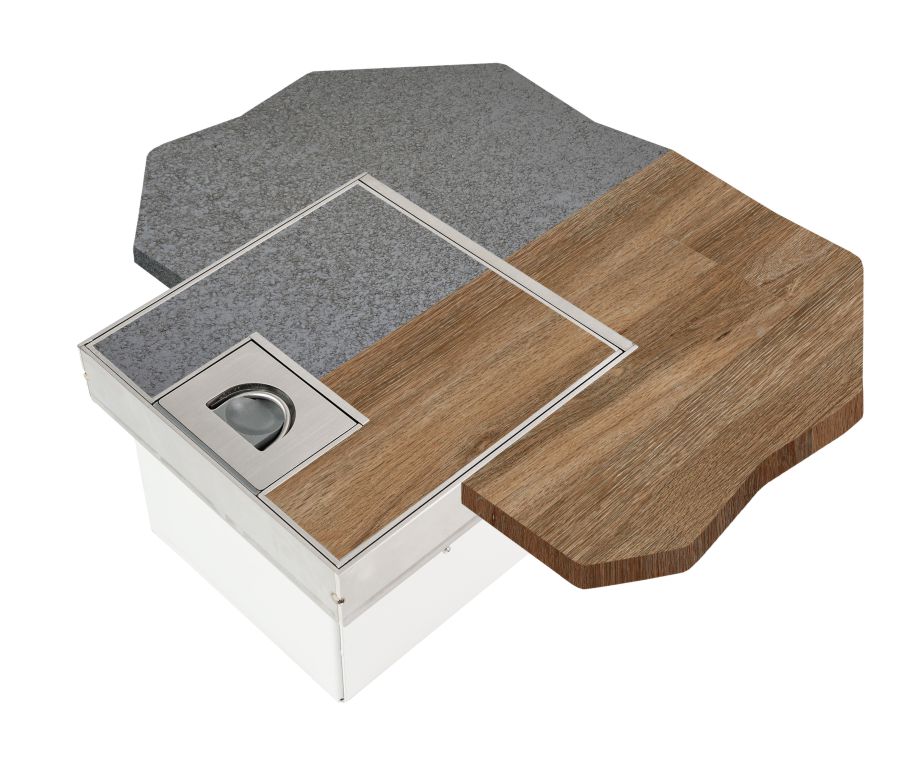

  • Recessed stainless steel lid and frame with 20mm rebate for floor finish        (typically polished timber boards or ceramic tiles).
  • Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
  • 304 Grade solid stainless steel lid construction with No. 4 Linished finish.
  • Robust cable exit flap with Cable Shield® and stainless steel lifting handle.
  • Capacity for 2 x single auto switch power outlets (supplied).
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with
    AS 3000 and conforms to A.C.M.A. requirements.
