Stainless Steel Floor Box - 20mm Deep Recessed Lid

CAT NO. FB149

Capacity:

1 standard size GPO
1 No. 3 Gang Data Plate

Box Size:

150 x 150 x 120mm Deep

Lid Material:

Stainless Steel

Lid Rebate:

20 mm Deep

Suitable for:

Compact Installations

Key Features

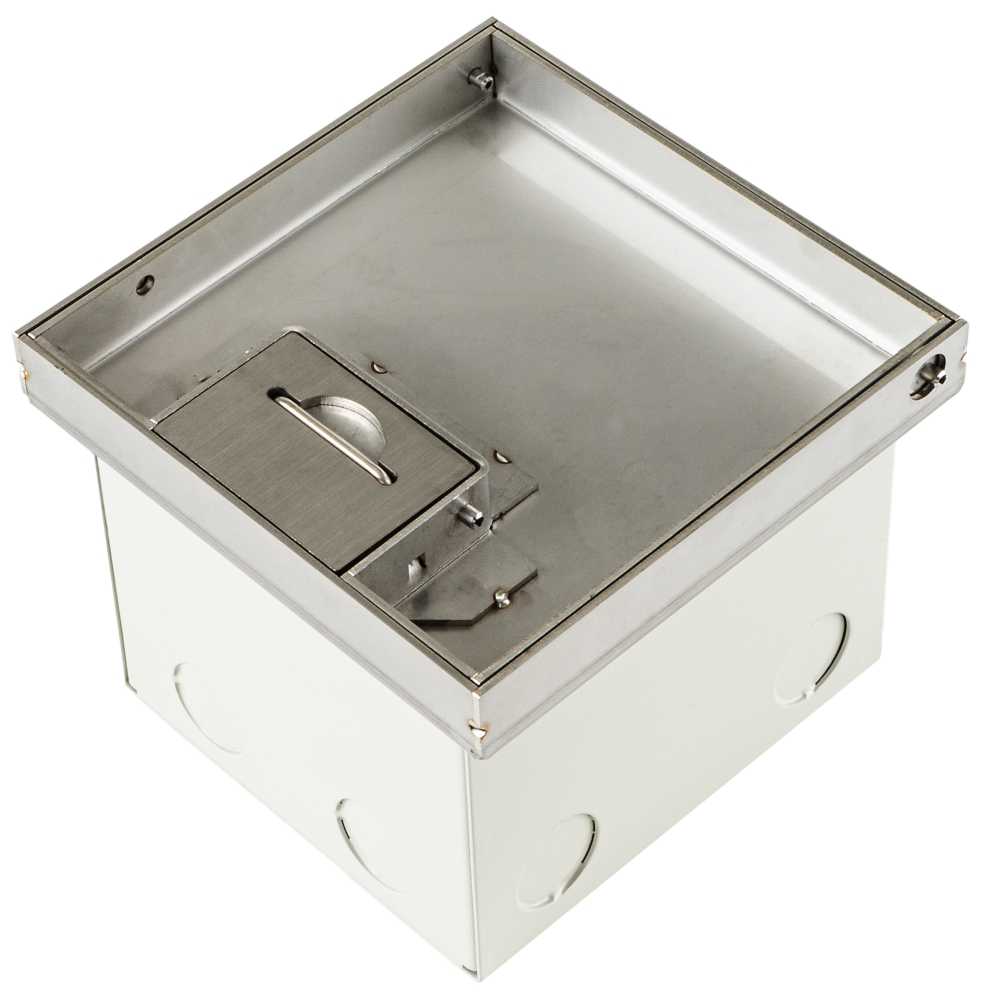

  • Recessed Stainless Steel lid and frame with 20 mm rebate for floor finish (typically polished timber boards or ceramic tiles).
  • Suitable for use in: Modern open plan living areas, home theatres, showrooms, shop-front displays, schools, universities, and public buildings.
  • Available in Stainless Steel, the hard wearing 150 x 150 mm lid installs flush, provides minimum disruption to the floor finish and is suitable for use with polished floor boards, carpet, ceramic tiles and vinyl floor coverings (not suitable for use in wet areas).

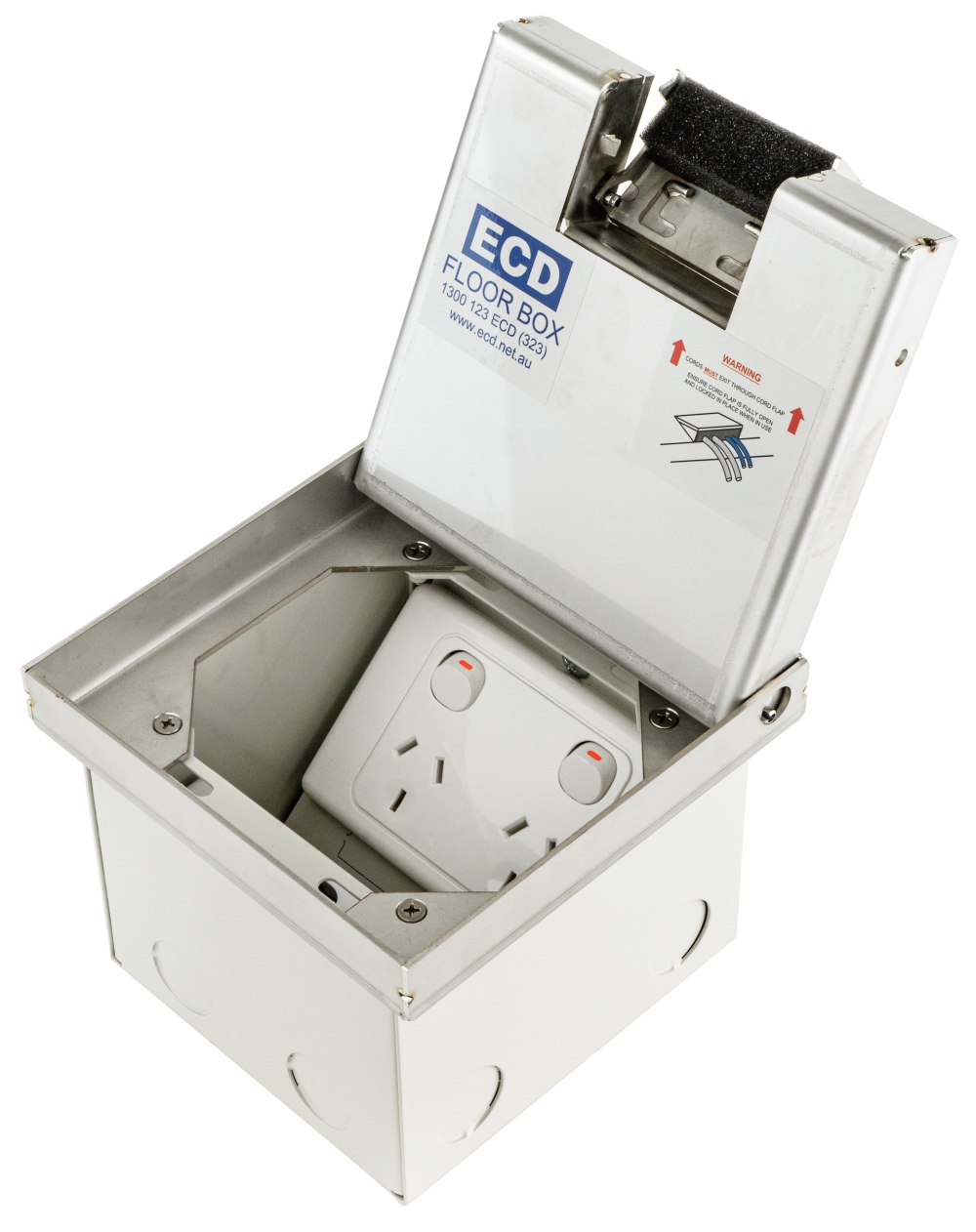

  • Capacity 1 x double GPO and 3 x Data (grid plate supplied).
  • The cable exit flap allows cables out of the box when in use and closes flat when not in use.
  • A versatile, practical and decorative solution to your open plan cabling needs.
  • Supplied with temporary construction lid.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
