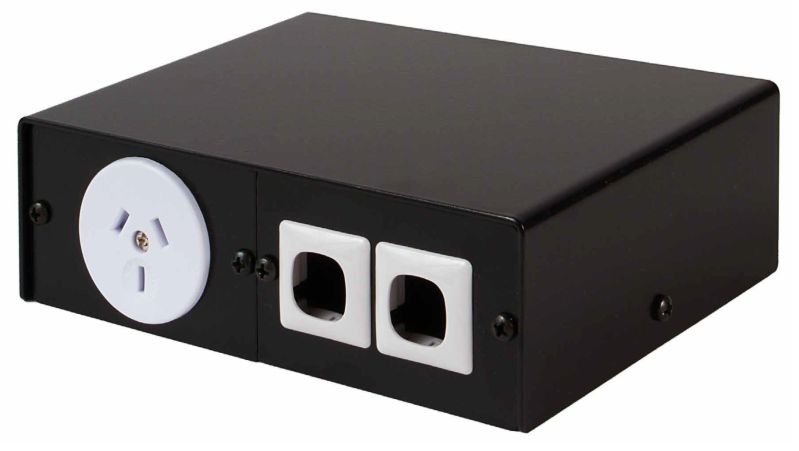

Above Floor Box



167 x 127 x 50mm


1 x Universal 10/15 Amp single GPO & 2 x Data mounts

Stock Colours:

Black and Natural Anodised

Key Features

  • Low profile, surface mounted floor box designed specifically for the fitness industry.
  • Can be used in conjunction with AFD35 Above Floor Duct or as a stand alone floor box.

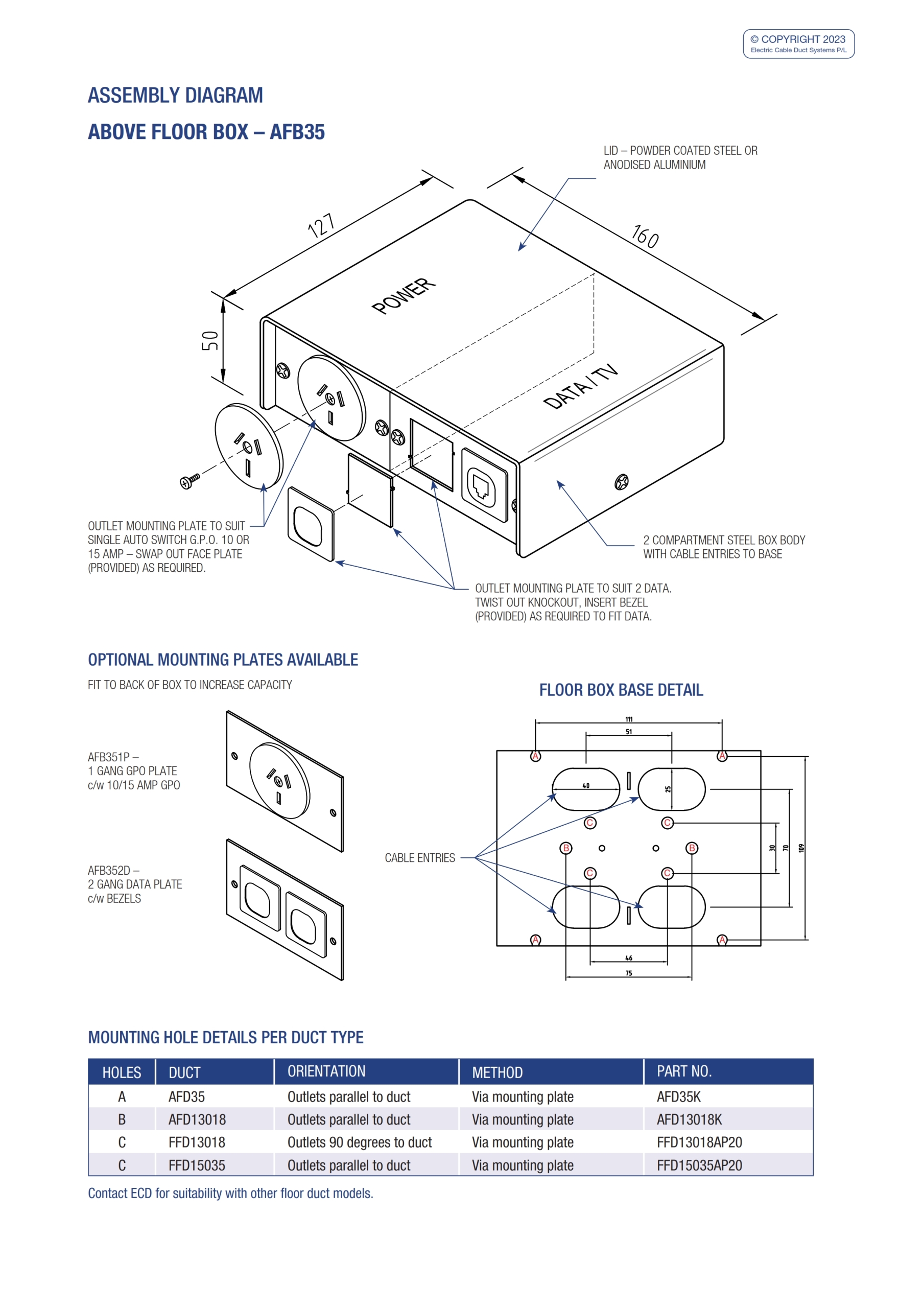

  • Also suitable for mounting on other ECD floor ducts. Refer to assembly diagram for corresponding models.
  • Standard arrangement 1 x Universal 10/15 Amp single auto switch GPO (supplied) and 2 x data mounts (bezels supplied).
  • Custom configurations available through optional mounting plates. Refer assembly diagram for some of the mounting plates available.
  • Flexible power, data and TV plates within a small box.
  • Suitable for Category 6 data cabling and TV outlets.
  • Robust steel construction.
  • Powder coat finish in standard colour black. Other colours are available to order.
  • Also available in Natural Anodised (aluminium cover and mounting plates).
  • This product has been examined in accordance with AS 3000 and conforms to A.C.A. requirements.
