Above Floor Box

CAT NO. AFB20/2

Size:

110 x 140 x 250 mm

Outlets:

4 standard size plates

Stock Colours:

Black, White and APO Grey, Natural Anodised and Stainless Steel View Colours

Key Features

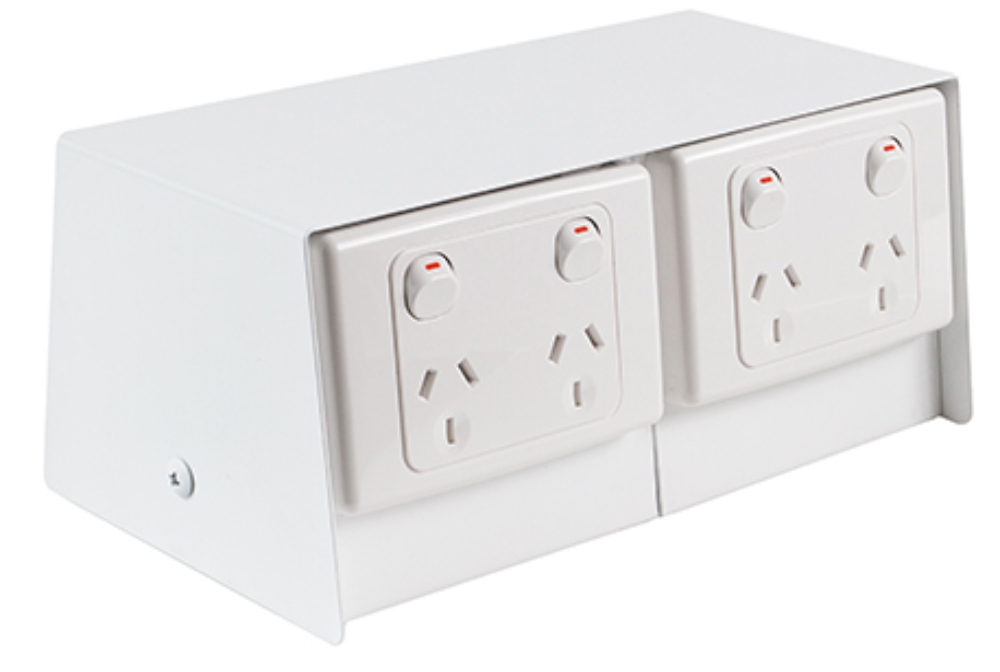

  • Capacity for 4 standard outlet plates (2 x double power & 2 x Data and/or A.V.).
  • Strong powder coated steel construction.
  • Maximum power and voice/data plates within a small box.
  • Suitable for Category 6A data cabling.
  • Multiple box combinations to any size module can be made to order.
  • Suitable for mounting on both floor and bench applications.

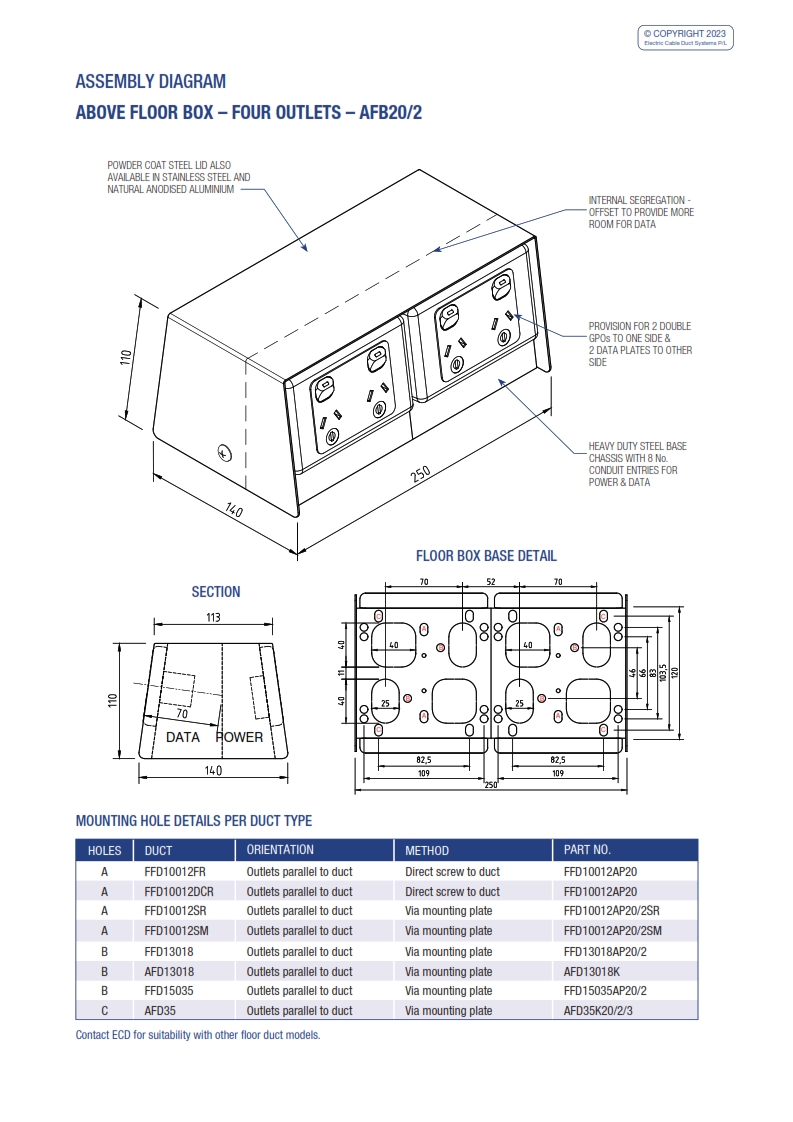

  • Suitable for mounting on ECD floor ducts. Refer to assembly diagram for corresponding models.
  • Powder coat finish. Standard colours are Black, White and APO Grey.
  • Also available in Natural Anodised and Stainless Steel – 304 No. 4 Linished finish.
  • This product has been examined in accordance with AS 3000 and conforms to A.C.A requirements.
