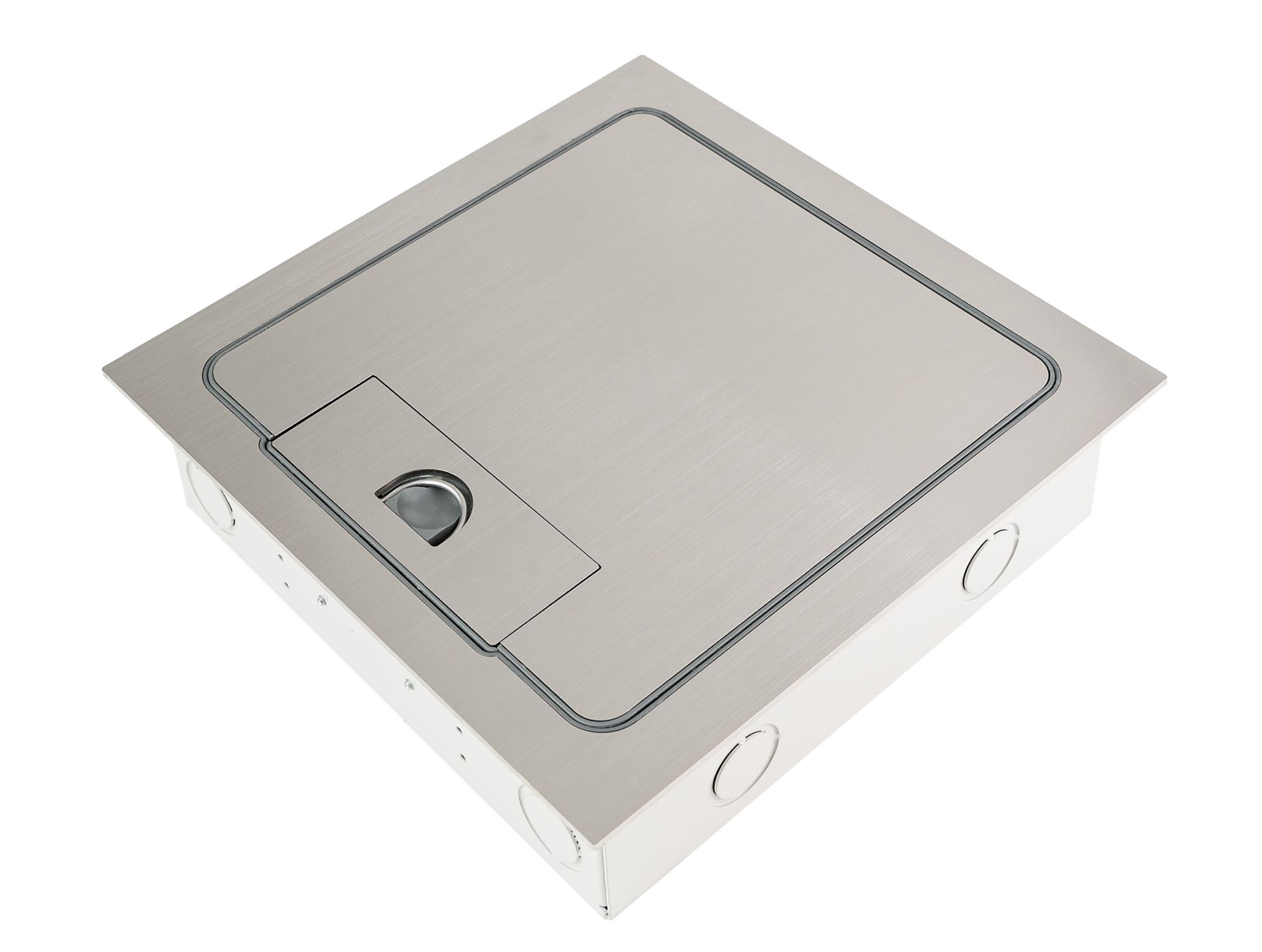

PROTECTOR™ SERIES Flush Floor Box - Flush, Square Edged, Stainless Steel
CAT NO. FB4SQF70
4 x single auto switched power outlets and 6 x data mounts.
240 x 240 x 70mm Deep
Cable Shield™ Frame
Stainless 304 – No. 4 Linished
Cat. 6A & 7A Cabling
- Flush “Protector” Series Stainless Steel Lid and Frame with No. 4 Linished Finish.
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
- ‘Protector’ Series features
- Cable Shield™ Frame assembly to prevent cables being cut (Patent Pending)
- Soft close lid to stop lid from slamming shut
- Cable retainer for easy cable management
- Robust and large capacity cable exit flap with retractable lifting handle.

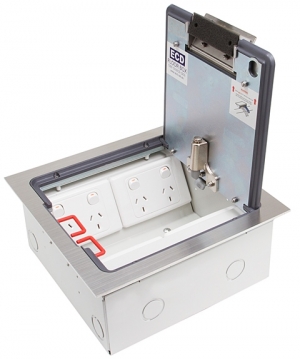

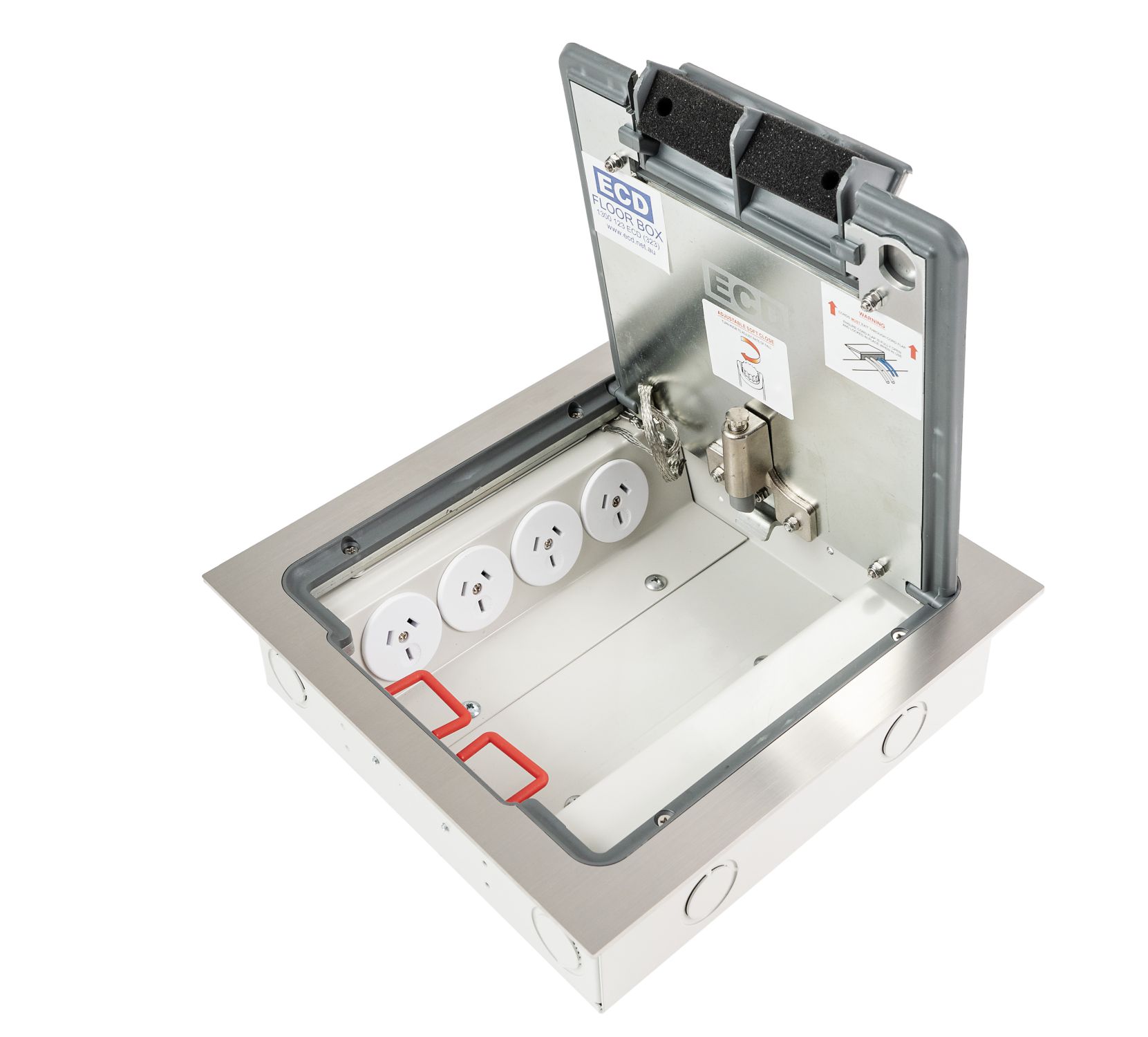

- Capacity for 4 x single auto switched power outlets and 6 x data mounts.
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade Solid Stainless Steel
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required.
