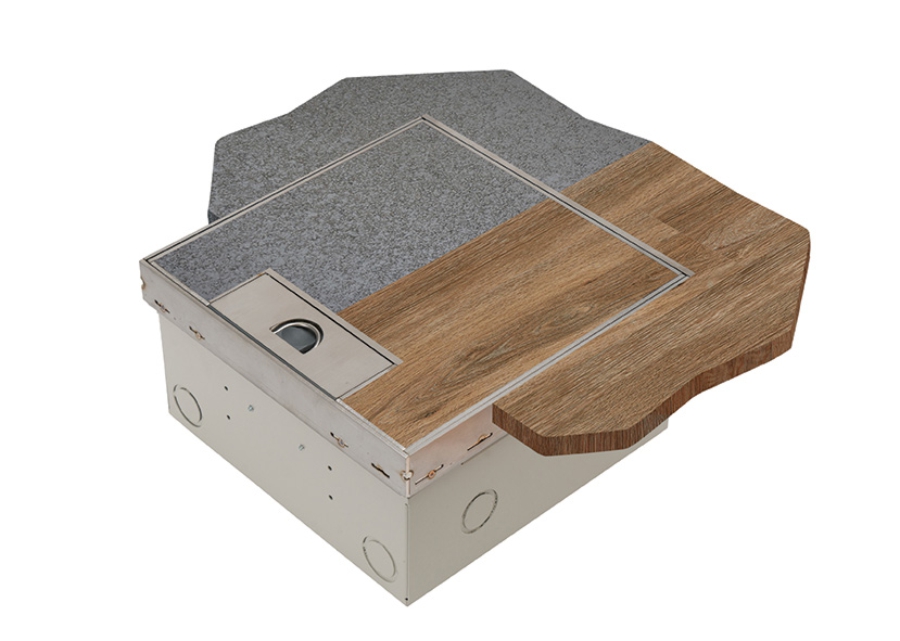

Flush Floor Box - Deep Recessed, Stainless Steel, Soft Close
CAT NO. FB4SDR (S/Steel, Deep Recess)
| Capacity: | 4 standard sized plates |
| Box Size: | 250 x 250 x 133mm deep |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Lid Recess: | 20mm deep |
| Suitable for: | Cat6A & 7A Cabling |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features
- Recessed stainless steel lid and frame with 20mm rebate for floor finish (typically polished timber boards or ceramic tiles).
- 304 Grade solid stainless steel lid construction with No. 4 Linished finish.
- Adjustable Soft Closer to control lid closure – suits floor finish inserts up to 1kg (eg. timber packer & carpet or full timber).
- Optional Gas Strut kit available to suit heavier floor finish inserts from 2kg (eg. ceramic tile) up to 4kg (eg. stone). Custom heavier Gas Strut kits available to order.
- Frame has square edges (not beveled) to allow flush fitting to adjacent floor finish.
- Height adjustable lid and frame.
- Robust, large capacity cable exit flap with CableShield® and stainless lifting handle.
- Option to fit cam lock if required.

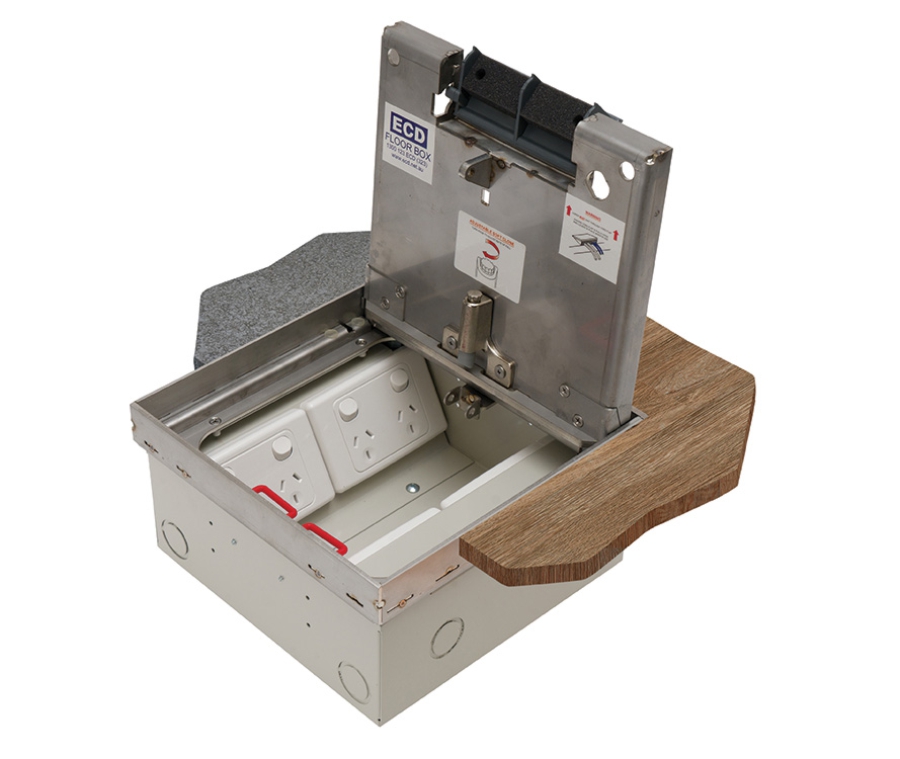

- Capacity for 4 standard outlet plates (2 x double power and 2 x Data and/or A.V.).
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
