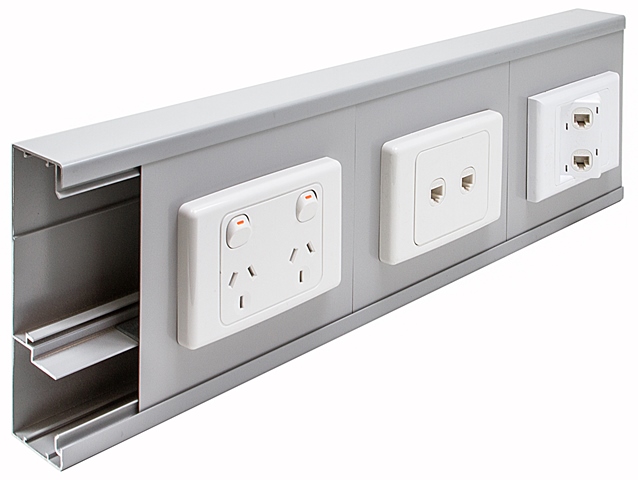

ECD 'Elite Series' Skirting Duct

CAT NO. EL15050D

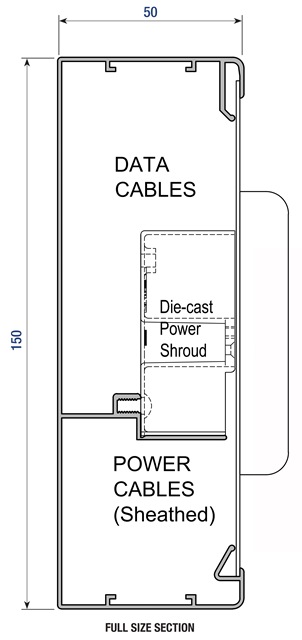

Size:

150x50mm, 3m Lengths

Stock Colours:

Grey, Black, White & Natural Anodised View Colours

Suitable for:

Category 6 and 6A Cabling

Cable Capacity:

See below

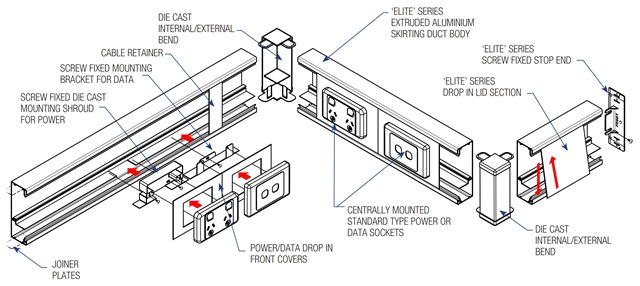

Key Features

  • Suitable for categroies 6 and 6A data cabling.
  • Drop In cover (also available with “Clip In” cover).
  • Extruded aluminium body.
  • All outlets centrally mounted (suits power packs).
  • Die-cast power shroud (easy fitting).
  • Spacious data “fit-off” zone.
  • Die-cast external/internal bends.
  • Conforms to AS3000 and A.C.M.A. requirements.
  • Non standard powdercoat colours available.
  • Bend radius available.
  • Optional divider (2 or 3 division).
  • Fully or semi recessed trims available.
