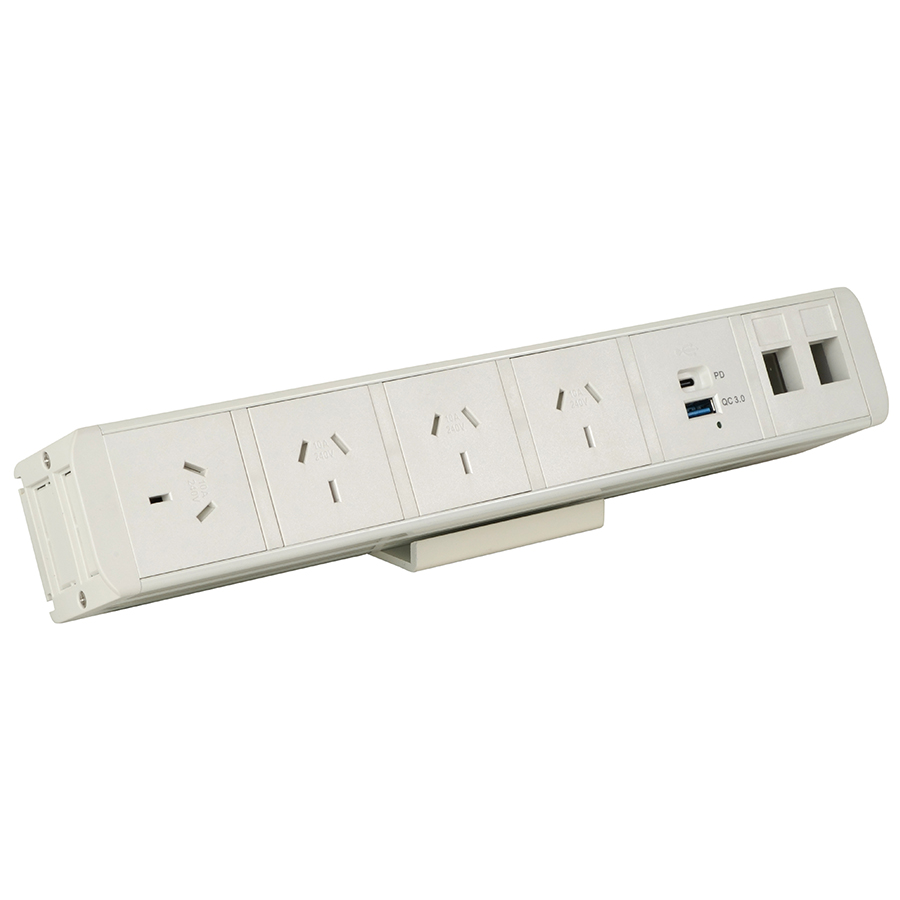

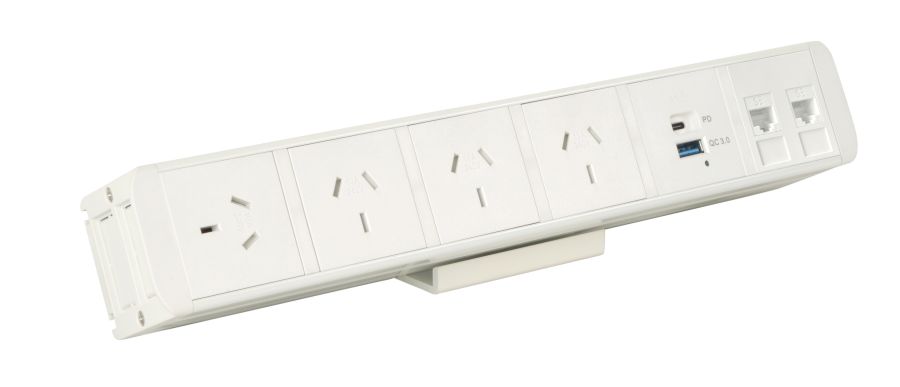

CAT NO. DTL4PUAC652D – Link Series

Key Features

■     Stylish and refined, this above & below desk rail for power and USB clamps                   directly onto the desk.
■     Capacity 4 x GPO, USB A/C fast charger module (65W shared),                                         and 2 x data mounts – suits Keystone Jacks.
■     Supplied with 1000 mm in/out soft wiring connector lead with tee coupler.
■     Optional power feed available – soft wired connector to 3-pin plug                                   (ECDCL1800TOL)

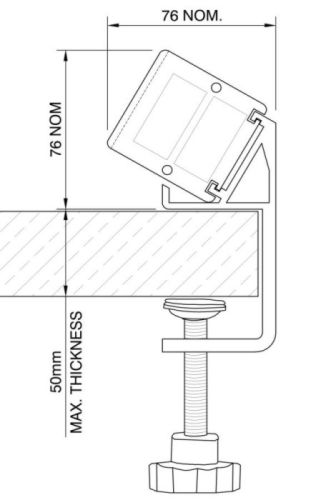

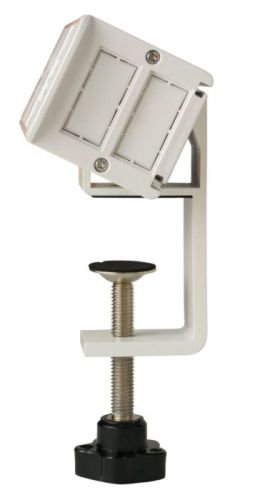

■     Fixing clamp supplied – maximum desktop thickness 50 mm.
■     Can be mounted below the desk, suitable mounting brackets available on                       request, use code DTLB.
■     Solid extruded aluminium body and clamp, standard colour white.
■     Size 55 x 55 x 324 mm.
■     Compatible with ECD Soft Wiring System.
■     Other configurations available to order.
