Bench Pedestal

CAT NO. BP70/2

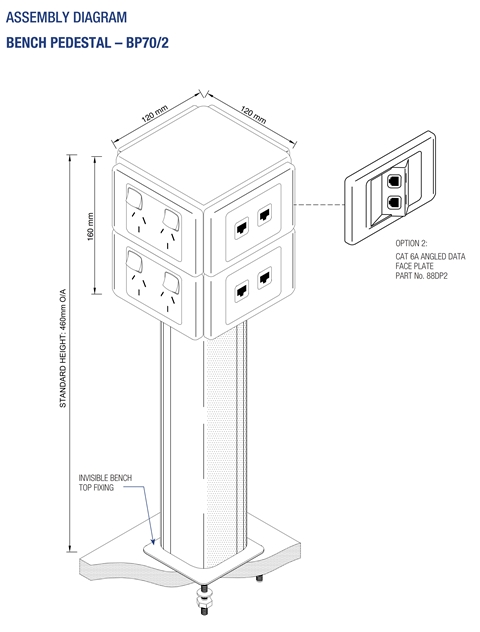

Head Size:

120 x 120 x 160mm

Post/Riser Size:

70 x 70 x 300mm


Standard Size
Max. 8 No. Outlets

Stock Colours:

White View Colours

Key Features

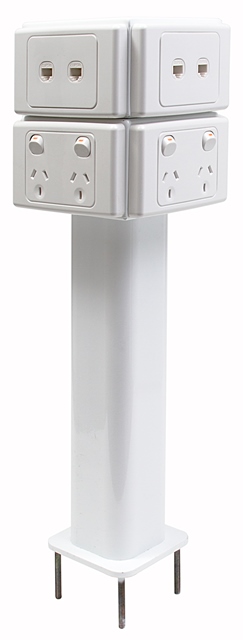

  • The BP70/2 Pedestal is designed to be mounted to a bench top where wall fixing is not possible.
  • The BP70 Pedestal housings are fabricated from mild steel with edges welded and ground smooth to a quality finish ready for powder coating gloss white. (Standard Colour)
  • The upstand column is a “squound” shaped extruded aluminium section, invisibly secured to the bench with a metal foot plate having 4 off M6 studs 45mm long.
  • Cable access is via a 50mm access hole in the foot plate.
  • Designed to accommodate 8 No. standard size outlets and can be segregated for power and voice/data.
  • This product has been examined in accordance with AS 3000 and A.C.A. requirements.
  • Suitable for Category 6A data cabling.
  • Made in Australia.
