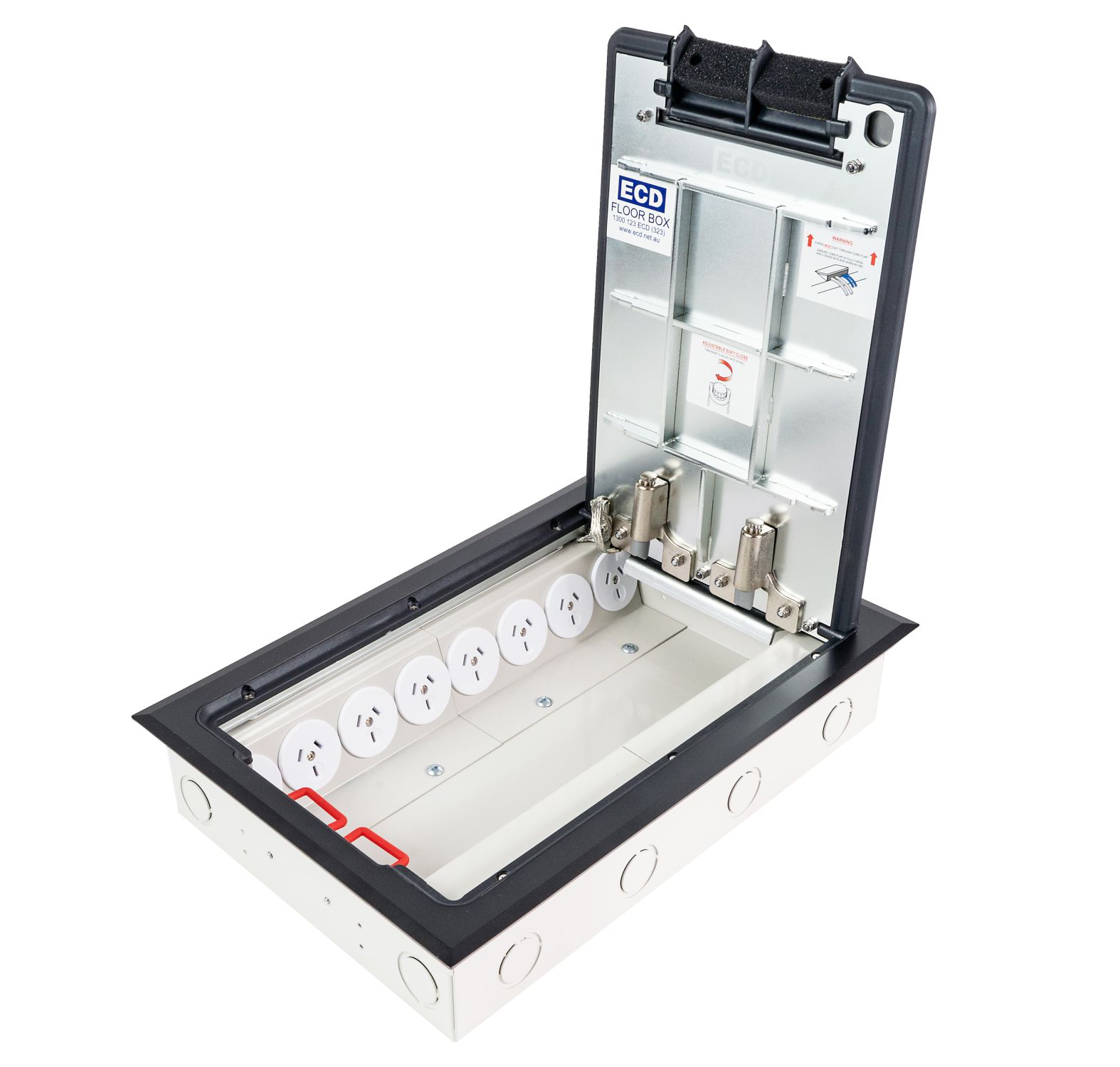

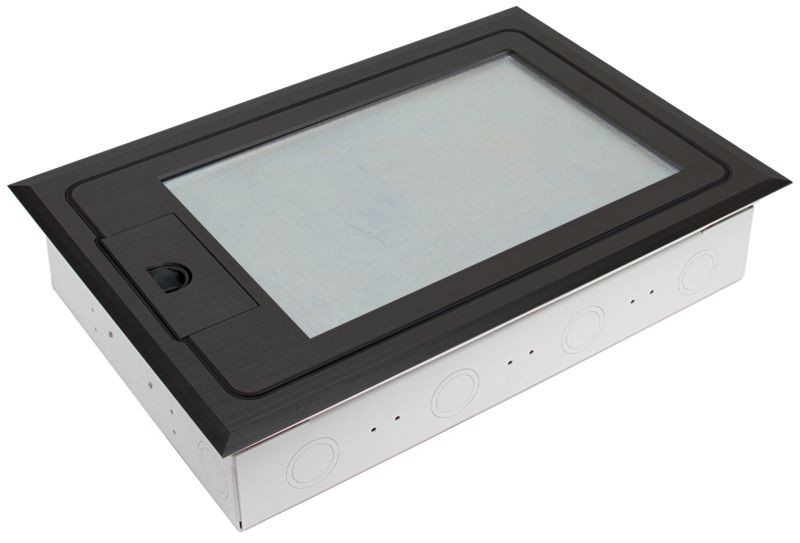

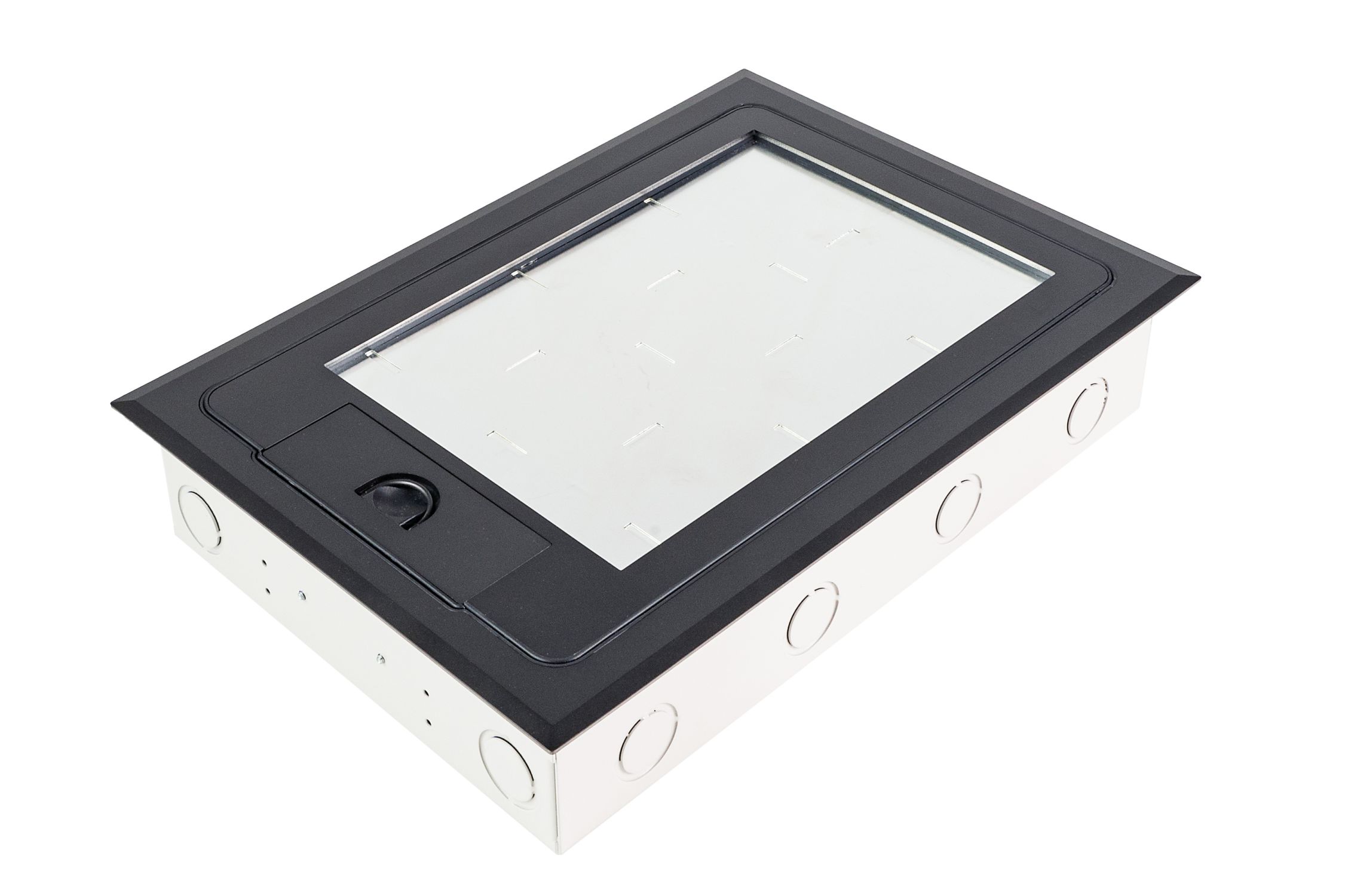

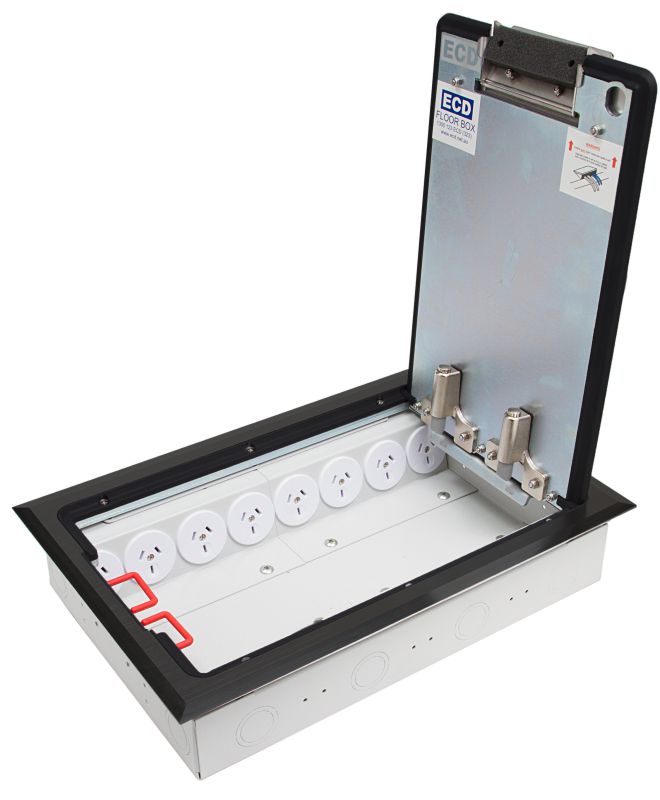

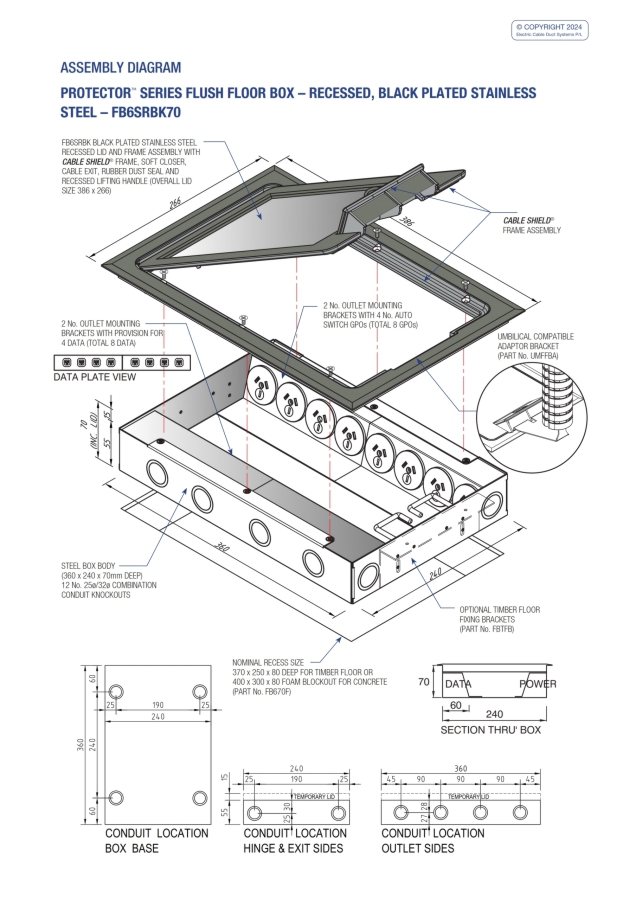

PROTECTOR™ SERIES Flush Floor Box - Recessed, Black

CAT NO. FB6SRBK70

Capacity:

8 x single auto switched power outlets and 8 x data mounts.

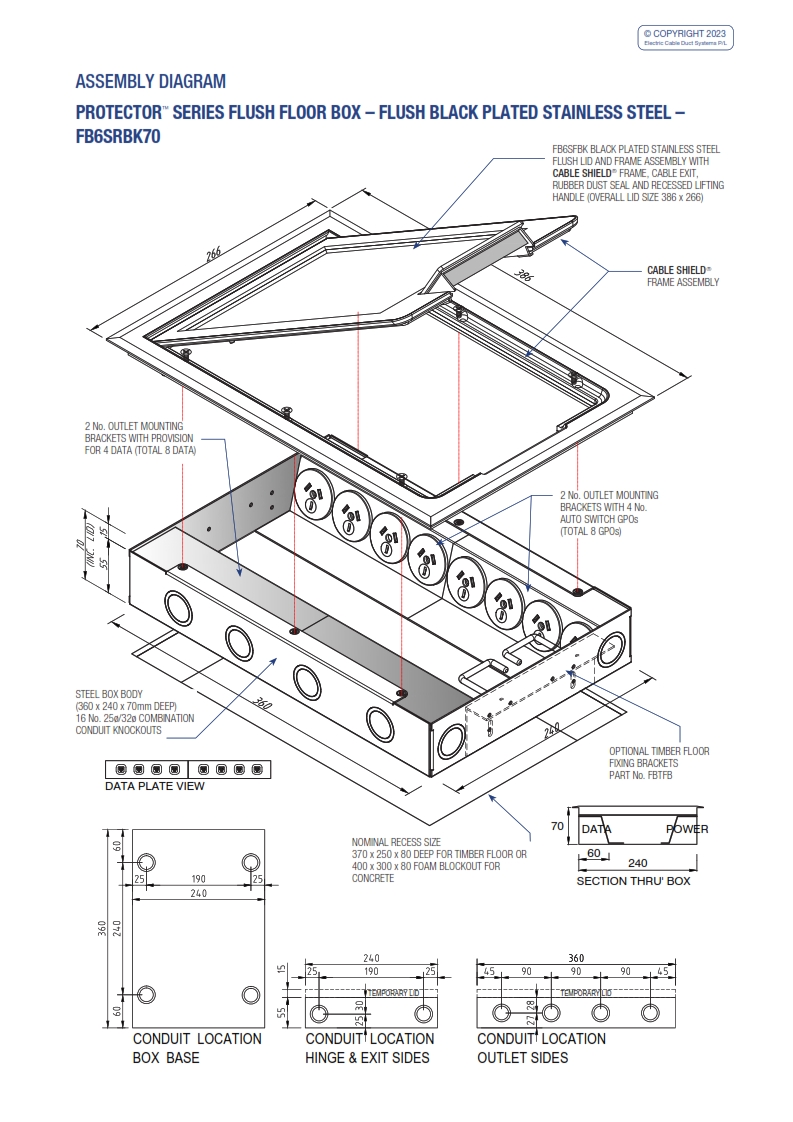

Box Size:

360 x 240 x 70mm Deep

Features:

Cable Shield® Frame with Soft Close Lid

Lid Material:

Stainless Steel – black plated

Recess:

6mm Deep

Suitable for:

Cat. 6A & 7A Cabling

Key Features

  • Recessed Protector™ Series Black Plated Stainless Steel lid and frame with 6mm rebate for floor finish (typically carpet or vinyl).
  • Protector™ Series features
    • Cable Shield® Frame assembly to prevent cables being cut. (Patent Certified 2017100897 & Patent Pending 2015204344)
    • Soft close lid to stop lid from slamming shut
    • Cable retainer for easy cable management
  • Robust and large capacity cable exit flap with retractable lifting handle.
  • Capacity for 8 x single auto switch power outlets and 8 x data mounts.
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • 304 Grade Solid Stainless Steel – black plated.
  • Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
  • Supplied with temporary construction lid.
  • Option to fit cam lock if required.
