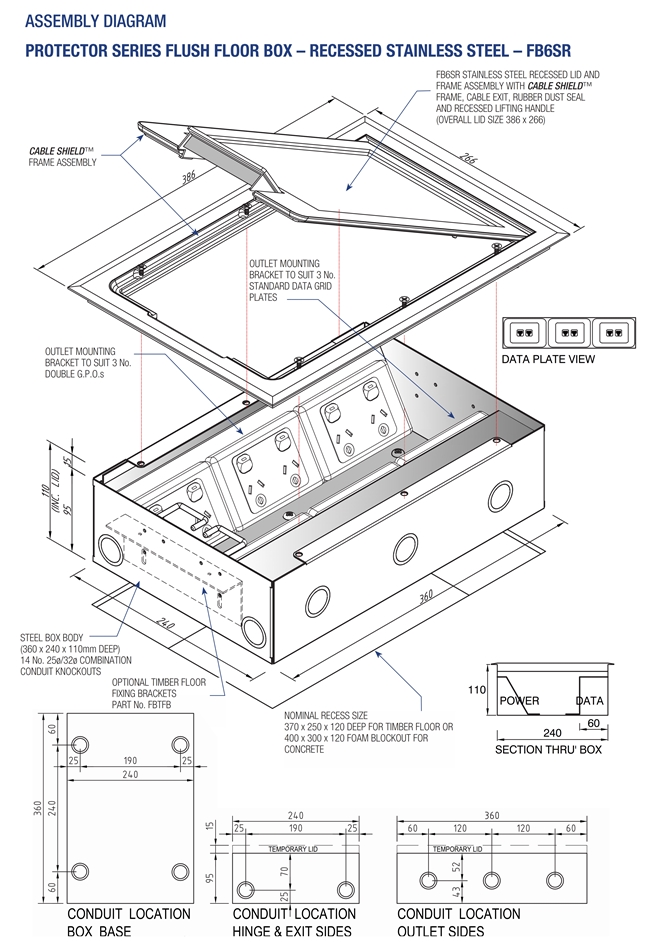

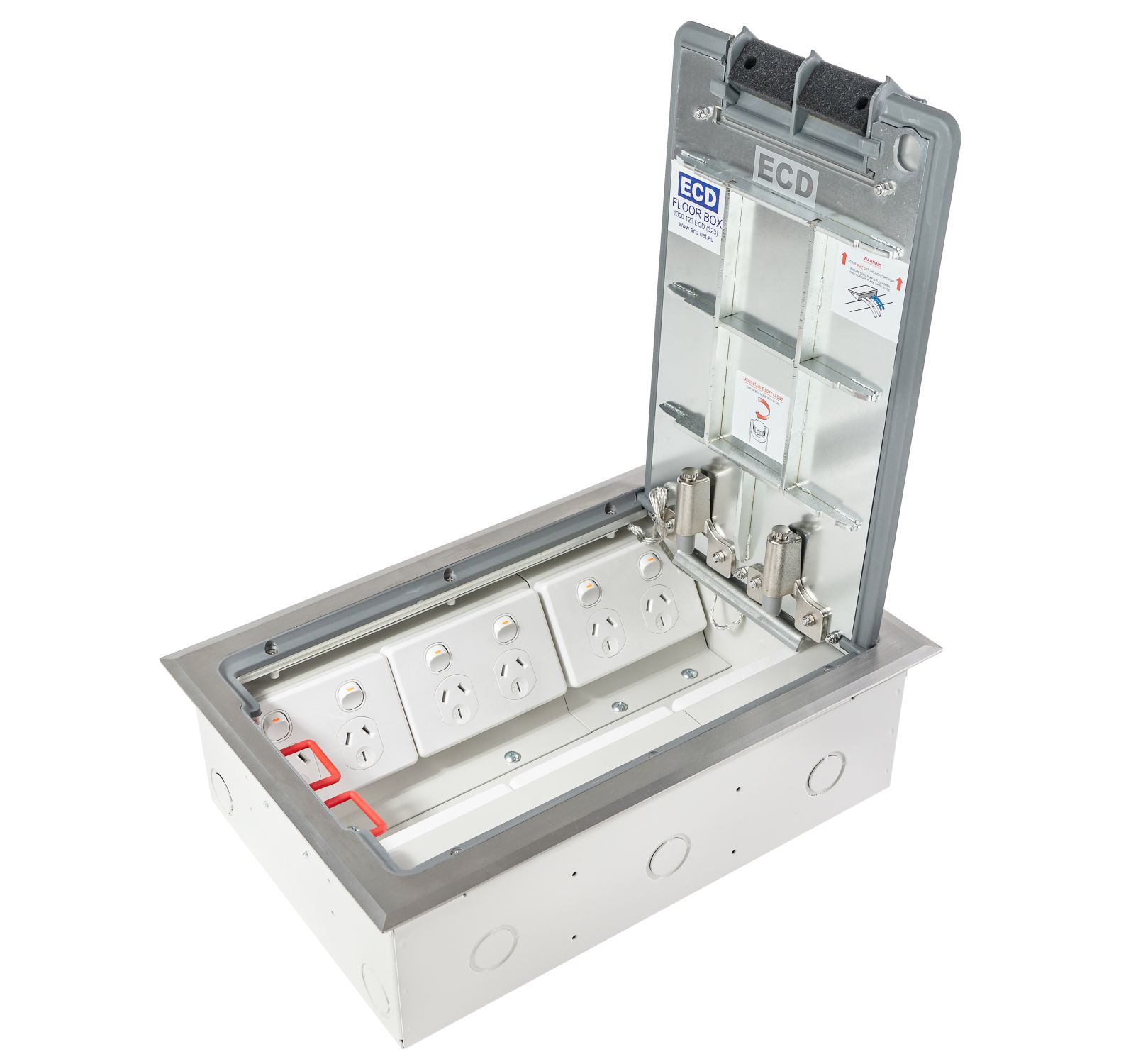

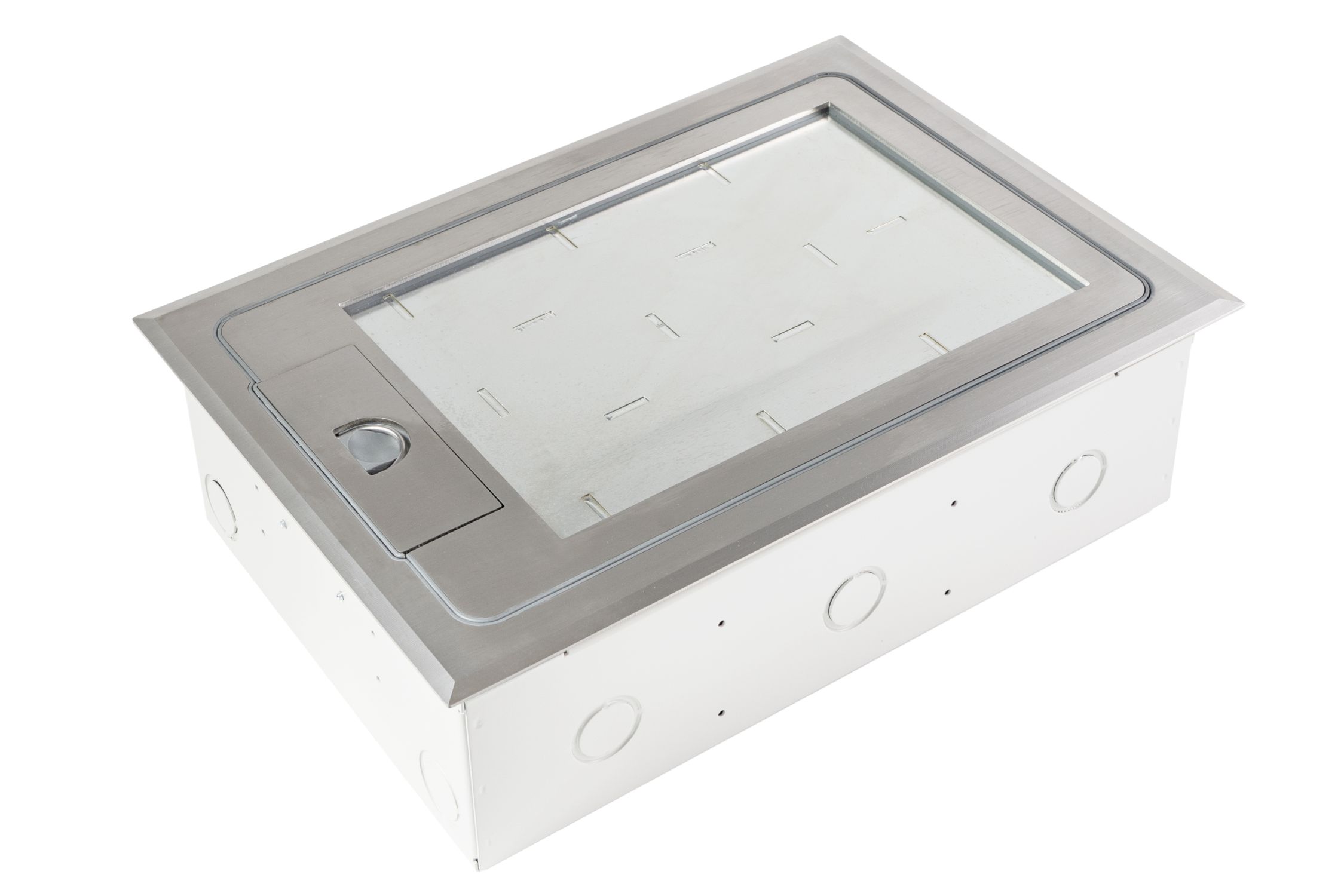

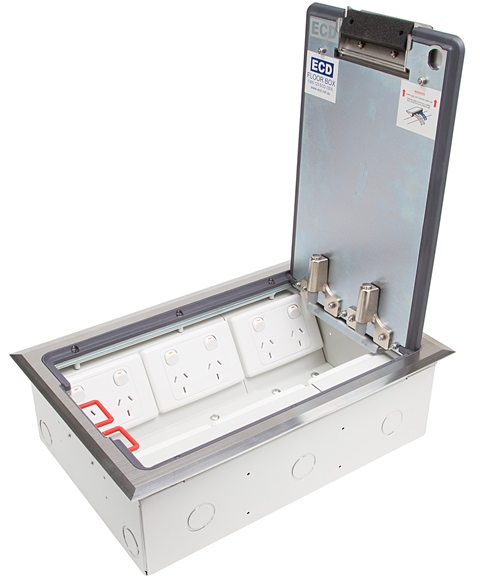

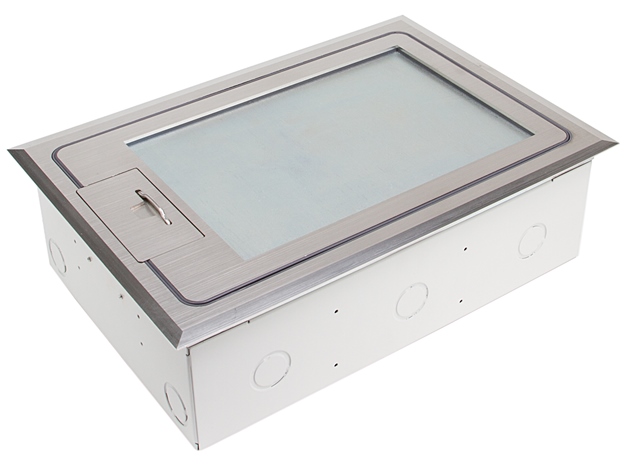

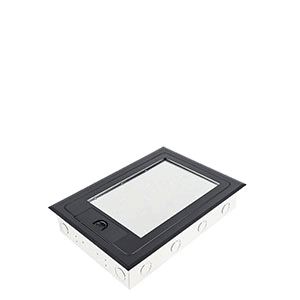

PROTECTOR™ SERIES Flush Floor Box - Recessed Stainless Steel



6 standard sized plates

Box Size:

360 x 240 x 110mm Deep


Cable Shield™ Frame

Lid Material:

Stainless 304 – No. 4 Linished


6mm Deep

Suitable for:

Cat. 6A & 7A Cabling

Key Features

  • Recessed “Protector” Series Stainless Steel
    Lid and Frame with 6mm rebate for floor finish
    (typically carpet or vinyl).
  • ‘Protector’ Series features
  • Cable Shield™ Frame assembly to prevent
    cables being cut (Patent Pending)
  • Soft close lid to stop lid from slamming shut
  • Cable retainer for easy cable management
  • Robust and large capacity cable exit flap with retracing lifting handle.
  • Capacity for 6 standard outlet plates (3 x double
    power & 3 x Data and/or A.V.).
  • Suitable for category 6A and 7A data cabling with
    generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA,
    HDMI, USB, etc.
  • 304 Grade Solid Stainless Steel with No. 4 linished
  • Modular box body and lid design, interchangeable
    with plastic and other lids in the ECD floor box range.
  • Supplied with temporary construction lid.
  • Option to fit cam lock if required.
