COMMANDER™ SERIES Flush Floor Box Recessed Plastic
CAT NO. FB6P70 (Plastic, Shallow 70mm)
| Capacity: | 8 x single auto switch power |
| Box Size: | 360 x 240 x 70mm deep |
| Lid Material: | Moulded Polyamide-Grey |
| Lid Recess: | 7mm deep |
| Suitable for: | Cat6A & 7A Cabling |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features
- Moulded Polyamide lid and frame with 7mm rebate for floor finish (typically carpet or vinyl).
- Capacity for 8 x single auto switch power outlets (supplied pre-wired) and 8 x data (bezels supplied).
- Robust and large capacity cable exit flap with retracing lifting handle.
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- Standard colour Grey (RAL 7011 – Iron Grey). Other colours available to order (minimum quantities and charges may apply)
- Modular box body and lid design, interchangeable with stainless steel and other lids in the ECD® floor box range.

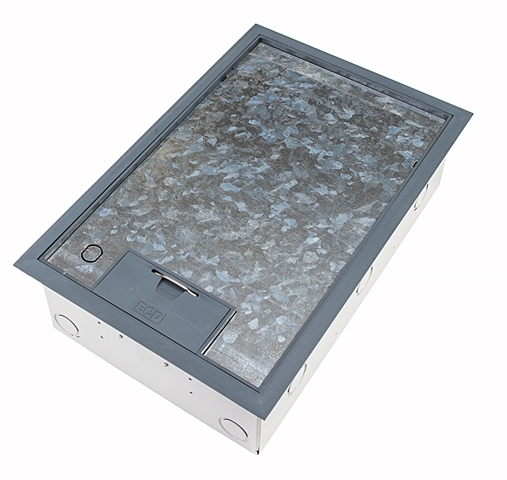

- Supplied with temporary construction lid.
- Option to fit cam lock if required.
* Click images to enlarge
