PROTECTOR™ SERIES Flush Floor Box - Recessed, Black
CAT NO. FB4SRBK (Black, Recessed)
| Capacity: | 4 standard sized plates |
| Box Size: | 240 x 240 x 110mm deep |
| Features: | • Cable Shield® Frame |
| Lid Material: | Stainless Steel – black plated |
| Lid Rebate: | 6mm deep |
| Suitable for: | Cat6A & 7A Cabling |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features

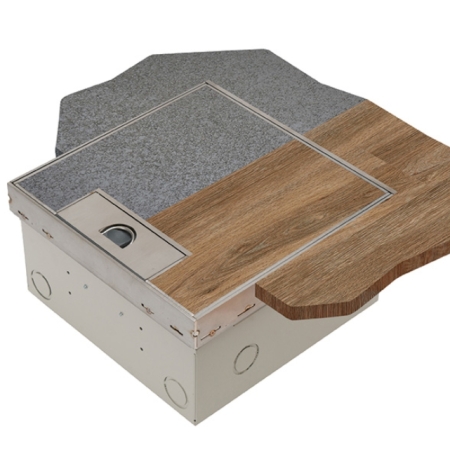

- Recessed Protector™ Series black plated stainless steel lid and frame with 6mm rebate for floor finish (typically carpet or vinyl).
- Protector™ Series features
- Cable Shield® Frame assembly to prevent cables being cut. (Patent Certified 2017100897 & Patent Pending 2015204344)
- Soft close lid to stop lid from slamming shut
- Cable retainer for easy cable management
- Robust and large capacity cable exit flap with black (stainless steel) lifting handle.
- Capacity for 4 standard outlet plates.(2 x double power & 2 x Data and/or A.V.)
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade solid stainless steel (black plated) with No. 4 Linished finish to meet P1 requirements for slip resistance in public spaces (dry areas).
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- Option for factory fitted cam lock if required.
* Click images to enlarge
