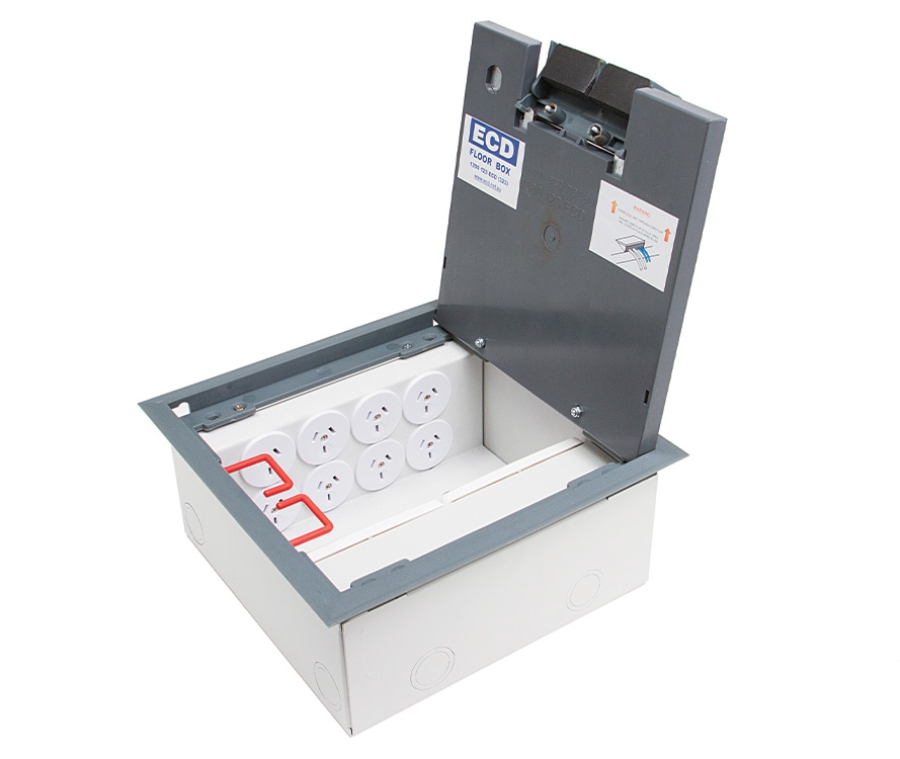

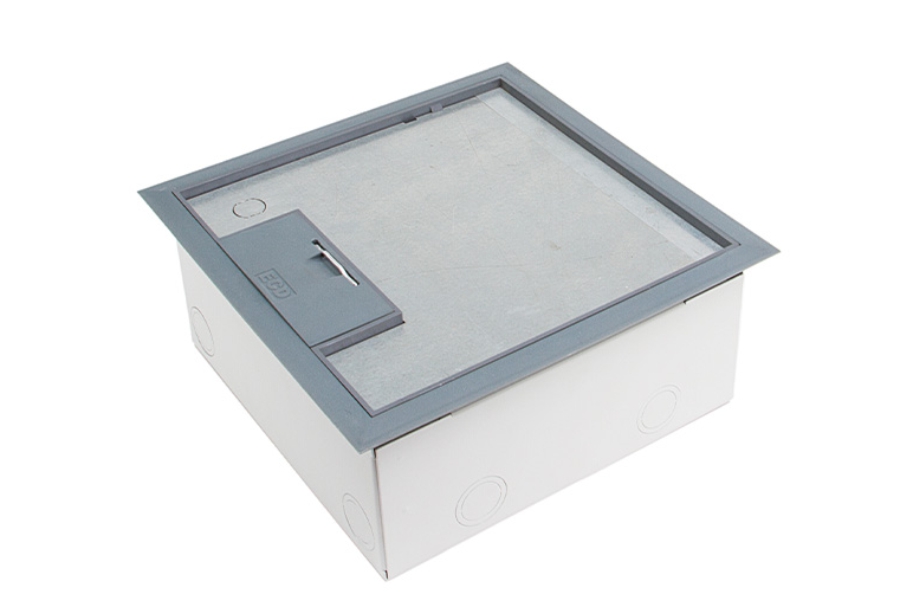

COMMANDER™ SERIES Flush Floor Box - Recessed Plastic
CAT NO. FB4P8P (Plastic, Recessed)
| Capacity: | 8 x auto switch G.P.O.’s and |
| Box Size: | 240 x 240 x 110mm Deep |
| Lid Material: | Moulded Polyamide – Grey |
| Lid Recess: | 7mm Deep |
| Suitable for: | Cat. 6A & 7A Cabling |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features
- Moulded polyamide lid and frame with 7mm rebate for floor finish (typically carpet or vinyl).
- Capacity for 8 auto switch power outlets (supplied pre-wired) and 2 standarddData plates (8 x power and 2 x Data and/or A.V.).
- Robust and large capacity cable exit flap with retracing lifting handle.
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio/Video outlets including VGA, HDMI, USB, etc.
- Rebate in lid (7mm) for floor finish. Typically carpet or vinyl.
- Standard colour Grey (RAL 7011 – Iron Grey).
Other colours available to order (minimum quantities and charges may apply). - Modular box body and lid design interchangeable with stainless steel and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required.
