COMMANDER™ SERIES Flush Floor Box
CAT NO. FB4P60 (Extra Shallow)
| Capacity: | 4 x single auto switch power |
| Box Size: | 240 x 240 x 60mm deep |
| Lid Material: | Moulded Polyamide – Grey |
| Lid Recess: | 7mm deep |
| Suitable for: | Cat6A & 7A Cabling |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features
- Moulded polyamide lid and frame with 7mm rebate for floor finish (typically carpet or vinyl).
- Capacity for 4 x single auto switch power outlets (supplied pre-wired) and 6 x data (bezels supplied).
- Robust and large capacity cable exit flap with retracing lifting handle.
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- Standard colour Grey (RAL 7011 – Iron Grey).
Other colours available to order (minimum quantities and charges may apply). - Modular box body and lid design, interchangeable with stainless steel and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- Option to fit cam lock if required.

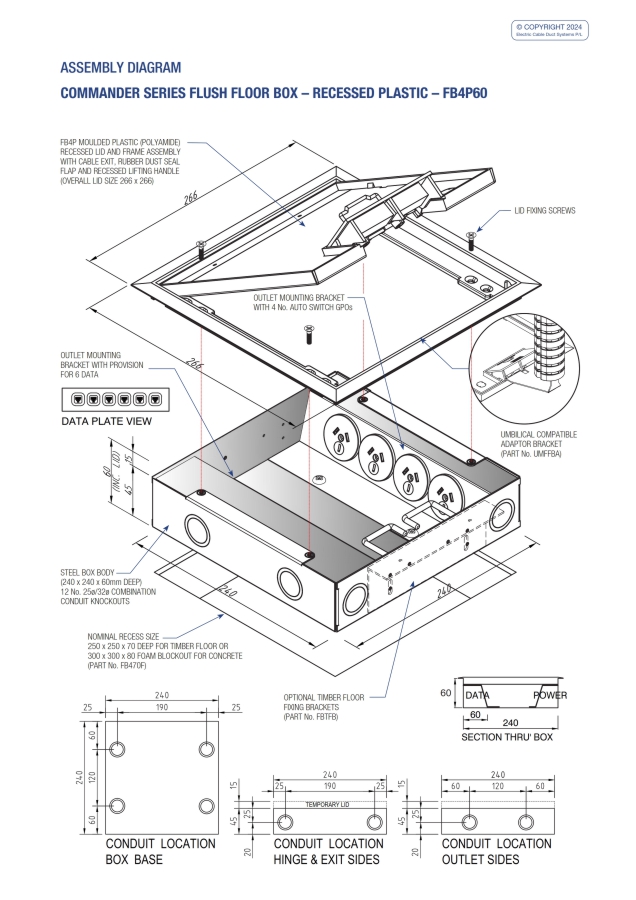

* Click images to enlarge
