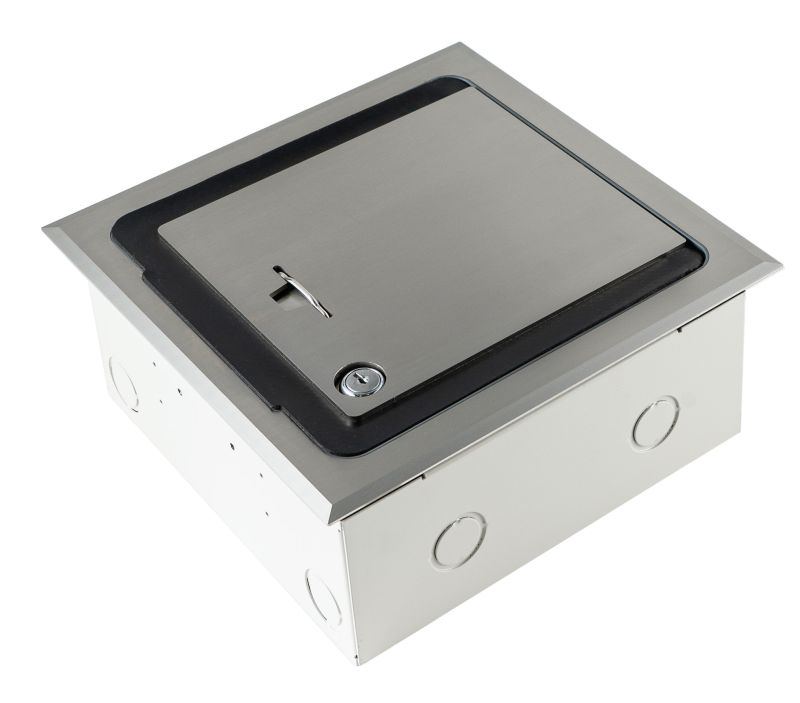

PROTECTOR™ SERIES Flush Floor Box - Flush, Stainless Steel

CAT NO. FB4MUCL8P

Capacity:

8 x auto switch G.P.Os and
2 x standard sized plates

Box Size:

240 x 240 x 110 mm Deep

Features:

Rubber exit flap to all 3 sides and cam lock

Lid Material:

Stainless 304 – No. 4 Linished

Suitable for:

Cat6A & 7A Cabling

Key Features

  • A lockable floor box supplied with cam lock fitted. Cam locks can be keyed alike to key number 92268 or randomly keyed.
  • Flush Protector™ Series 304 grade Stainless Steel lid and frame with No. 4 Linished finish.
  • Protector™ Series features;
    • Cable Shield® Frame assembly to prevent cables being cut – lid frame only. (Patent Certified 2017100897 & Patent Pending 2015204344)
    • Soft close lid to stop lid from slamming shut.
  • Rubber cable exit flaps to all three sides enables cables to safely exit the lid at any point.
  • Capacity for 8 x auto switch GPOs (supplied) and 2 x standard sized data plates.
  • Suitable for category 6A and 7A data cabling with generous bend radius capacity.
  • Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
  • Supplied with temporary construction lid.
