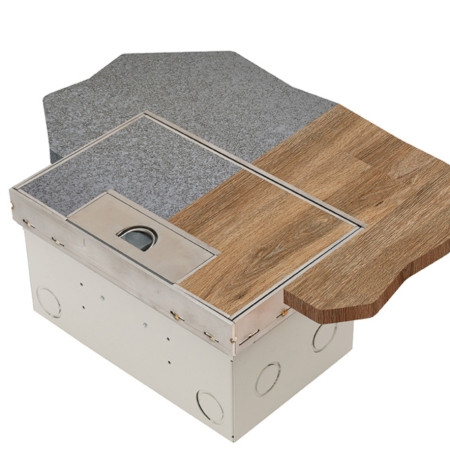

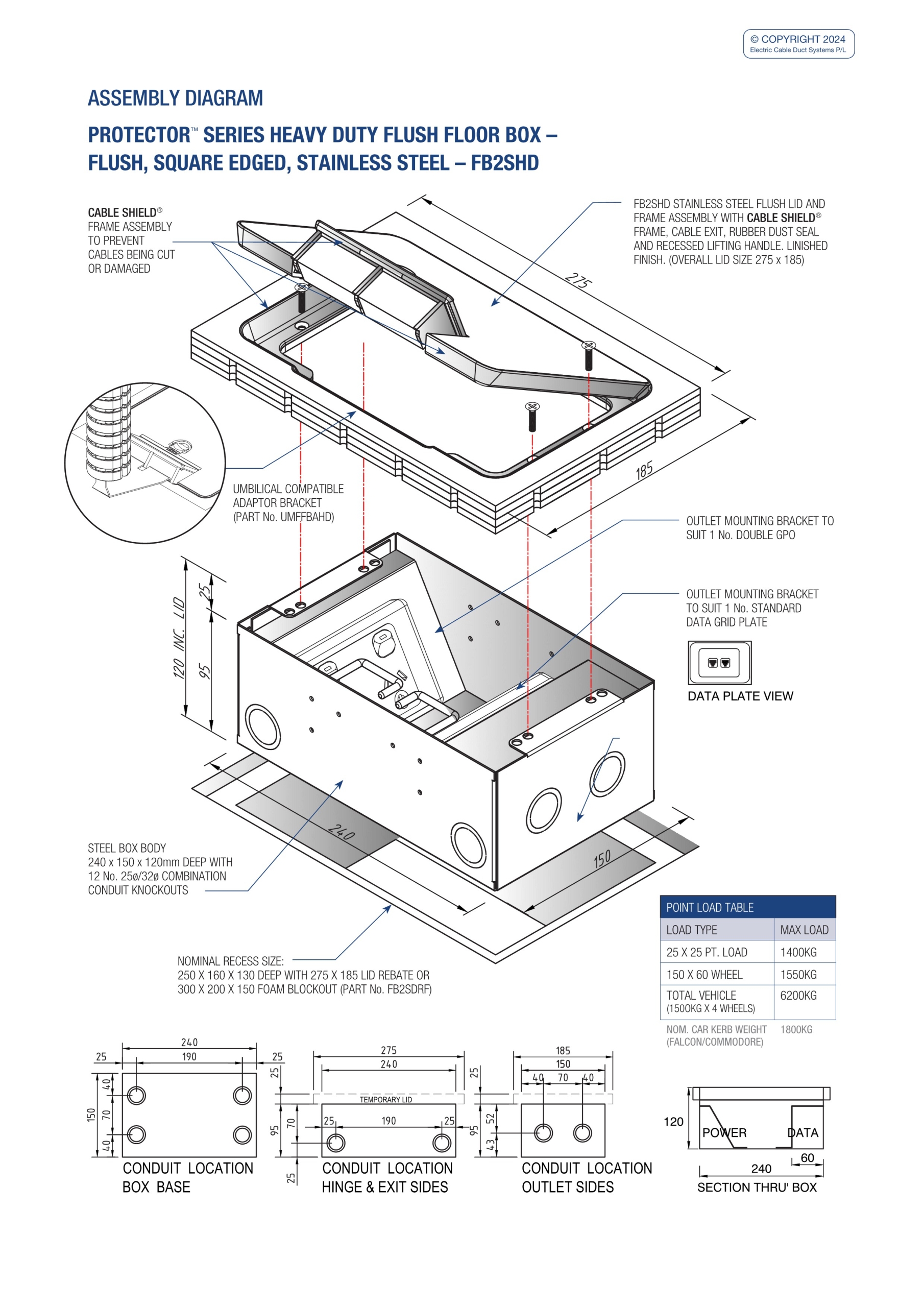

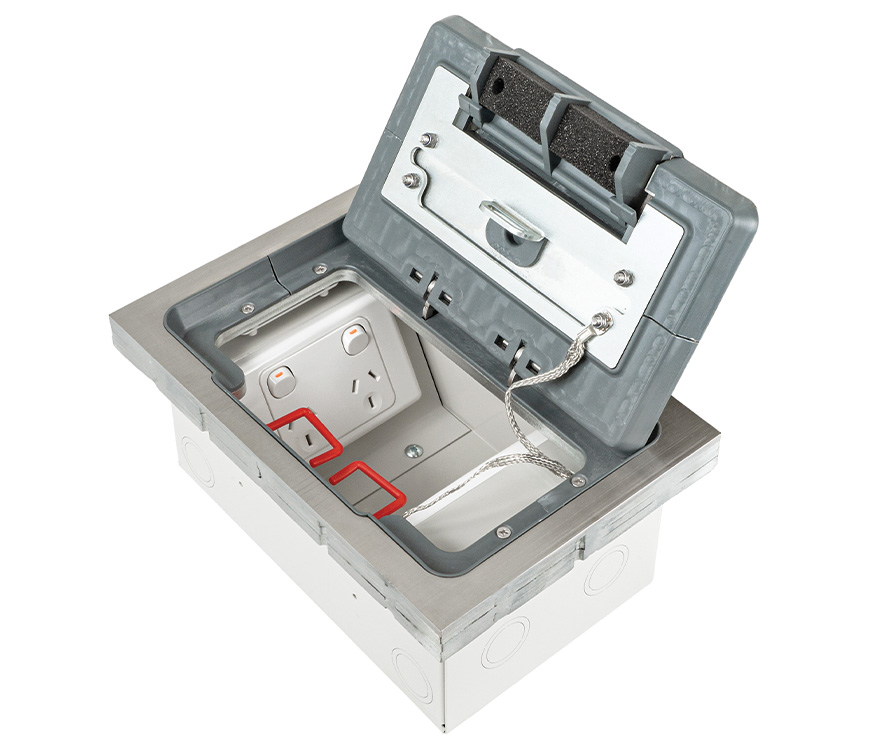

PROTECTOR™ SERIES HEAVY DUTY Flush Floor Box, Flush, Square Edged, Stainless Steel
CAT NO. FB2SHD (Heavy Duty-Cars)
| Capacity: | 2 x standard sized plates |
| Box Size: | 275 x 185 x 120mm deep |
| Features: | Cable Shield® Frame |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Suitable for: | Cat6A & 7A Cabling |
| Load Rating: | Suitable for vehicle traffic – |
Key Features
- Heavy duty – load rated floor box suitable for vehicular traffic.
- Ideal for car showrooms and shopping centres.
- Flush Protector™ Series Stainless Steel lid and frame with No. 4 Linished finish.
- Protector™ Series features
- Cable Shield® Frame assembly to prevent cables being cut. (Patent Certified 2017100897 & Patent Pending 2015204344)
- Cable retainer for easy cable management.
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish (typically timber, tiles or vinyl).
- Robust and large capacity cable exit flap with retracing lifting handle.
- Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.).
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade solid stainless steel with No. 4 Linished finish to meet P1 requirements for slip resistance in public spaces (dry areas).
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- This product has been examined in accordance with AS 3000 and conforms to A.C.M.A. requirements.
