PROTECTOR™ SERIES Flush Floor Box - Recessed, Stainless Steel
CAT NO. FB2SR (S/Steel, Recessed)
| Capacity: | 2 standard sized plates |
| Box Size: | 240 x 150 x 110mm Deep |
| Features: | • Cable Shield® Frame |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Lid Rebate: | 6mm deep |
| Suitable for: | Cat6A & 7A Cabling |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features
- Recessed Protector™ Series Stainless Steel Lid and Frame with No. 4 Linished Finish.
- Protector™ Series features
- Cable Shield® Frame assembly to prevent cables being cut (Patent Pending)
- Soft close lid to stop lid from slamming shut
- Cable retainer for easy cable management
- Robust and large capacity cable exit flap with retracing lifting handle.

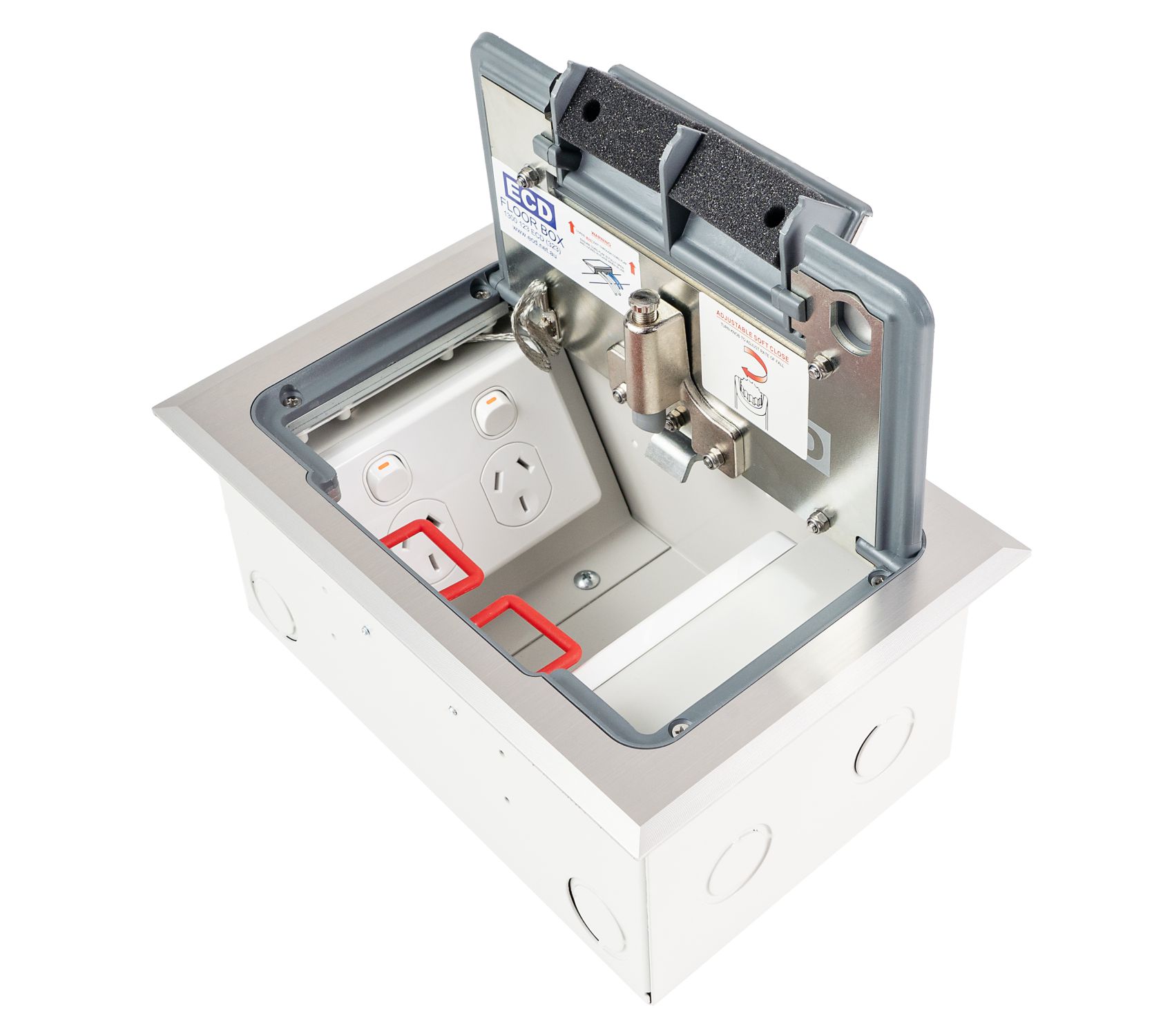

- Capacity for 2 standard outlet plates (1 x double power & 1 x Data and/or A.V.)
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.
- 304 Grade Solid Stainless Steel.
- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- Option for factory fitted cam lock if required.
