Flush Floor Box - Deep Recessed Stainless Steel
CAT NO. FB2SDR70 (S/Steel, Deep Recess)
| Capacity: | 2 x single auto switched power outlets |
| Box Size: | 250 x 160 x 93mm deep |
| Lid Material: | Stainless 304 – No. 4 Linished |
| Lid Recess: | 20mm Deep |
| Suitable for: | Cat6A and Cat7A Cabling |
| Load Rating: | 120kg (per foot = foot traffic) |
Key Features

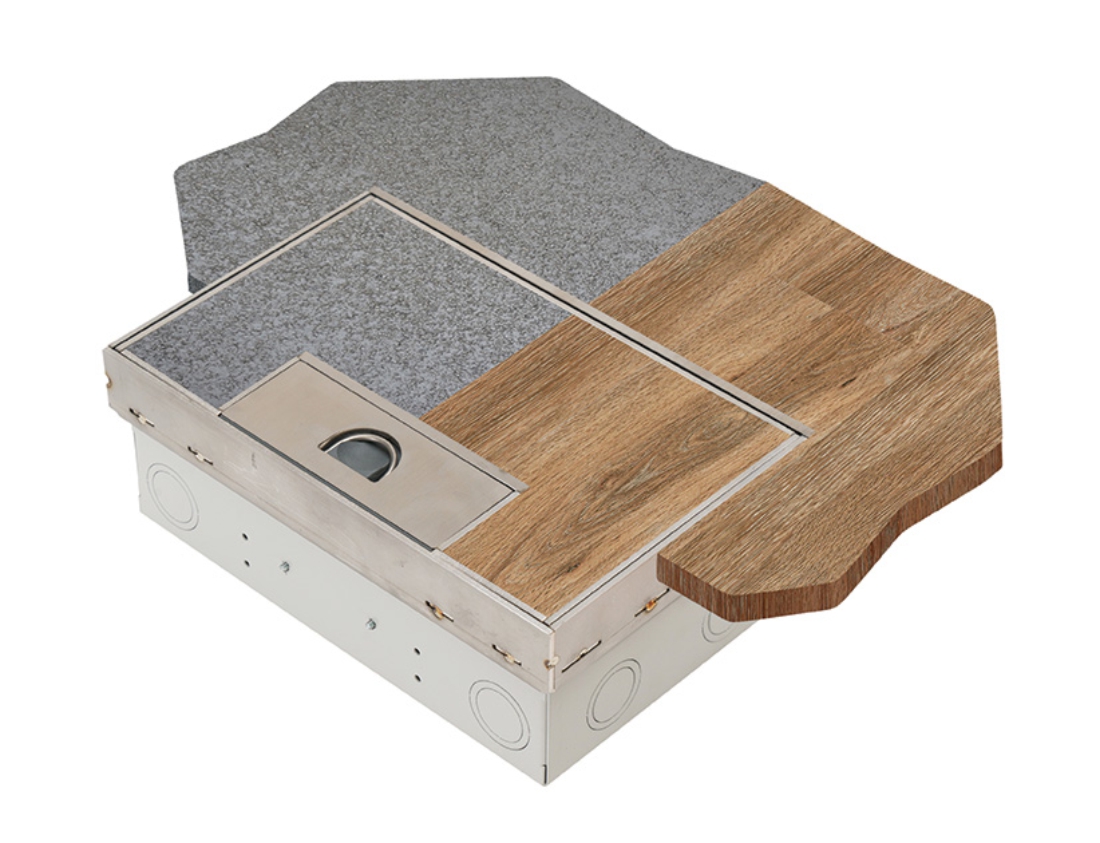

- Recessed Stainless Steel Lid and Frame with 20mm rebate for floor finish (typically polished timber boards or ceramic tiles).
- 304 Grade solid Stainless Steel lid construction with No. 4 Linished finish.
- Adjustable Soft Closer to control lid closure – suits floor finish infills up to 2kg (eg. timber packer & carpet, full timber, ceramic tile or stone).
- Frame has square edges (not bevelled) to allow flush fitting to adjacent floor finish.
- Height adjustable lid and frame.
- Robust, large capacity cable exit flap with Cable Shield® and stainless lifting handle.
- Option to fit cam lock if required.

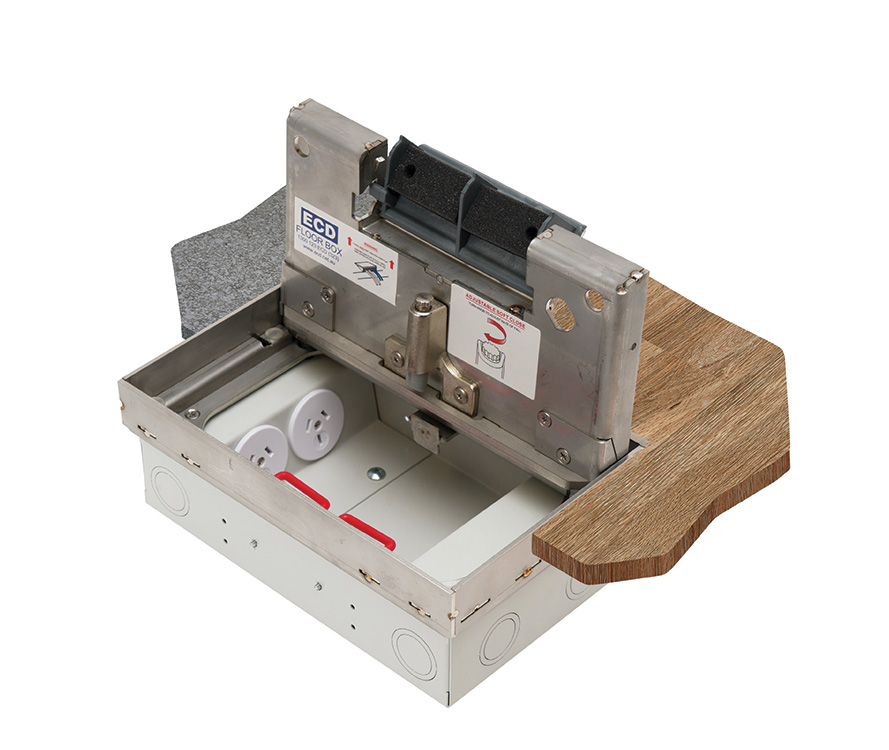

- Capacity for 2 x single auto switched power outlets (supplied) and 3 x data mounts.
- Suitable for category 6A and 7A data cabling with generous bend radius capacity.
- Suitable for Audio / Video outlets including VGA, HDMI, USB, etc.

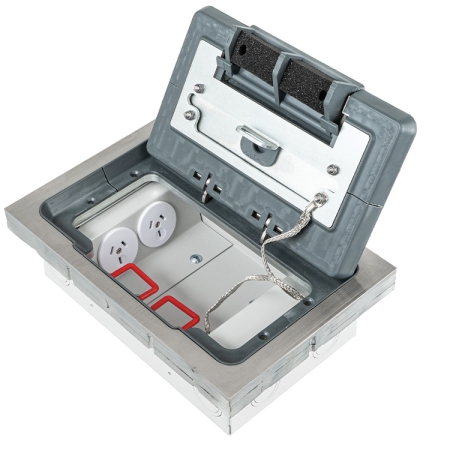

- Modular box body and lid design, interchangeable with plastic and other lids in the ECD® floor box range.
- Supplied with temporary construction lid.
- Option for factory fitted cam lock if required.
